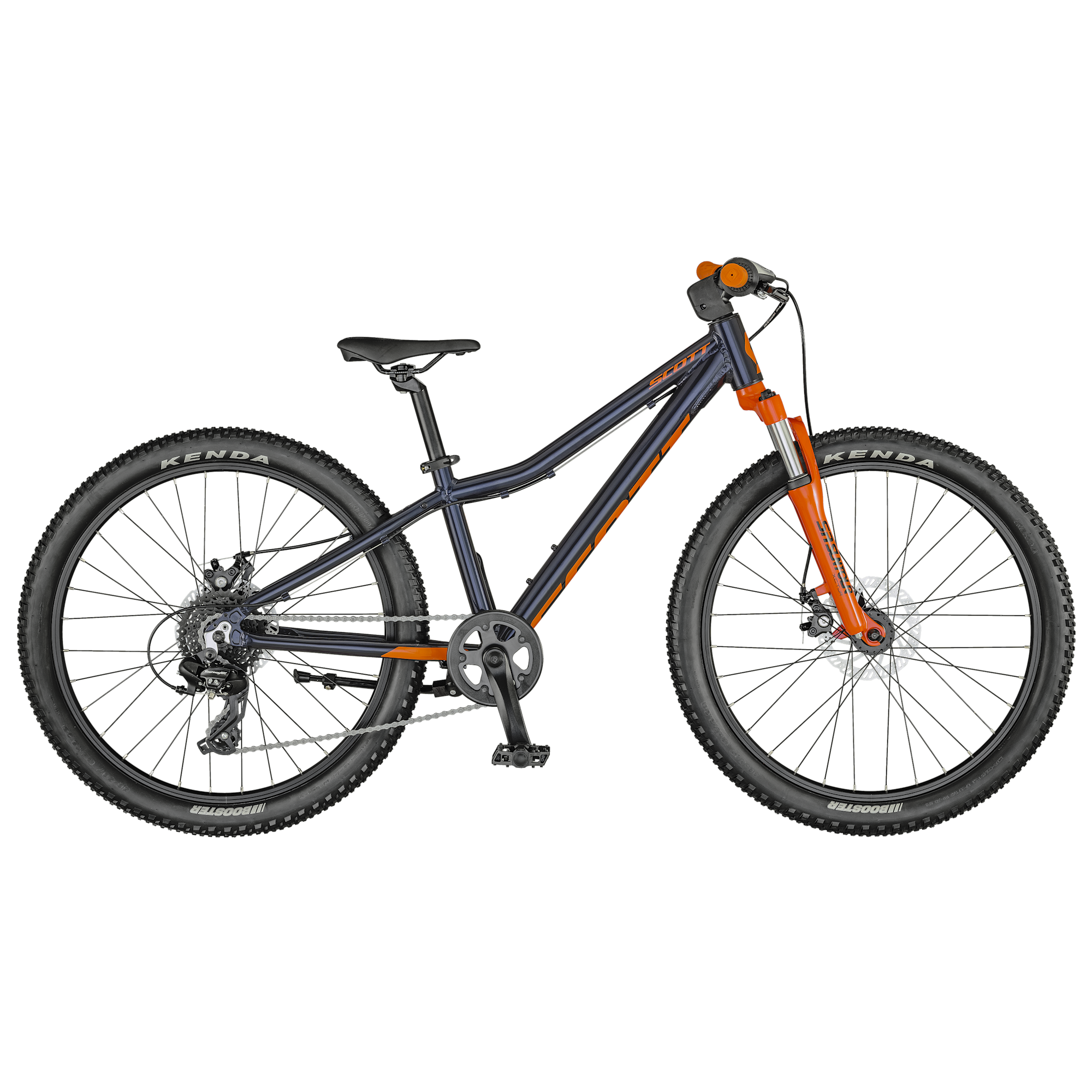

SCOTT Scale 24 disc cobalt blue Bike
Model : 280873
Key Features
- Scale 24 Disc Junior Alloy Frame
- SR Suntour XCT-JR 24 Disc Fork
- Shimano Tourney 8 Speed
- Tektro Disc Brakes
- Kenda Booster
1. Size
SPECIFICATIONS
- The SCOTT Scale 24 Disc is our truly functional bike for smaller riders who like to race. With suspension and disc brakes this bike is made for racers.
-
Frame
Scale 24 Disc Junior
Alloy 6061 / Semi int. HT
SCOTT dropout / IS -
Fork
SR Suntour XCT-JR 24 Disc
50mm travel
Softer spring setup -
Rear Derailleur
Shimano RD-TX800 Tourney
8 Speed -
Shifters
Shimano SL-RS45-8R
Revo Shifter
-
Crankset
Prowheel / Alloy Crank 140mm
32T / w/CG PVG double cover -
BB-Set
Feimin / BB68 / cartridge / square taper -
Chain
KMC Z8.3 -
Cassette
SunRace CSM55
8 Speed / 11-34T -
Brake Levers
Lee-Chi BL-81/BL-81G -
Brakes
Tektro SCM-02
Mech. Disc Brake / 160mm rotor -
Handlebar
Junior Flat-Bar Alloy
560mm / Syncros Youth 100/80 Grip -
H'stem
LEADTEC LCS-7130
50mm / 25.4mm clamp -
Seatpost
Alloy 26.8x300mm -
Seat
Syncros Future Pro -
Headset
Feimin FP-H807, 1 1/8" Semi Int. -
Hub (Front)
Formula DC-19-F / QR -
Hub (Rear)
Formula DC-25-8-R / QR -
Spokes
15G / UCP / black -
Rims
Alex C-1000 Disc -
Front Tire
Kenda K1227 Booster / 24x2.2" / 30TPI -
Rear Tire
Kenda K1227 Booster / 24x2.2" / 30TPI -
Pedals
MARWI SP-700 / w/Reflector -
Extras
Kickstand -
Accessories
Syncros Stem Protector -
Approx weight in KG
12 -
Approx weight in LBS
26.46 -
Max. System Weight
50 kg
The overall weight includes the bike
the rider
the equipment
and possible additional luggage.
