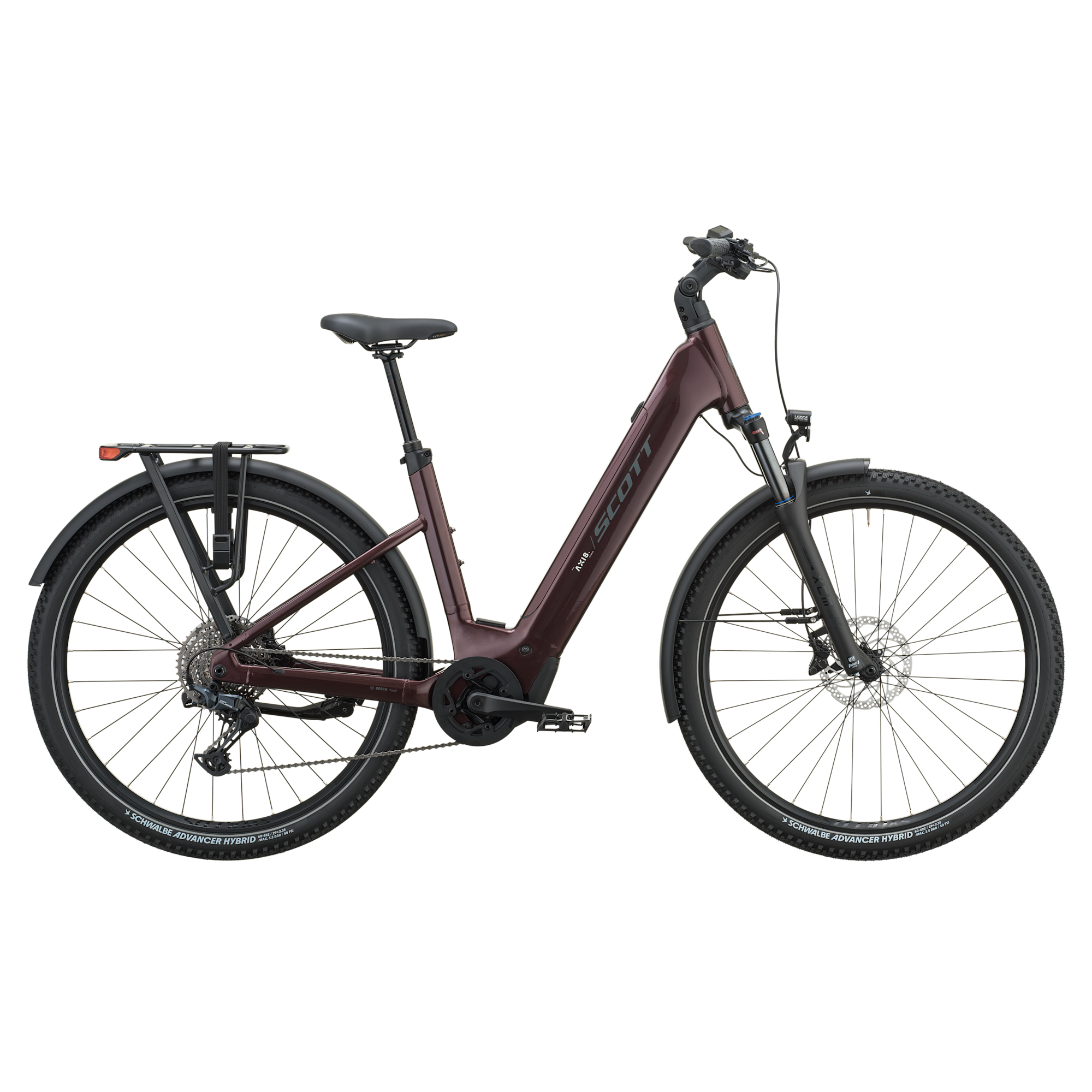

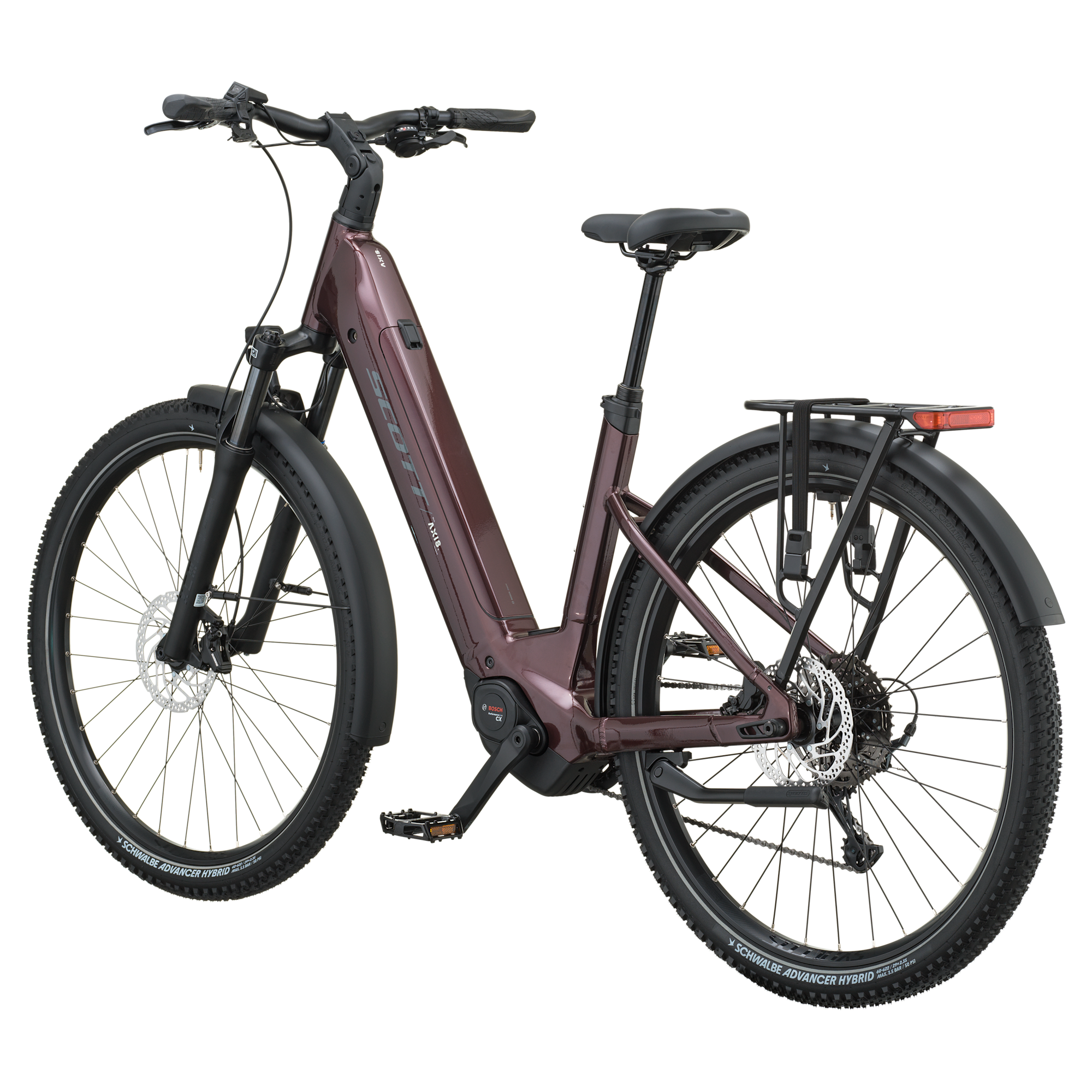

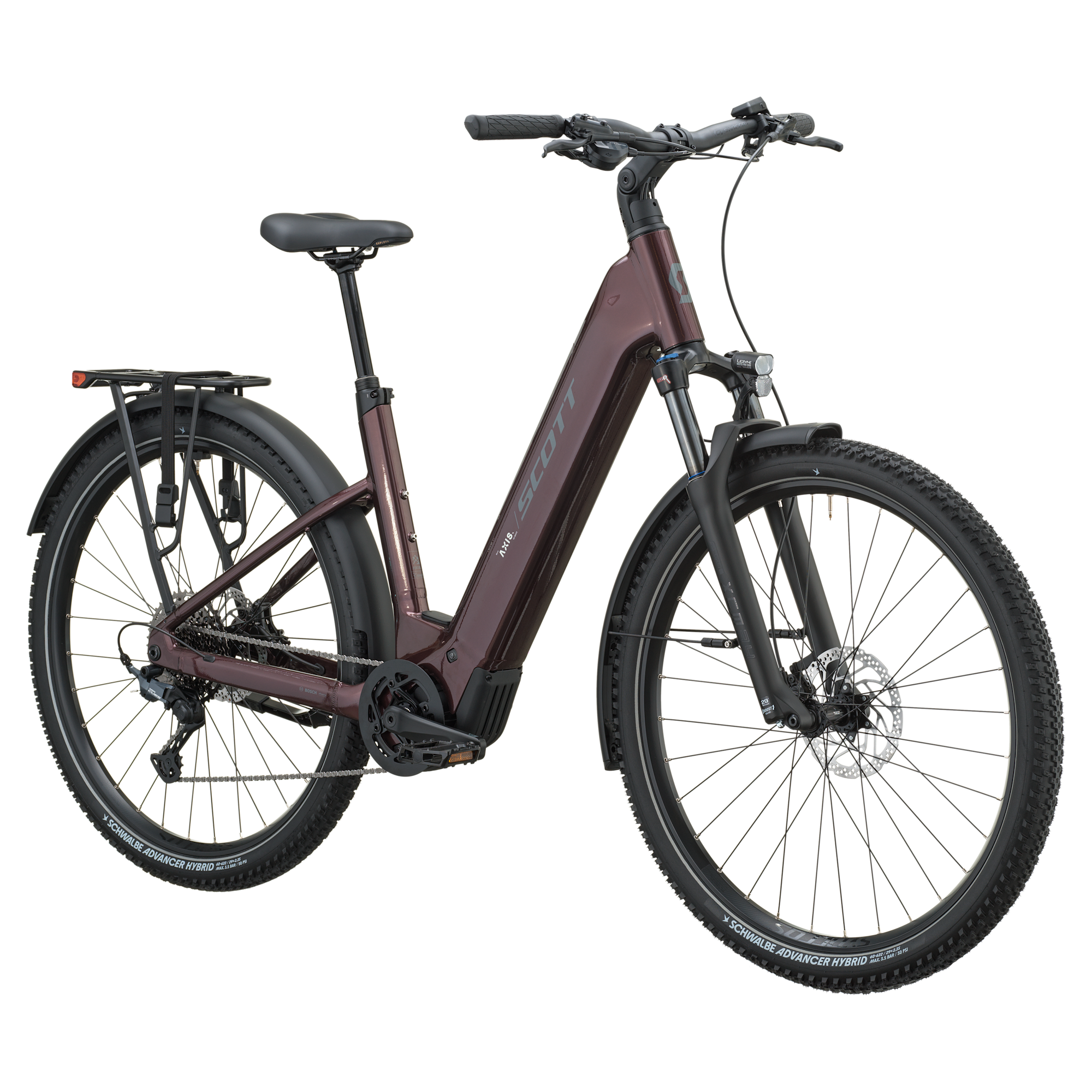

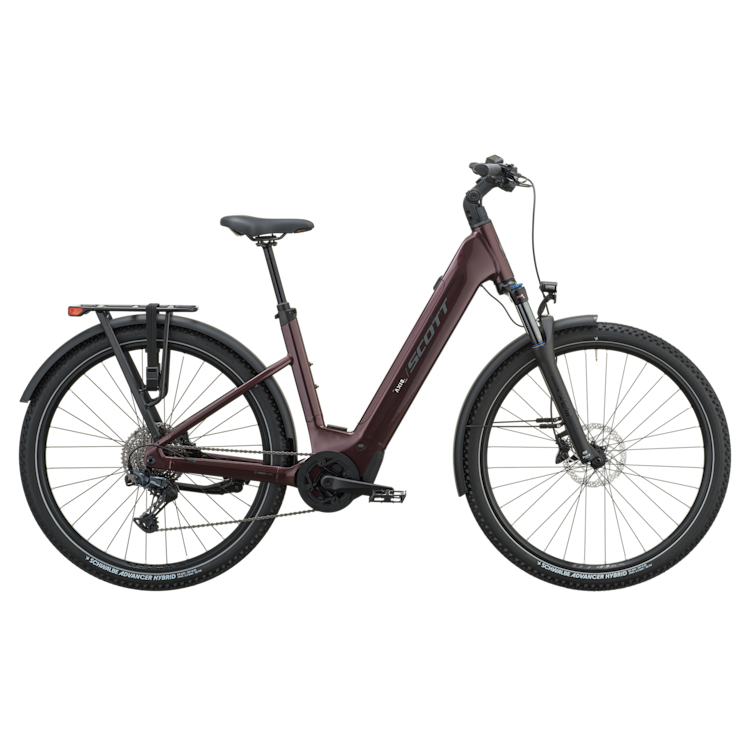

SCOTT Axis 10 Wave Bike

SCOTT Axis 10 Wave Bike

Model : 427654

Key Features

Versatile All-Terrain E-Bike
Enjoy the climb and descent with 120mm front suspension and Schwalbe's durable Advancer tires
Ready for any adventure: Power up hills with the Bosch Performance Line CX motor (up to 100Nm)
Ride all day with the generous and removable Bosch 800Wh Battery and add a Bosch Range Extender for even longer journeys
Easily set up your riding position with an adjustable stem, dropper seat post and phone integration on the handlebars (SP Connect)
Carry picnics, warm layers or little ones - the Racktime rear carrier is SNAPIT 2.0, KID'nCARRY ready (30kg capacity) and a trailer can be attached on the rear axle
Power forward when it counts ( Shimano 11 speed derailleur) and stop with confidence when you need to (Shimano disc brakes)
Dusk doesn't have to stop you - see your way and be seen by others with front and rear lights

1. Color : aubergine red

2. Size

Size chart

Available

In Stock

4 199,00 €

Delivery within 2-3 working days after order placed

Free shipping on orders above € 99

Free return within 14 days

SPECIFICATIONS

The perfect bridge between urban cruising and mountain biking. The SCOTT Axis 10 Wave is designed for versatility: a Bosch Performance CX motor paired with a removable 800Wh battery, delivering the power you need for weekend adventures, while an integrated SP connection on the stem lets you attach and secure your phone in seconds, so it's always with you—directions always in view.

Want to find your perfect fit? The stem is fully adjustable for a relaxed riding position or a sporty position to get up to speed.

Traveling with the family or hauling extra gear? The rack is compatible with Racktime SNAPIT 2.0, KID'n’CARRY systems and supports 30kg, while the Syncros Thru-Axle supports towing a cargo trailer. Bring your child, dogs, or any cargo you'd like. The front fork light position allows room for a front basket giving you illumination without sacrificing utility.

Choose between two sleek frame shapes, where the Axis 10 Wave style offers a lower standover height for effortless mounting and remounting. Each frame style maintains Axis' signature ride and handling. Ride Axis.

Please note that bike specifications are subject to change without prior notice.

condition of usage 3

Example Cross country and marathon
Please check the detail for more information
Frame

Alloy S-XL=29", 6061 Alloy custom butted tubing, Top extraction battery, UDH Interface, 12x148mm with 52mm Chainline
Travel

120mm

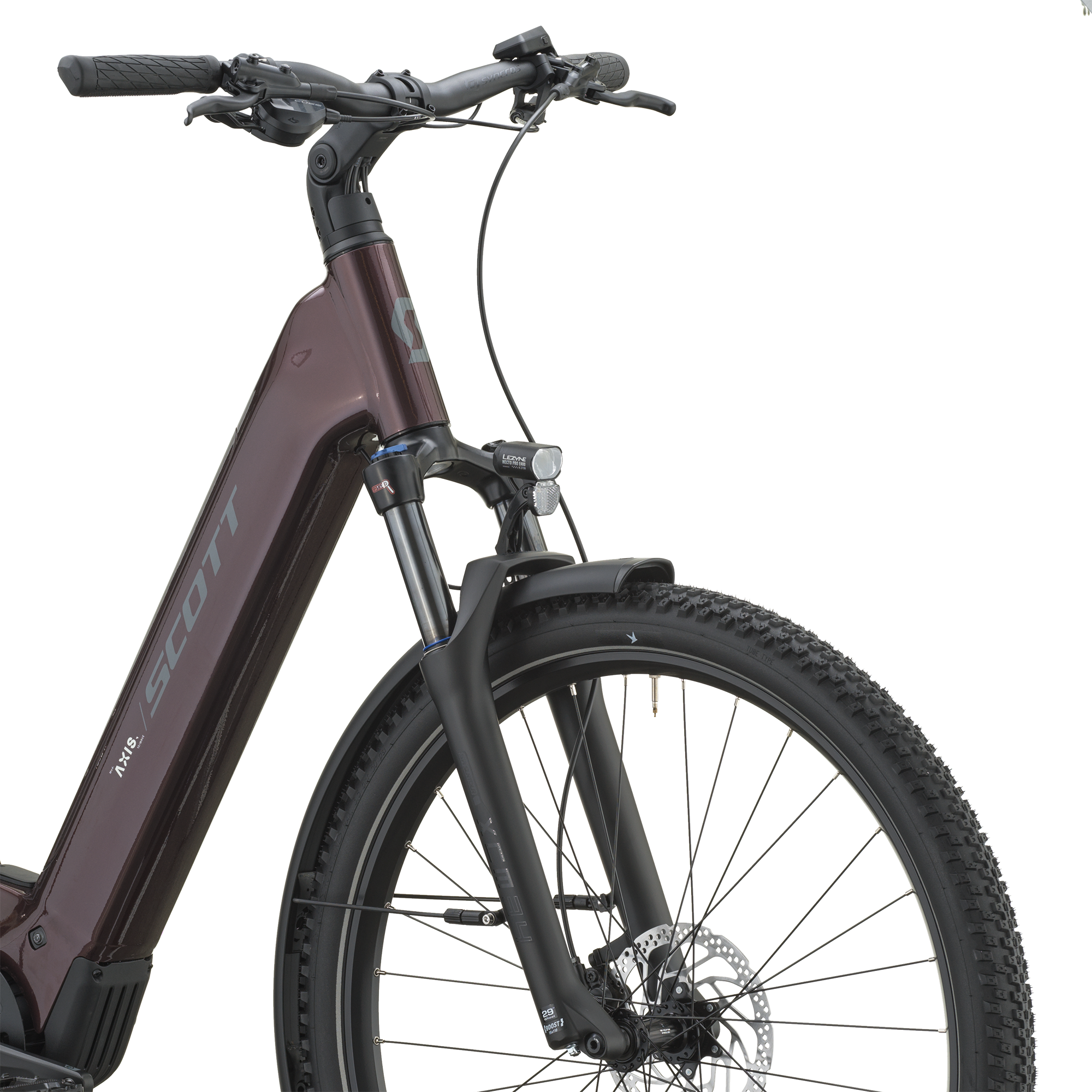

Fork

SR Suntour XCM34 BOOST AIR LO
Drive Unit

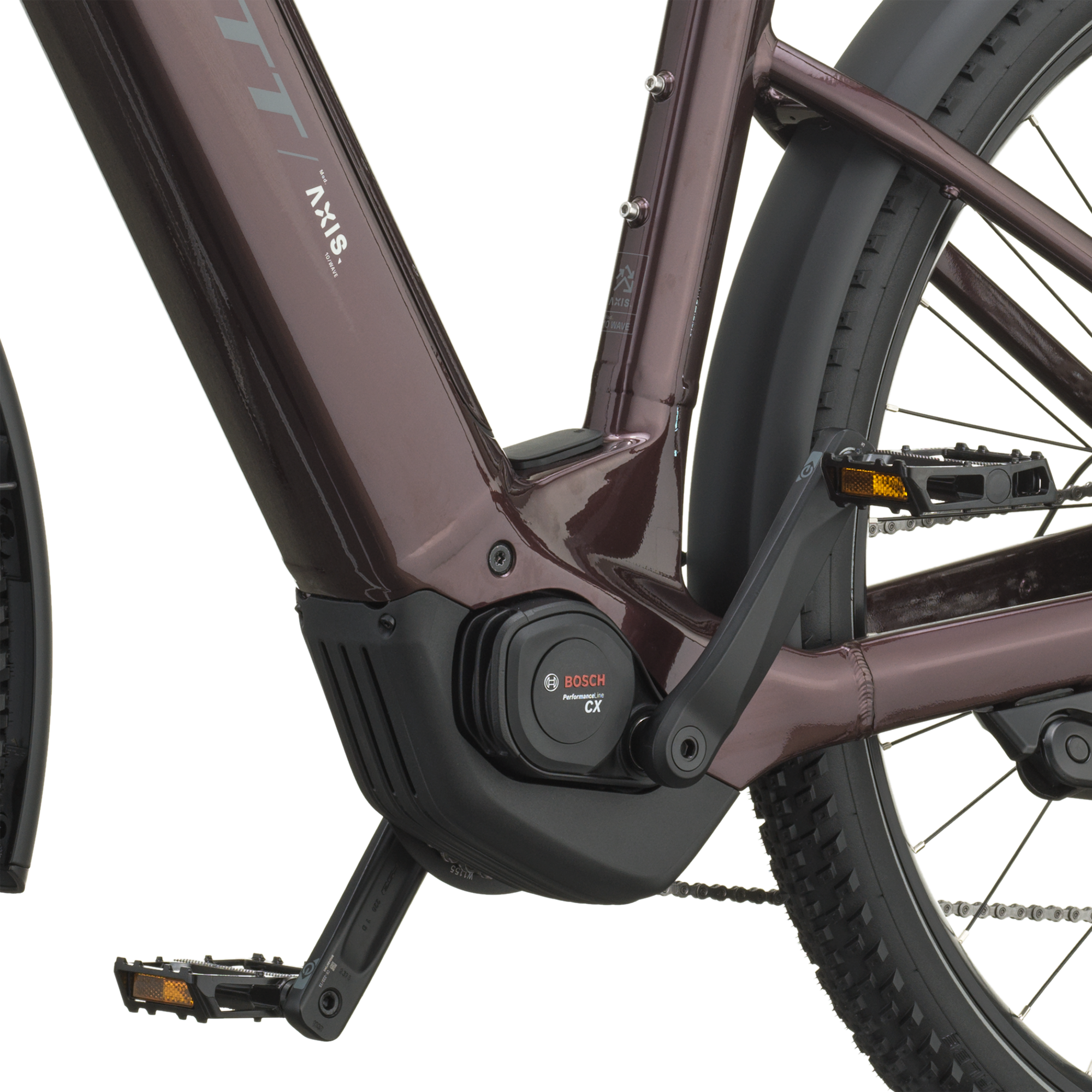

Bosch Performance Line CX (BDU384Y)

Battery

Bosch PowerTube 800Wh
Display

Bosch Purion 200
Charger

Bosch 4A Charger 230V

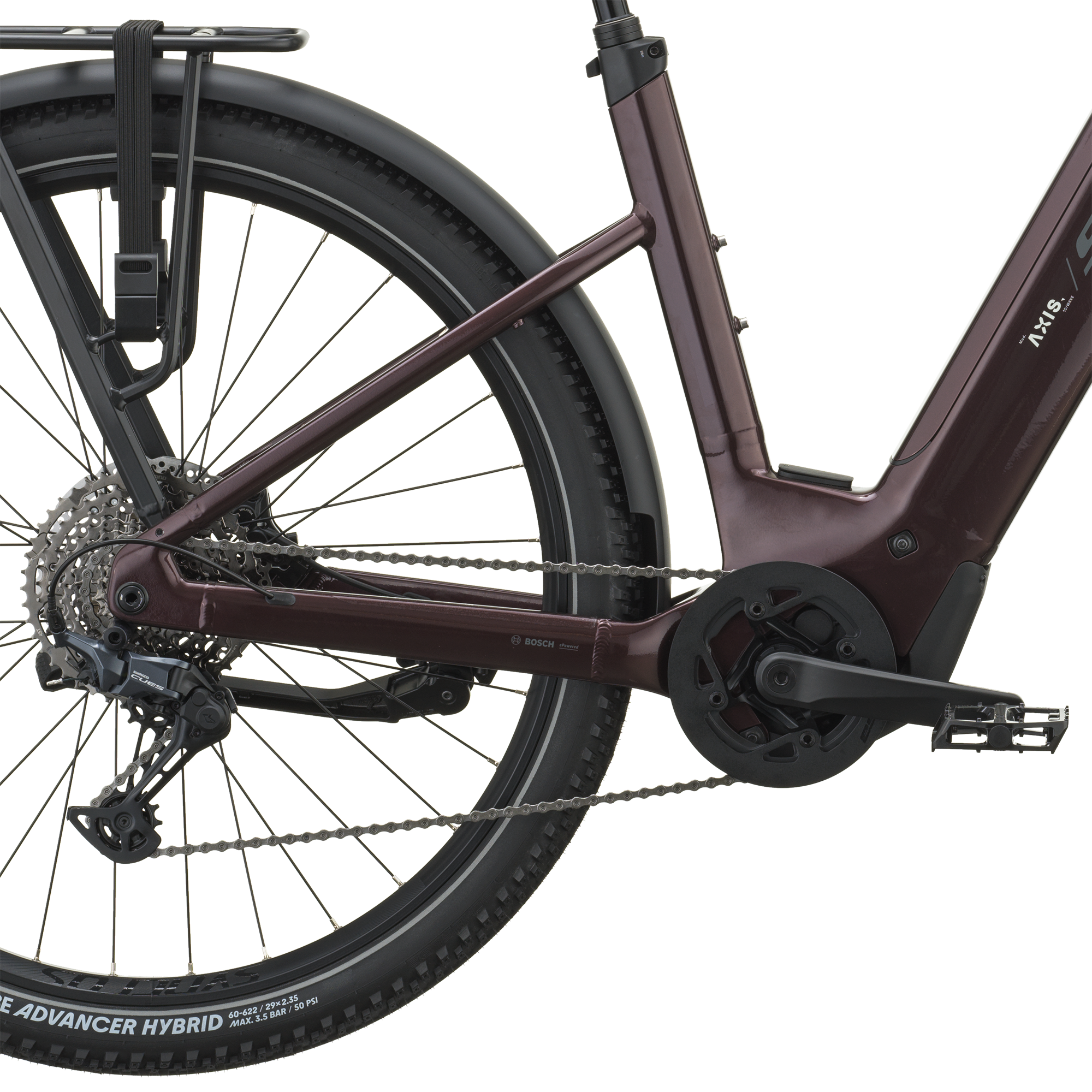

Rear Derailleur

Shimano Cues RD-U8000 11-Speed
Shifters

Shimano Cues SL-U6000-11
Crankset

FSA CK 220 165mm
Chainring

FSA 36T with Chain Guard
Chain

Shimano CN-LG500
Cassette

Shimano Cues CS-LG400, 11-Speed 11-45T
Brakes

Shimano BR-MT420 4-Piston
Front Disc Rotor

Shimano SM-RT30 CL, 180mm
Rear Disc Rotor

Shimano SM-RT30 CL, 180mm
Grips

Urban Comfort
Handlebar

Syncros UC3.0 680mm, Rise 19mm, Backsweep 15°

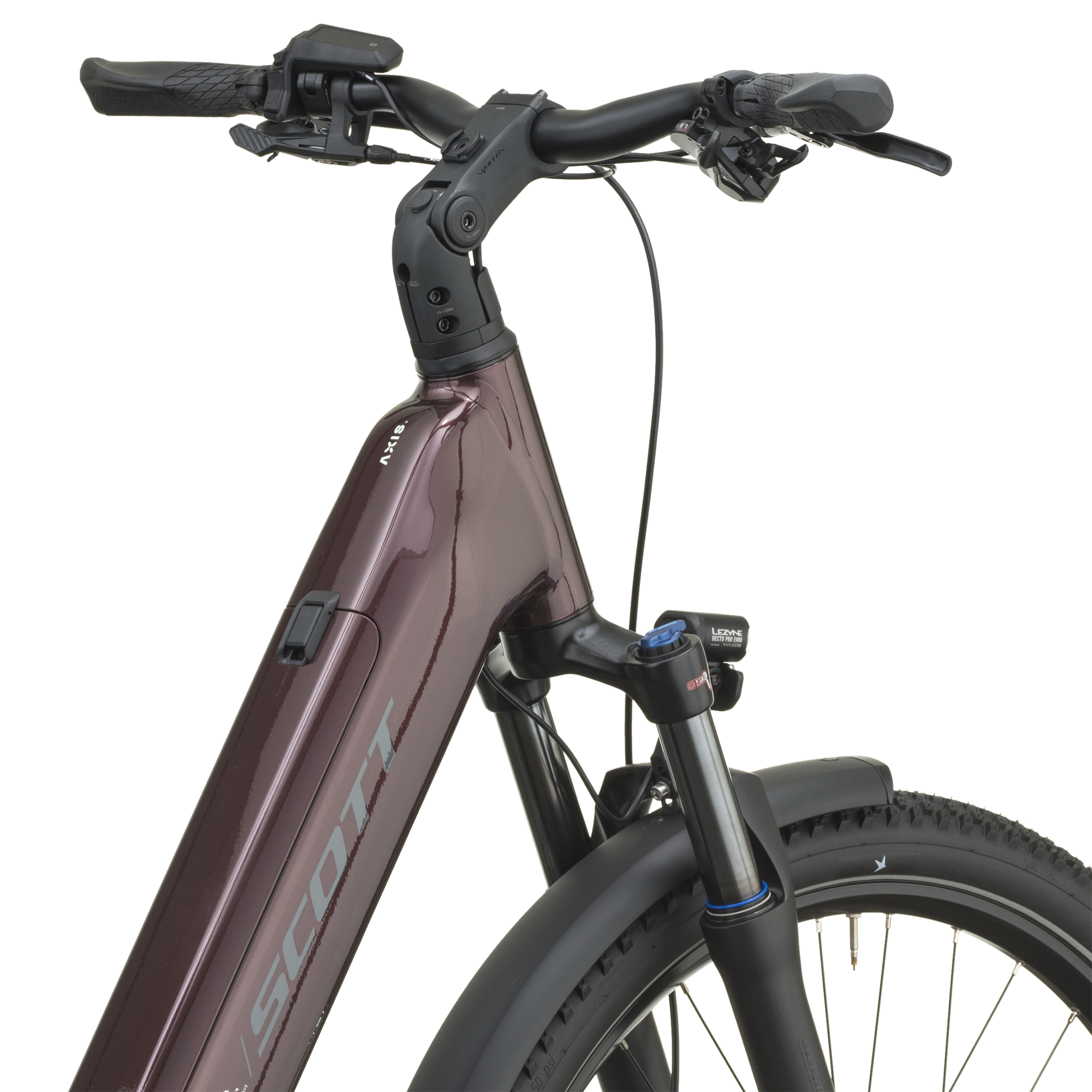

H'stem

JD, Adjustable, 31.8*90 mm −10°~+60°, SP Connect
Seatpost

Syncros Dropper Post SP-M302-AL2, 31.6mm
Seat

Selle Royal Explora Moderate Wide 195mm
Headset

Feimin, 28.8-56-62(39.8), Sealed Bearing, Alloy Cup
Front Hub

Shimano HB-TC500 15x110mm
Rear Hub

Shimano FH-TC500 148mm
Spokes

Stainless Black 13G
Front Rim

X18 Disc
Rear Rim

X18 Disc
Front Tire

Schwalbe Advancer 60-622
Rear Tire

Schwalbe Advancer 60-622
Front Light

Lezyne Hecto Pro STVZO E400
Rear Light

Lezyne STVZO Integrated

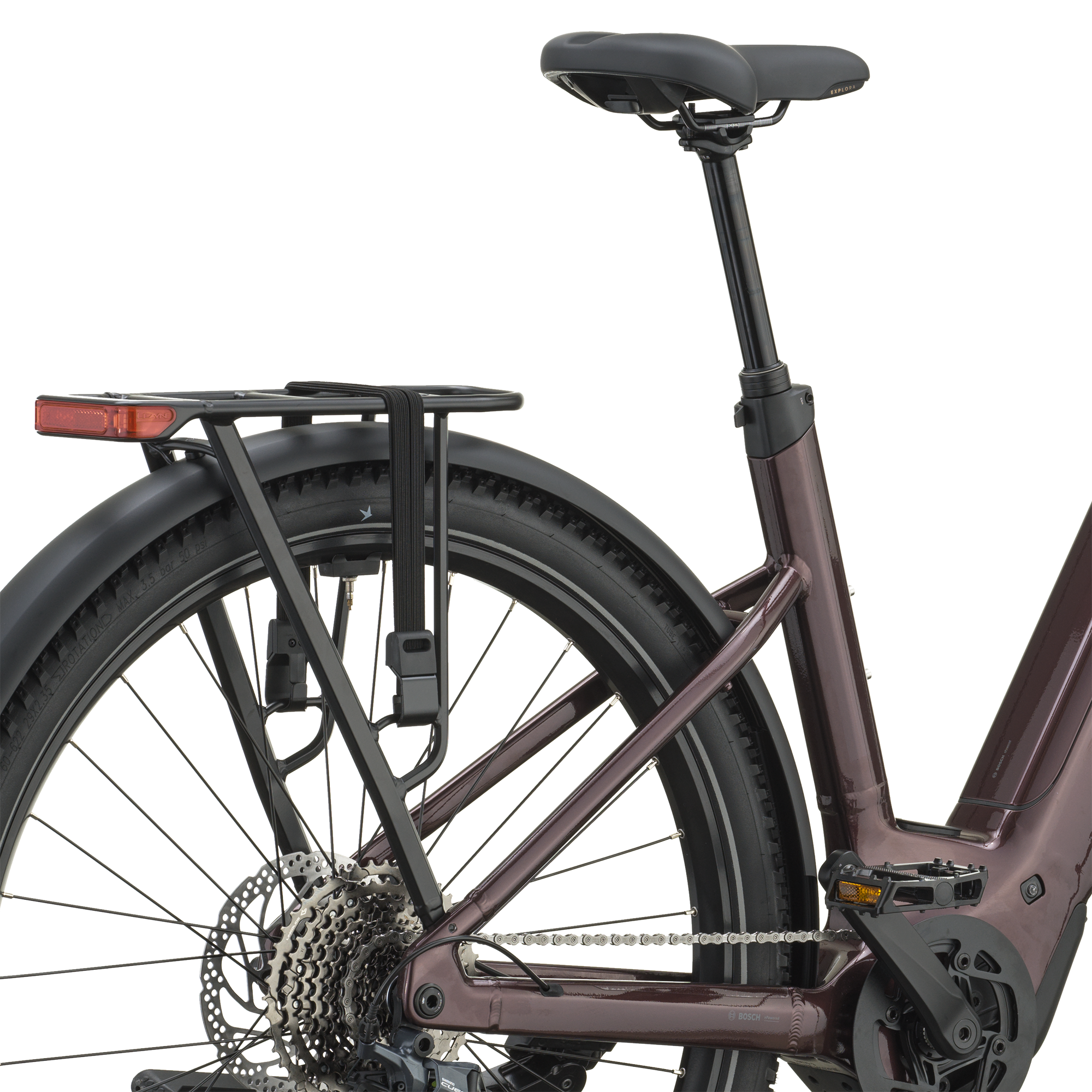

Rack

Racktime carrier SNAPIT 2.0 30Kg KID'n'CARRY Ready
Fender

Curana Apollo 75
Pedals

VP VPE-506
Extras

Ursus U-Mount Kickstand
Approx weight in KG

29.1
Approx weight in LBS

64.15
Max. System Weight

160kg
The overall weight includes the bike, the rider, the equipment and possible additional luggage.

Use

No Radar Chart Available Currently

Geometry
