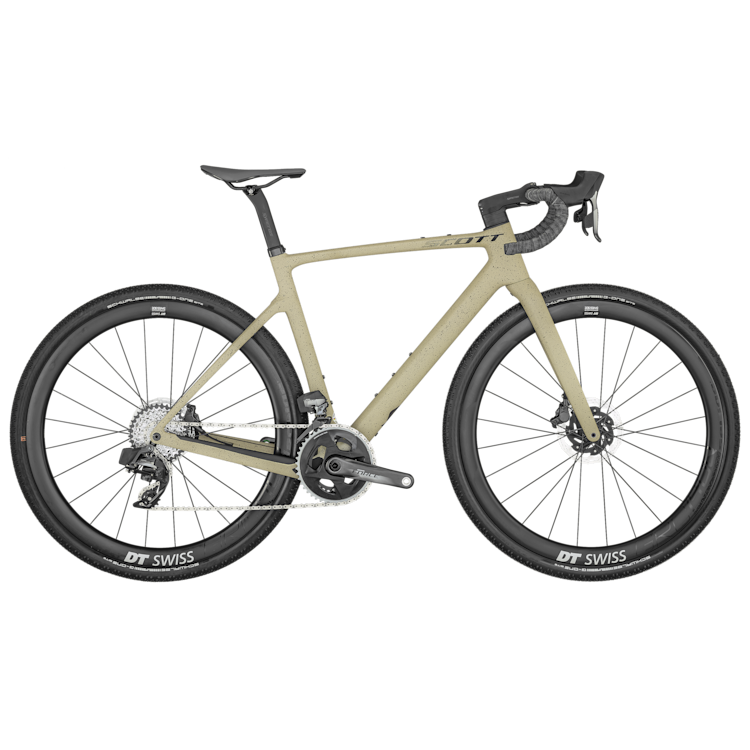

SCOTT Addict Gravel 10 Bike
Model : 269902
Key Features
- Addict Gravel Disc HMX Carbon Frame
- Addict Gravel Disc HMX Fork
- Syncros Meritt 1.0 35 Disc Wheels
Select a location
Availability for:
{{searchResult.productName}}
{{searchResult.firstLevelVariantAttribute}}
{{searchResult.secondLevelVariantAttribute}}
Please Note
Styles and availability may vary by store and online. The quantities we have of different items changes constantly, and we cant always guarantee availability.
- Sorry but the product is not available in your area
-
{{store.storeName}}
{{store.storeDistance}} km - {{store.storeAddress}}Available
SPECIFICATIONS
- The SCOTT Addict Gravel 10 Disc has been set up to allow you to ride any road, anywhere and in any weather conditions. A lightweight HMX Carbon fiber frame, Syncros components, some rugged Schwalbe G-One tires and Sram Hydraulic disc brakes give you a rig that will let you get your adventure on, no matter what. Find yourself, get lost.
-
Frame
Addict Gravel Disc HMX / IMP Carbon technology
Gravel Race geometry / Replaceable Dropout -
Fork
Addict Gravel Disc HMX Flatmount
1 1/8"-1 1/4" tapered Carbon steerer
Alloy Dropout -
Headset
Syncros Integrated -
Rear Derailleur
SRAM Force 1
11 Speed long cage
-
Shifters
SRAM Force 1 Hydraulic Disc
11 Speed -
Brakes
SRAM Force 1 Hydraulic Disc
160/F and 160/R mm Centerline Rotor -
Crankset
SRAM Force 1
42T -
BB-Set
SRAM PF86 GXP -
Handlebar
Syncros Creston SL Flare
Carbon 31.8mm -
H'stem
Syncros RR1.5 1 1/8" / four Bolt 31.8mm -
Seatpost
Syncros Carbon FL1.0
27.2/350mm -
Seat
Syncros Tofino T-Cutout 1.0 -
Wheelset
Syncros Meritt 1.0 35 Disc
18 Front / 24 Rear
Syncros Plug-in RWS -
Chain
SRAM PC 1170 -
Cassette
SRAM XG 1195
10-42 -
Tires
Schwalbe G-ONE Allround FOLD
700x35C -
Approx weights in KG
7.62 -
Approx weights in LBS
16.80 -
System Weight
120
Use
product.useRadarChart.notAvailable
Geometry
| XS/49 | S/52 | M/54 | L/56 | XL/58 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle | 70.0 ° | 70.0 ° | 71.0 ° | 71.0 ° | 71.0 ° | |||||||||||||
| B | head tube length | 95.0 mm | 3.7 in | 120.0 mm | 4.7 in | 140.0 mm | 5.5 in | 160.0 mm | 6.3 in | 180.0 mm | 7.1 in | ||||||||
| C | top tube horizontal | 505.0 mm | 19.9 in | 525.0 mm | 20.7 in | 545.0 mm | 21.5 in | 568.0 mm | 22.4 in | 590.0 mm | 23.2 in | ||||||||
| D | standover height | 749.8 mm | 29.5 in | 775.7 mm | 30.5 in | 796.2 mm | 31.3 in | 814.1 mm | 32.1 in | 832.0 mm | 32.8 in | ||||||||
| E | BB offset | -68.0 mm | -2.7 in | -68.0 mm | -2.7 in | -68.0 mm | -2.7 in | -68.0 mm | -2.7 in | -68.0 mm | -2.7 in | ||||||||
| F | BB height | 281.0 mm | 11.1 in | 281.0 mm | 11.1 in | 281.0 mm | 11.1 in | 281.0 mm | 11.1 in | 281.0 mm | 11.1 in | ||||||||
| G | wheel base | 984.0 mm | 38.7 in | 1,002.0 mm | 39.4 in | 1,017.0 mm | 40.0 in | 1,043.0 mm | 41.1 in | 1,056.0 mm | 41.6 in | ||||||||
| H | BB center to toptube center | 431.5 mm | 17.0 in | 462.7 mm | 18.2 in | 483.0 mm | 19.0 in | 503.2 mm | 19.8 in | 523.3 mm | 20.6 in | ||||||||
| I | BB center to top of seattube | 490.0 mm | 19.3 in | 520.0 mm | 20.5 in | 540.0 mm | 21.3 in | 560.0 mm | 22.0 in | 580.0 mm | 22.8 in | ||||||||
| J | seat angle | 74.5 ° | 74.0 ° | 73.5 ° | 73.0 ° | 73.0 ° | |||||||||||||
| K | chainstay | 422.0 mm | 16.6 in | 422.0 mm | 16.6 in | 422.0 mm | 16.6 in | 422.0 mm | 16.6 in | 422.0 mm | 16.6 in | ||||||||
| L | reach | 360.0 mm | 14.2 in | 369.0 mm | 14.5 in | 378.0 mm | 14.9 in | 390.0 mm | 15.4 in | 405.0 mm | 15.9 in | ||||||||
| M | stack | 521.8 mm | 20.5 in | 545.5 mm | 21.5 in | 564.4 mm | 22.2 in | 583.3 mm | 23.0 in | 602.2 mm | 23.7 in | ||||||||
| N | stem length | 90.0 mm | 3.5 in | 100.0 mm | 3.9 in | 110.0 mm | 4.3 in | 120.0 mm | 4.7 in | 120.0 mm | 4.7 in | ||||||||
| 0 | trail |
Technologies
CX Disc Brakes
While there's no doubt regarding the reliable and consistent braking performance of disc brakes, there is no longer an additional weight penalty to worry about, as the race-ready Addict The thru axle system is designed to be as quick and easy to use as a regular quick release, while at the same time offering extra strength, stiffness and security. Thru axles, as we know, provide increased axle-stiffness compared to standard quick releases. The 100×12mm front axle and the 142×12mm rear axle CX comes close to the UCI's weight limit for complete bikes. The Addict CX frame is optimized for disc brake use and accommodates both postmount and flatmount disc brake standards.
Oversized Bottom Bracket
The PF86 bottom bracket allows for a wide connection of the downtube and the tapered seattube to the BB box. Together with a stiffness-optimized lay-up and SCOTT's patented carbonmanufacturing process, the BB stiffness of the Addict Gravel Disc reaches an impressive level.
Tapered Headtube
The Addict Gravel Disc features 1 1/8" to 1 1/2" integrated bearings and a tapered headtube. The headtube diameter allows for wider connections of the toptube and downtube which results in an increased of torsional stiffness. The rigid front end enables direct, precise and safe handling of the bike, even in the most technical of turns. Athlete
AWARDS AND MEDIA
Unbeatable!
October 2018
«Last year already, the SCOTT Addict was one of our testers’ favorites. The frameset features all the modern standards. But this year, the color is really an eyecatcher. To make it look even better, it now comes with 5mm wider tires - the Schwalbe G-One are a perfect match. Light and comfortable, these 40mm wide tires are just missing a little bit of traction on loose gravel. Components include Sram’s Force-1-Group and the light Syncros carbon wheels, which even enhance the racing DNA of the Addict. Thanks to the volume of the tires, the reduced comfort of the carbon wheels almost goes unnoticed. On asphalt and smooth gravel roads the Addict is by far the fastest bike. However, for longer rides we would wish more comfort and stability.»
Full Review in Rennrad, Issue 10/18
