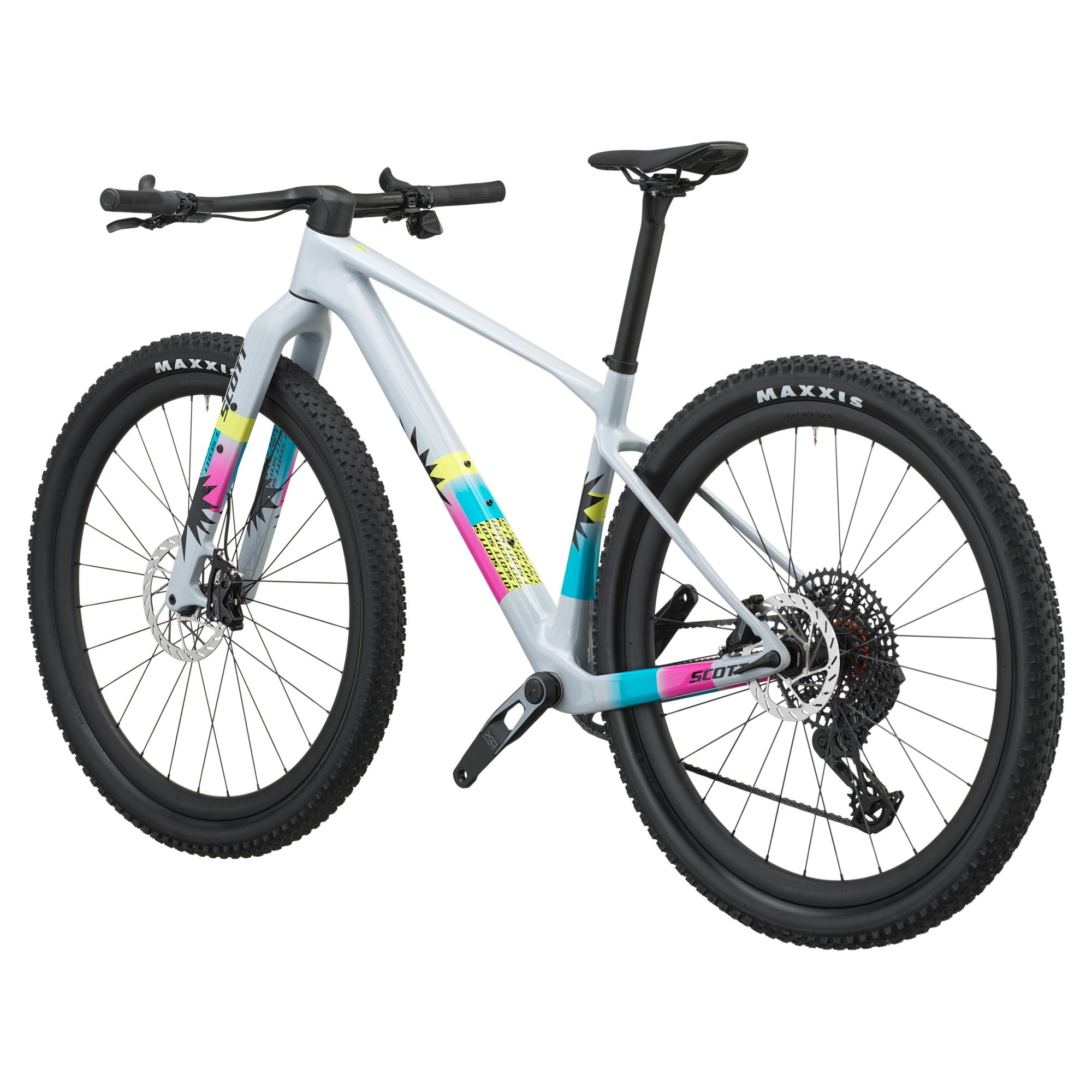

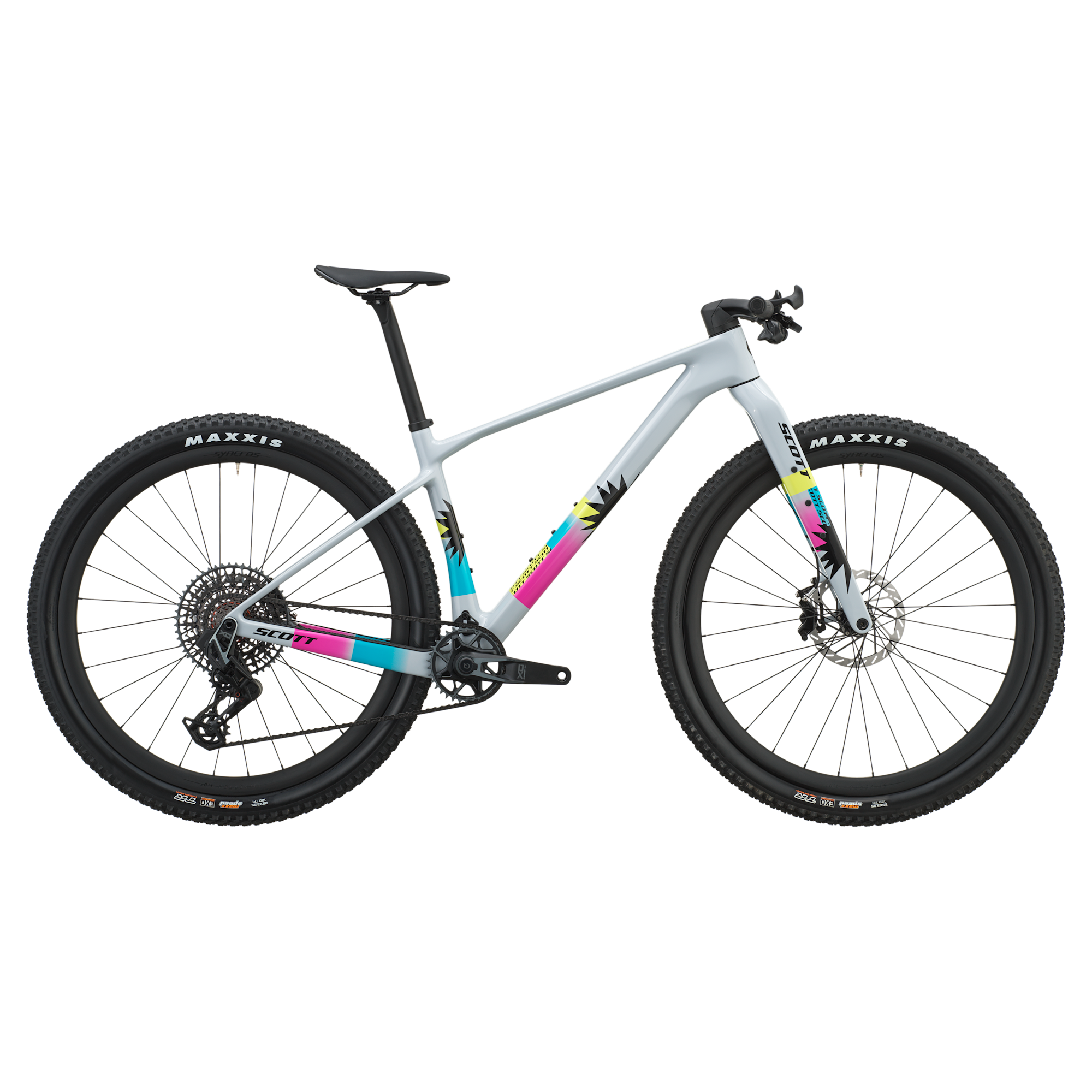

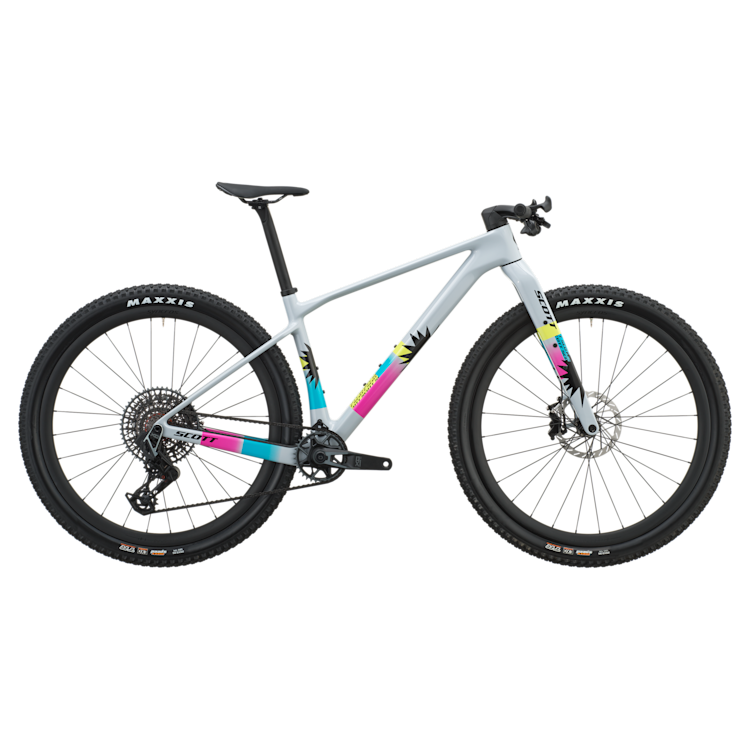

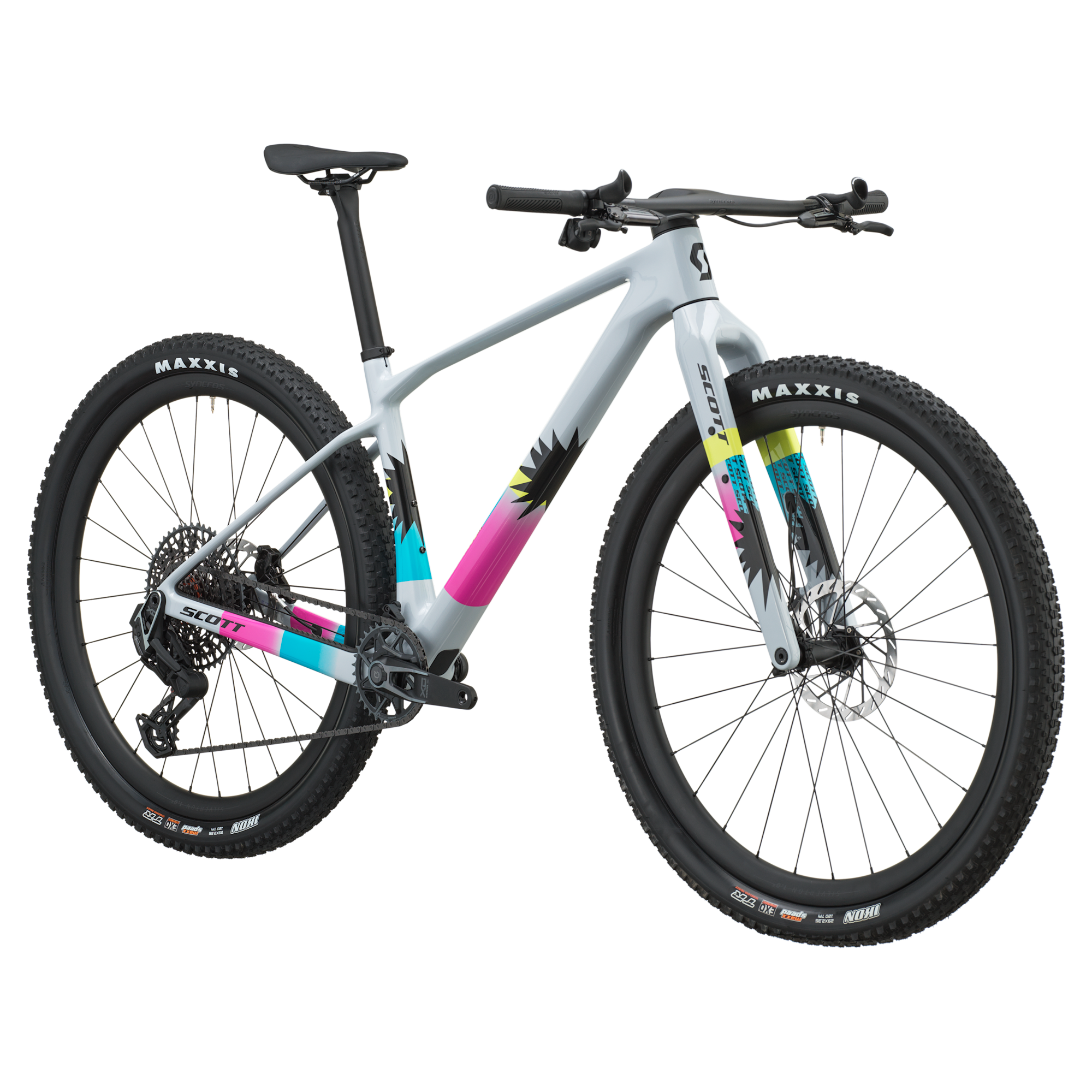

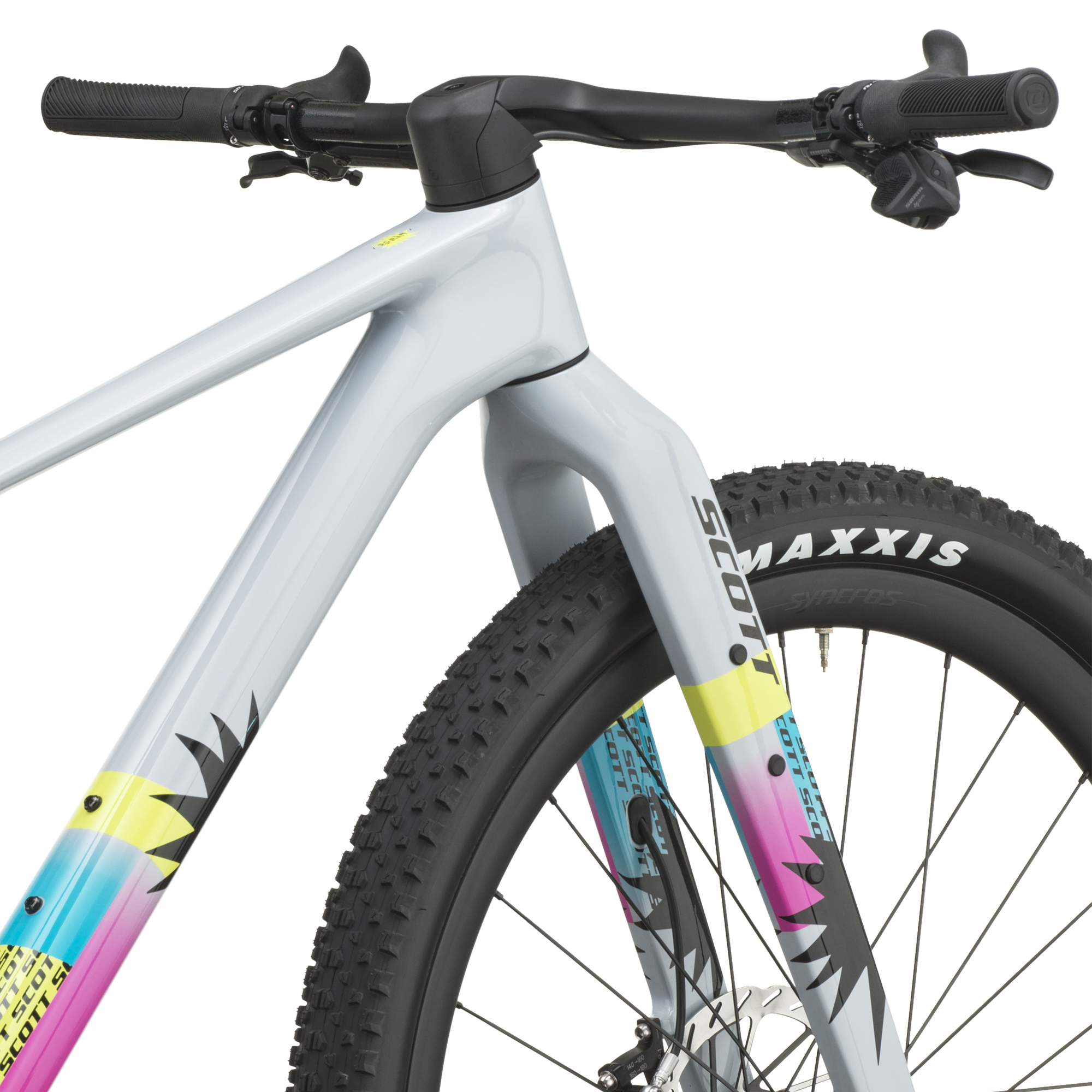

Scott Scale Gravel 10 Bike
Model : 427617
Key Features
- Scale HMF Carbon frame
- SRAM X0 AXS 12 speed drivetrain
- SRAM Motive 4 disc brakes
- Syncros Silverton GR wheelset
- Schwalbe Thunder Burt foldable tires
- Syncros components
1. Color : dorado grey
2. Size
SEK 59 995,00
BE THE FIRST ONE TO KNOW
Please enter your email so we can alert you when the Scott Scale Gravel 10 Bike in size S is back in stock.
You will only be notified once.
Delivery within 4-7 working days after order
Free shipping on orders above SEK 1500
Free return within 14 days
-
The Scale Gravel was put on this planet for going on adventures with attitude. Designed to go the distance over any and all types of terrain, the Scale Gravel is lightweight with agile handling and features multiple mounting options.
Please note that bike specifications are subject to change without prior notice. -
Frame
Scale HMF Carbon, adjustable head angle, Syncros Cable Integration System, advanced shock & standing damping system, BB92, UDH interface, 12x148mm with 55mm chainline -

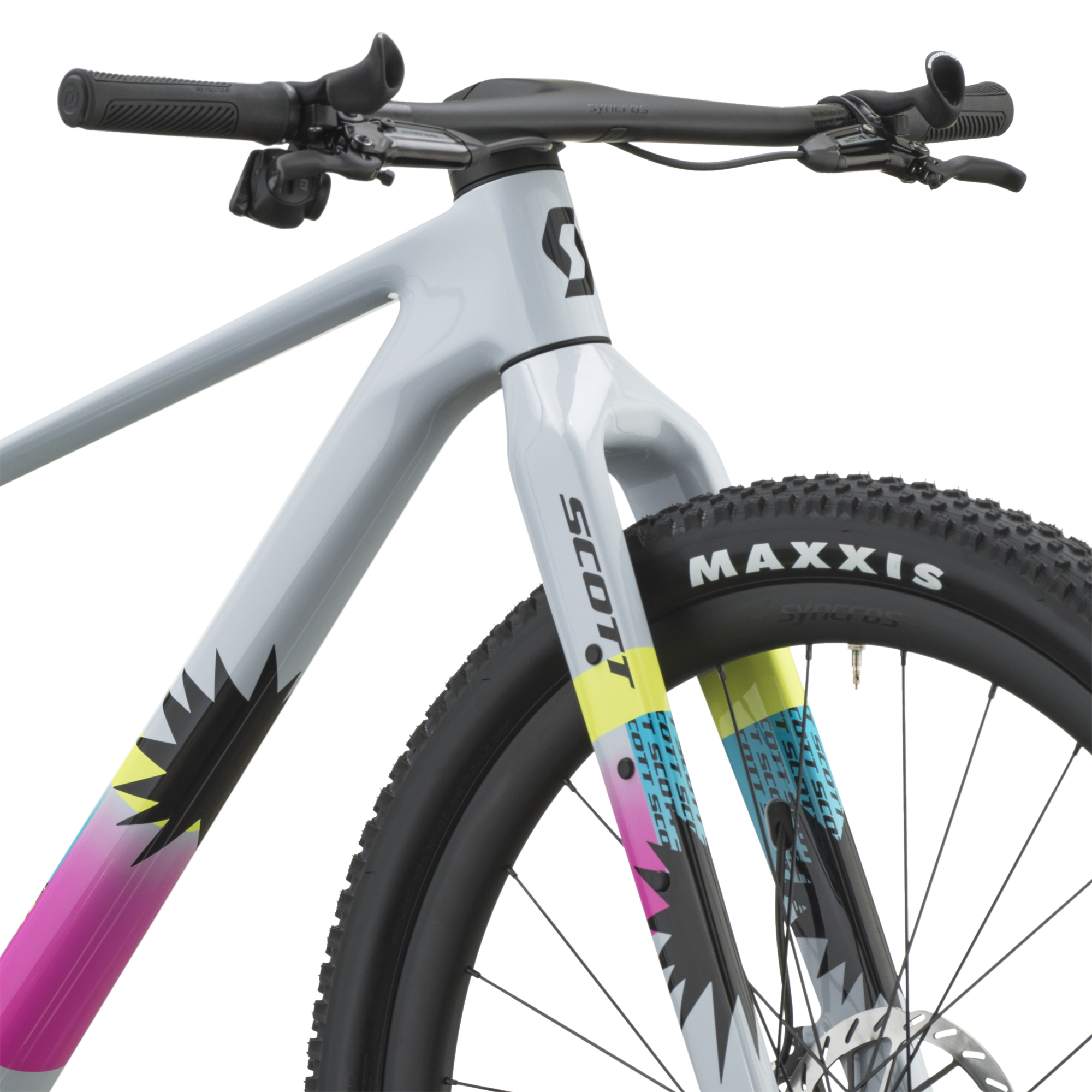

Fork
Scale Rigid HMF, postmount disc standard, tapered carbon steerer -

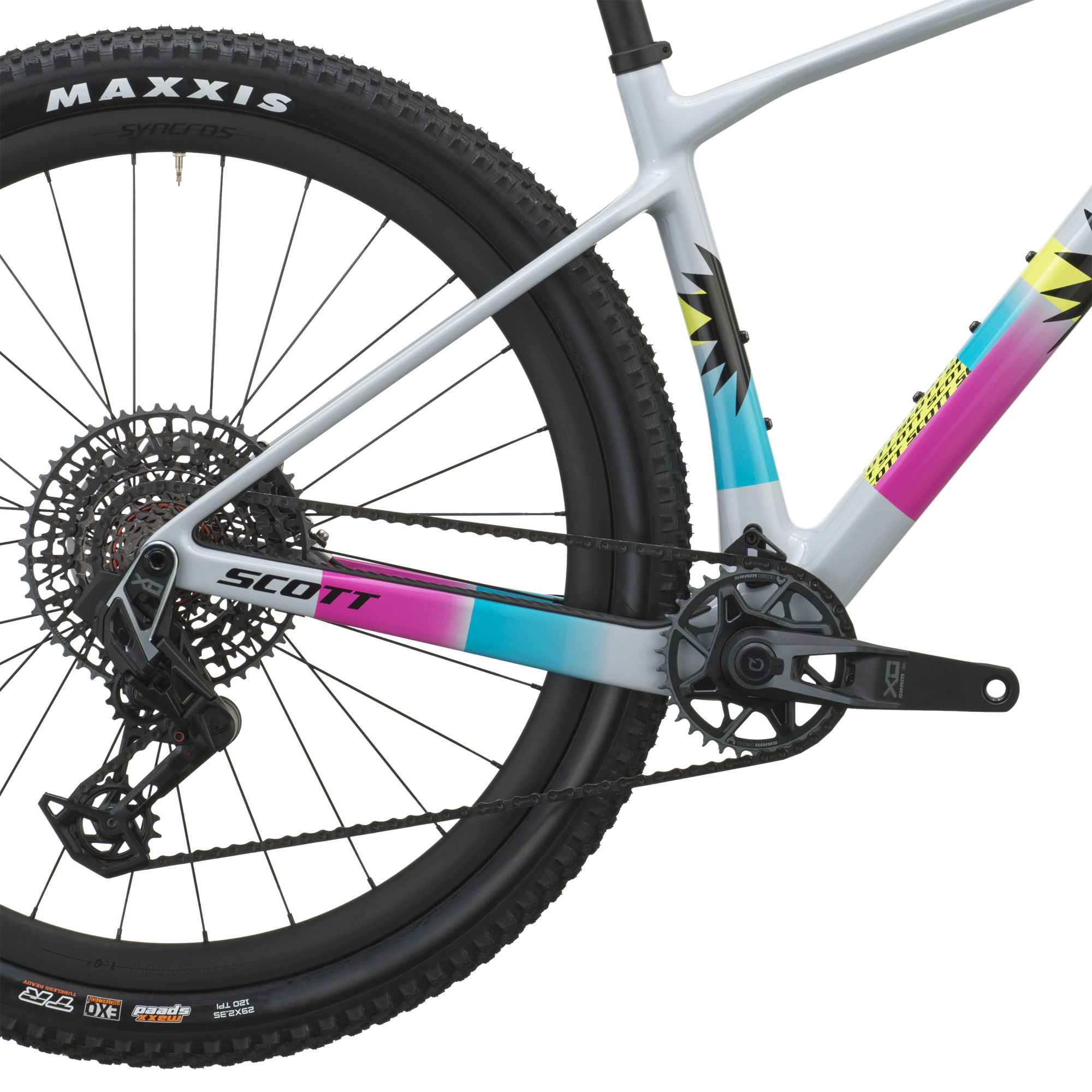

Rear Derailleur
SRAM X0 Eagle AXS Transmission 12 Speed, Wireless Electronic Shift System -
Shifters
SRAM AXS Rocker Pod Controller
-

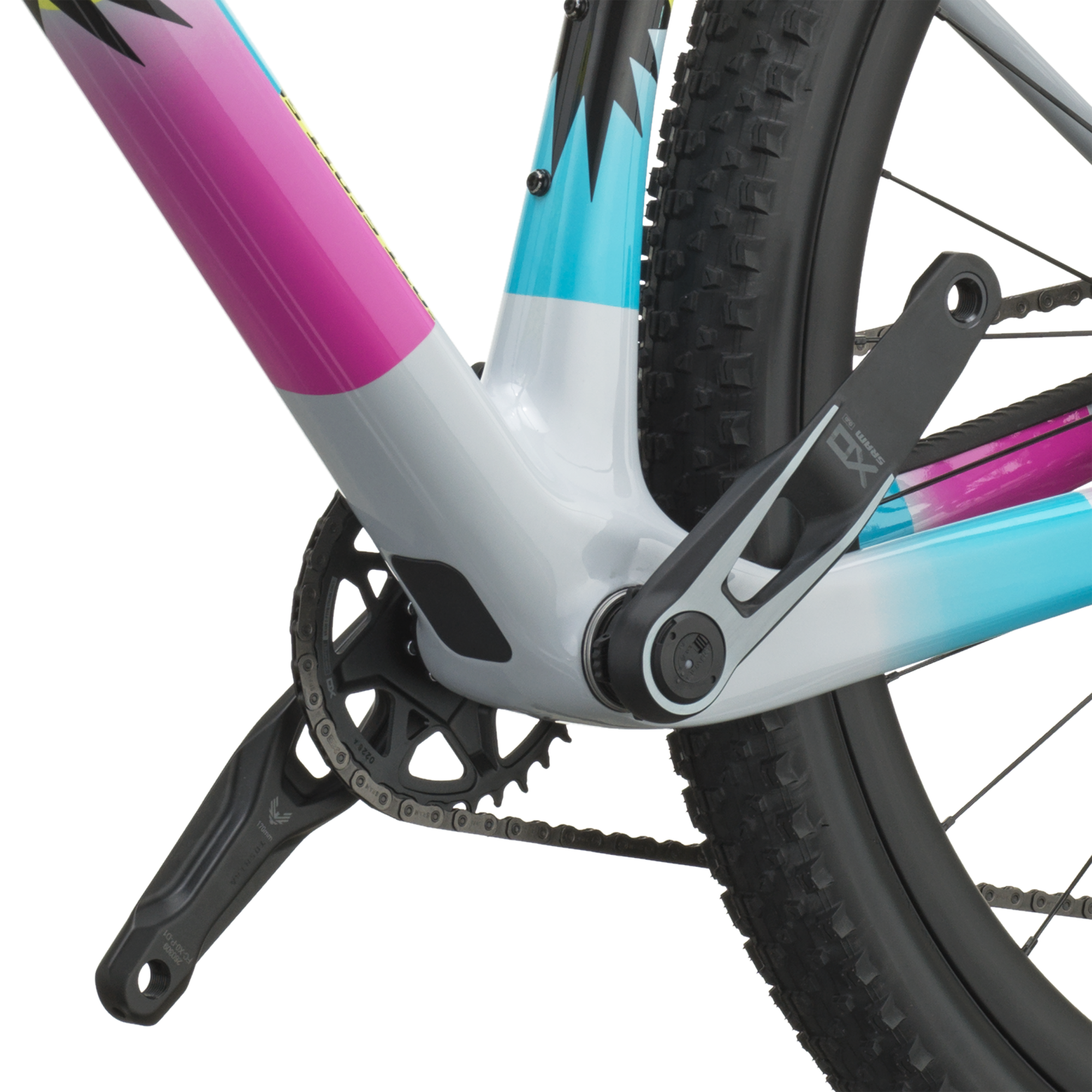

Crankset
SRAM X0 Eagle Transmission, Spindle Powermeter, DUB, 55mm CL, 34T -
Chainguide
SCOTT custom -
BB-Set
SRAM DUB PF 92 MTB Wide, shell 41x92mm -
Chain
SRAM X0 Eagle Transmission -
Cassette
SRAM X0 Eagle XS-1295 Transmisson, 10-52T -
Brakes
SRAM Motive Silver 4-Piston -
Front Disc Rotor
SRAM HS2 CL, 180mm -
Rear Disc Rotor
SRAM HS2 CL, 160mm -
Grips
Syncros Performance XC Lock-On -
Handlebar
Syncros Fraser iC SL XC Carbon, -20° rise, back sweep 8°, 740mm -

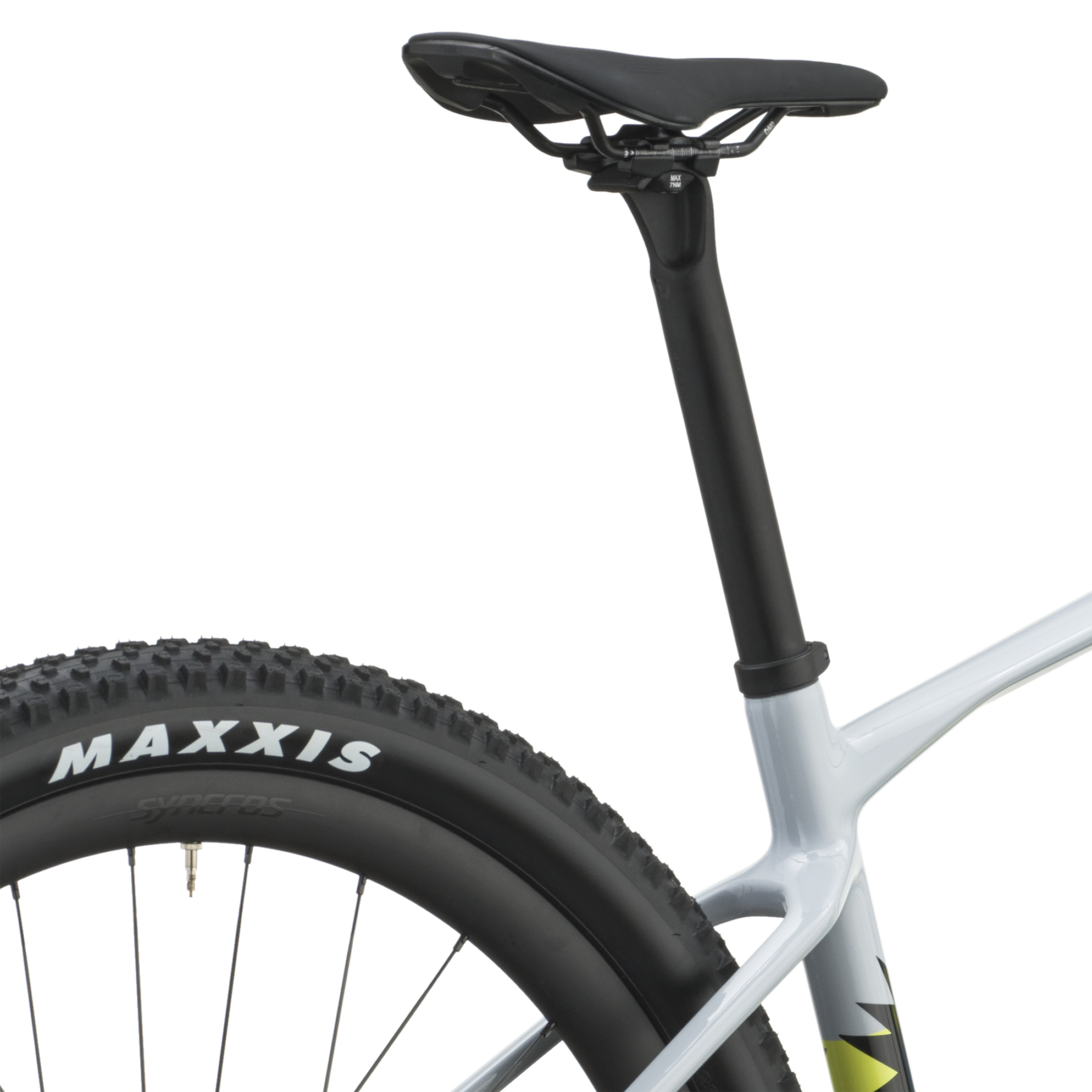

Seatpost
Syncros Carbon, 10mm offset, 31.6x400mm -
Seat
Syncros Celista Cut Out, Carbon Rails -
Headset
Syncros - Acros Angle adjust & Cable Routing HS System, Stainless, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB -
Wheelset
Syncros Silverton 1.0X CL, F: 15x110mm, R: 12x148mm, Tubeless ready Carbon rim 28H, XD Driver -
Front Tire
Maxxis Rekon Race 29x2.4”, 60TPI Foldable, Tubeless Ready, EXO -
Rear Tire
Maxxis Rekon Race 29x2.4”, 60TPI Foldable, Tubeless Ready, EXO -
Extras
Spirgrips Inner Bar ends, SRAM AXS powerpack -
Accessories
Milkit sealant -
Approx weight in KG
9 Tubless -
Approx weight in LBS
19.84 Tubless -
Max. System Weight
130kg
The overall weight includes the bike, the rider, the equipment and possible additional luggage.
Monocoque Construction
The new Scale RC’s monocoque construction enables a production using only one mold for the main section of the bike, the front triangle. Applying our carbon expertise, the new Scale therefore consists of only 3 separate pieces molded together. This directly translates into an increased level of efficiency due to the reduced number of junctions required therefore decreasing weight while keeping the superior stiffness – something we’re always aiming for with hardtail race bikes. With the full frame constructed as a system, the monocoque design enables the frame to handle forces as a whole.
Service Door
A little service door, which is accessible through a downtube cover, allows easy access to the interior of the frame without the need to remove the Bottom Bracket. Frame maintenance is made easy with regards to cable routing.
Hollow Dropout Construction
The dropout feature an advanced, hollow construction, which allows the axle head to clamp against the inner surface of the dropout and leaves the
head flush with the surface. This enables the lightest possible construction approach and a clean looking design from the outside. While being able to directly shave off 7.5g with the new dropout construction, the optimized design favors a narrower construction of the rear triangle area, which in turn enables a reduction of 20g in this area of the frame (HMX-SL).
