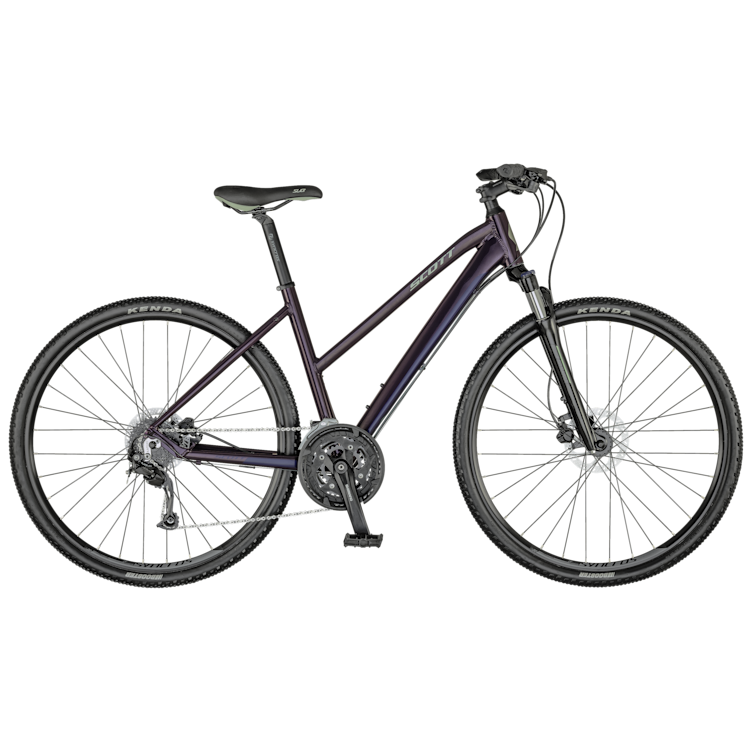

SCOTT Sub Cross 30 Lady Bike

Model : 249799

Key Features

  • New Sub Cross 6061 Alloy Frame
  • 27 Speed
  • Shimano Hydr. Disc
  • Urban Kit Ready
Find a Dealer
SPECIFICATIONS
  • The SCOTT SUB Cross 30 emphasizes comfort and convenience for touring and transportation. Equipped with a lockout fork and Syncros components, the SUB Cross is set up perfectly for your eXCursions. Available in both Men and Lady geometries.

    bike condition 2
    GENERAL PURPOSE RIDING
    Please check the Bike Manual Section for more information
  • Frame

    New SUB Cross Alloy 6061 / Sub Cross Men/Lady geometry / External cable routing / SCOTT urban kit ready
  • Fork

    Suntour Nex HLO / Hyd. Lockout / 63mm travel
  • Headset

    GW 1SI110 OE integ.
  • Rear Derailleur

    Shimano Alivio RD-M4000 / 27 Speed
  • Front Derailleur

    Shimano FD-M370 / 34.9mm
  • Shifters

    Shimano SL-M370-9 / R-fire plus / w/gear indicator
  • Brake Levers

    Shimano BL-M315
  • Brakes

    Shimano BR-M315 / Hydr. Disc / SM-RT10 CL Rotor / 160F/160R
  • Crankset

    Shimano FC-T3010 / 48x36x26 / w/CG
  • BB-Set

    Shimano BB-UN-26 / Cartridge Type
  • Handlebar

    Syncros UC3.0 / 31.8 / Men: Tbar/620mm/9° bend / Lady: 680mm/15° bend
  • H'stem

    Syncros UC3.0 / 7° / Black
  • Pedals

    Wellgo M-141SDU
  • Seatpost

    Syncros UC3.0 / 31.6mm / 350mm / Black
  • Seat

    SUB Cross Men EVO / lady EVO
  • Hub (Front)

    Shimano HB-TX505
  • Hub (Rear)

    Shimano FH-TX5058
  • Chain

    KMC X9
  • Cassette

    Shimano CS-HG200-9
    11-34 T
  • Spokes

    Stainless black / 14G / 2mm
  • Rims

    Syncros X-20 Disc / 32H / black
  • Tires

    Impac SmartPac / 700x42C / 50 TPI
  • Approx weights in KG

    13.94
  • Approx weights in LBS

    30.73
Use
product.useRadarChart.notAvailable
Geometry

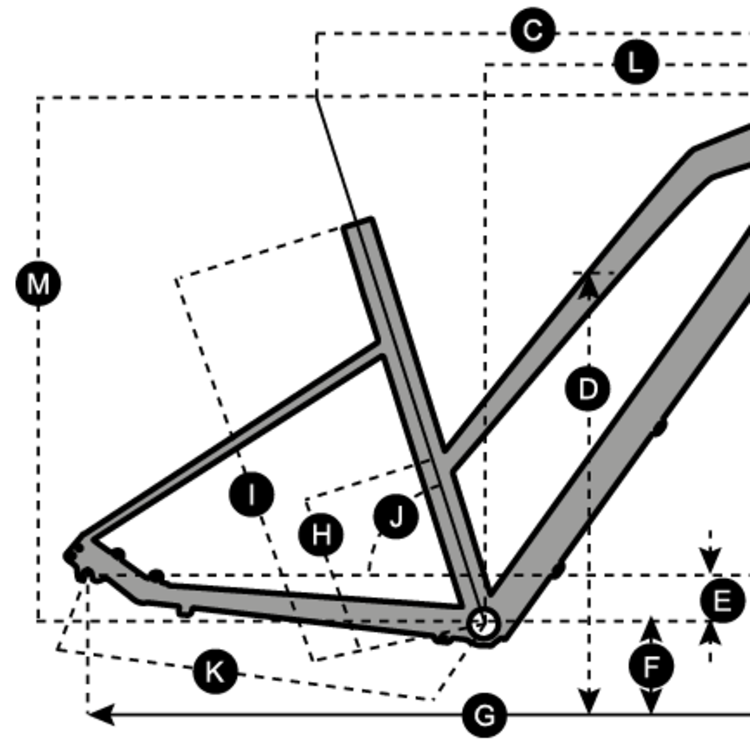

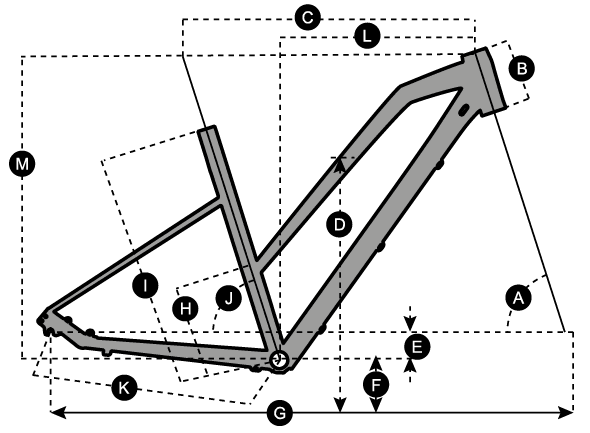

Geometry of SCOTT Sub Cross 30 Lady Bike
S M L XL
A head tube angle 70.0 ° 70.0 ° 70.0 ° 70.0 °
B head tube length 115.0 mm 4.5 in 130.0 mm 5.1 in 155.0 mm 6.1 in 180.0 mm 7.1 in
C top tube horizontal 550.0 mm 21.7 in 565.0 mm 22.2 in 575.0 mm 22.6 in 590.0 mm 23.2 in
D standover height 679.5 mm 26.8 in 684.1 mm 26.9 in 695.8 mm 27.4 in 702.6 mm 27.7 in
E BB offset 56.0 mm 2.2 in 56.0 mm 2.2 in 56.0 mm 2.2 in 56.0 mm 2.2 in
F BB height 406.0 mm 16.0 in 406.0 mm 16.0 in 406.0 mm 16.0 in 406.0 mm 16.0 in
G wheel base 1,067.0 mm 42.0 in 1,078.0 mm 42.4 in 1,083.0 mm 42.6 in 1,099.0 mm 43.3 in
H BB center to toptube center
I BB center to top of seattube 420.0 mm 16.5 in 460.0 mm 18.1 in 500.0 mm 19.7 in 540.0 mm 21.3 in
J seat angle 73.5 ° 73.0 ° 72.3 ° 72.0 °
K chainstay 456.0 mm 18.0 in 456.0 mm 18.0 in 456.0 mm 18.0 in 456.0 mm 18.0 in
L reach 374.0 mm 14.7 in 379.0 mm 14.9 in 375.9 mm 14.8 in 383.5 mm 15.1 in
M stack
N stem length 70.0 mm 2.8 in 80.0 mm 3.1 in 90.0 mm 3.5 in 100.0 mm 3.9 in
0 trail
