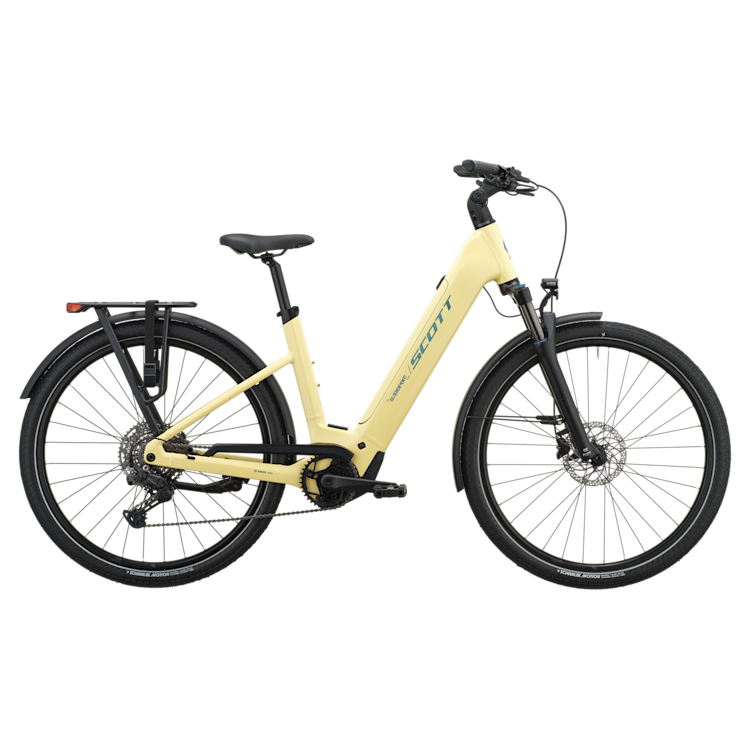

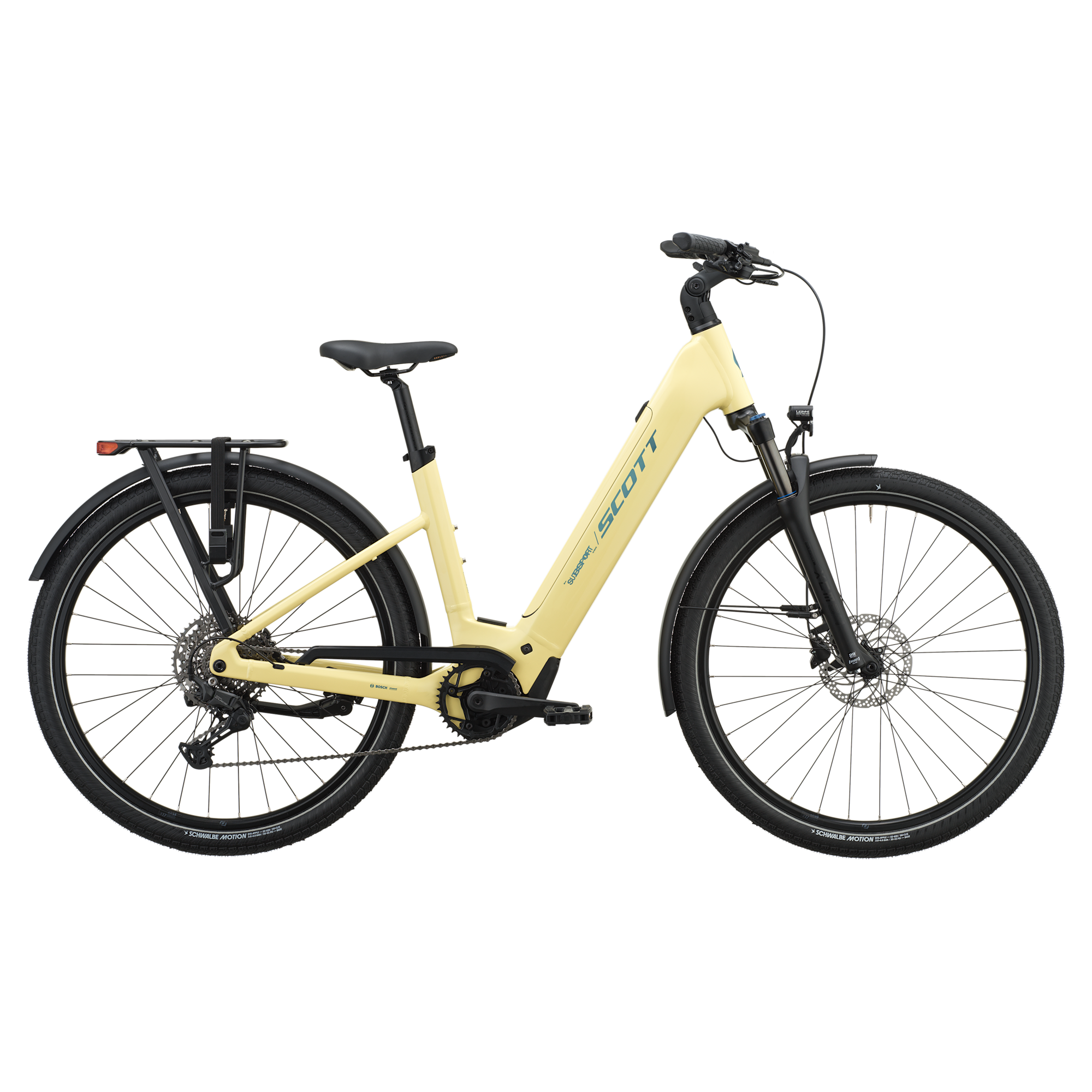

Scott Sub Sport 10 Wave Bike
Model : 427675
Key Features
- Low step-through alloy frame
- Bosch Performance Line CX motor, 100Nm
- Removable Bosch PowerTube 800Wh
- SR Suntour front fork, 100mm
- Shimano Cues 10 speed drivetrain
- Schwalbe Big Apple Performance tires
- Adjustable stem with SP Connect
- Lezyne front and rear lights
- Racktime rack, SNAPIT 2.0, KID'nCARRY, 30kg
- Trailer compatible
1. Color : canary yellow
2. Size
-
The SCOTT SUB Sport 10 Wave E-Bike invites you to move confidently through the city. Crafted with a low step-through frame that makes getting on and off easy, it's the perfect choice to elevate your ride.
Power comes from the Bosch Performance CX drive unit paired with a removable 800 Wh battery, delivering a natural‑feeling and a range that comfortably covers daily trips and longer adventures alike. Multiple assist modes let you adjust the support level for any situation, while the balanced geometry and front suspension mean you can glide through congested streets with ease.
The stem is fully adjustable, so you can switch between a relaxed, comfortable posture and a sportier riding position. Integrated with an SP connection, the stem securely holds your phone, keeping navigation visible and your hands free.
The rear rack supports up to 30kg and is compatible with Racktime SNAPIT 2.0 and KID'n’CARRY systems, making it easy to carry groceries, gear, or a child seat. In addition, the bike offers trailer capacity, giving you even more flexibility for larger loads.
Coupled with Shimano’s reliable 10‑speed drivetrain, the SUB Sport 10 Wave delivers smooth shifting and is always ready to support your lifestyle.
Please note that bike specifications are subject to change without prior notice. -
Frame
Alloy S-XL=29", 6061 Alloy custom butted tubing, Side extraction battery, UDH Interface, 12x148mm with 52mm Chainline -
Travel
100mm -
Fork
SR Suntour XCM34 BOOST AIR LO -
Drive Unit
Bosch Performance Line CX (BDU384Y)
-
Battery
Bosch PowerTube 800Wh -
Display
Bosch Purion 200 -
Charger
Bosch 4A Charger 230V -
Rear Derailleur
Shimano Cues RD-U6000 10/11-Speed -
Shifters
Shimano Cues SL-U6000 With Display -
Crankset
FSA CK 220 170mm -
Chainguide
Chaincase cover -
Chainring
FSA 38T w/o Chain Guard -
Chain
Shimano CN-LG500 -
Cassette
Shimano Cues CS-LG400, 10-Speed 11-48T -
Brakes
Shimano BR-MT200 2-Piston -
Front Disc Rotor
Shimano SM-RT30 CL, 180mm -
Rear Disc Rotor
Shimano SM-RT30 CL, 160mm -
Grips
Urban Comfort -
Handlebar
Syncros UC3.0 680mm, Rise 26mm, Backsweep 30° -
H'stem
JD, Adjustable, 31.8*90 mm −10°~+60°, SP Connect -
Seatpost
Syncros M3.0, 31.6mm, 350mm -
Seat
Selle Royal Explora Moderate Wide 195mm -
Headset
Feimin, 28.8-56-62(39.8), Sealed Bearing, Alloy Cup -
Front Hub
Shimano HB-TC500 15x110mm -
Rear Hub
Shimano FH-TC500 148mm -
Spokes
Stainless Black 13G -
Front Rim
X18 Disc -
Rear Rim
X18 Disc -
Front Tire
Schwalbe Big Apple Performance, 55-622 -
Rear Tire
Schwalbe Big Apple Performance, 55-622 -
Front Light
Lezyne Hecto Pro STVZO E400 -
Rear Light
Lezyne STVZO Integrated -
Rack
Racktime carrier SNAPIT 2.0 30Kg KID'n'CARRY Ready -
Fender
Curana Apollo 65 -
Pedals
Marwi SP-827 -
Extras
Ursus U-Mount Kickstand -
Approx weight in KG
30.6 -
Approx weight in LBS
67.46 -
Max. System Weight
160kg
The overall weight includes the bike, the rider, the equipment and possible additional luggage.

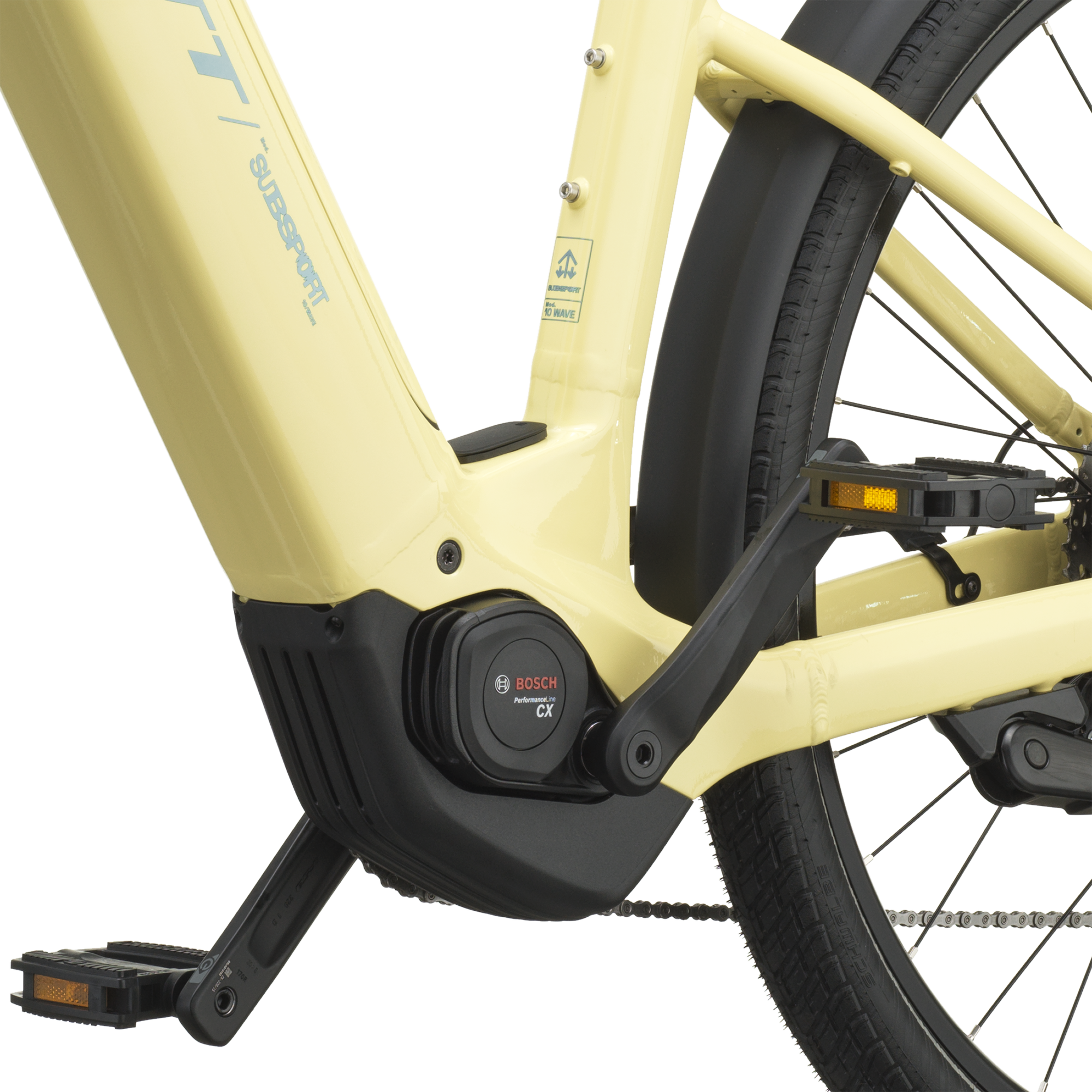

BOSCH EBIKE SYSTEM - 800 WH BATTERY
Reliability is key when it comes to e-Bike systems and Bosch is among the leaders. With the Performance CX drive unit of up to 100 Nm, paired with the powerful, integrated PowerTube 800 WH battery, you can simply enjoy your ride. And if that’s still not enough, the e-bike is compatible with the Bosch PowerMore 250 range extender. The battery weight is also reduced to 3.9 kg thanks to its high energy density 205WH/kg.
Rear Rack and Integrated Lights
Ready for everyday and beyond. Whether you're carrying groceries, heading to work, or attaching a child seat, the rear rack is designed to adapt to your needs. Compatible with Racktime SNAPIT 2.0 and KID'n'CARRY systems, it supports loads of up to 30 kg for added versatility.Integrated front and rear lights help you see and be seen in changing conditions, while the rear light remains visible even when the rack is loaded thanks to its wrap-around design.
SYNCROS ADAPTER FOR BIKE TRAILER
Need to bring your kids or pets along for the ride or just carry your grocery shopping? No problem! Our Syncros team has designed a thru-axle which enables you to tow any bike or cargo trailer so you can enjoy time with your loved ones on your e-bike.
SUB GEOMETRY
With diverse needs in mind, we have designed the bike’s geometry with two frame shapes, a more classic frame and a low step-through called “wave”, which is easier to mount and dismount. Pick the one that fits best suits you.

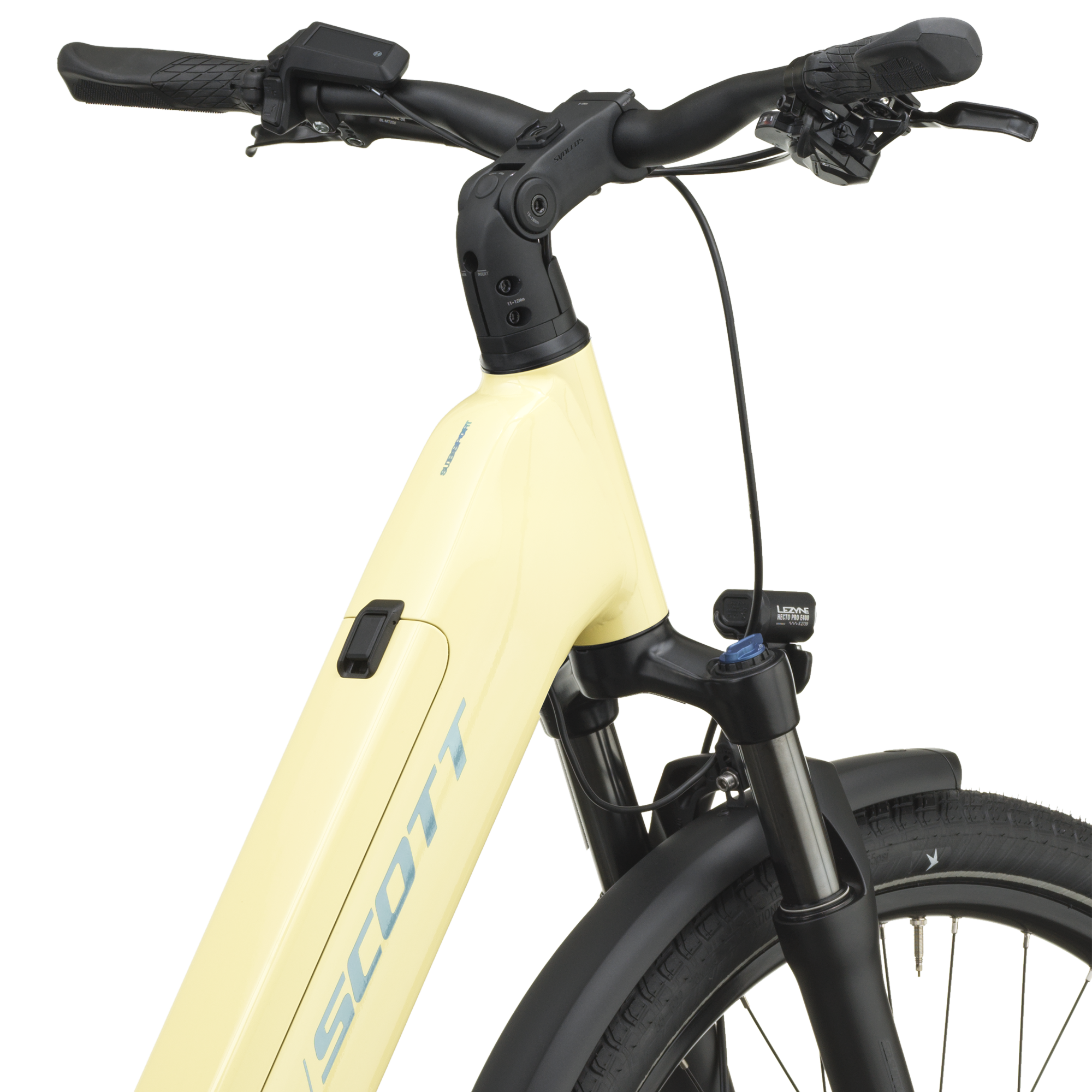

Adjustable Stem with SP Connect
A setup that adapts to you. The adjustable stem makes it easy to find a comfortable riding position that suits your needs. With an SP Connect mount integrated directly into the stem, your smartphone stays securely in place, keeping navigation and ride information within easy view.
