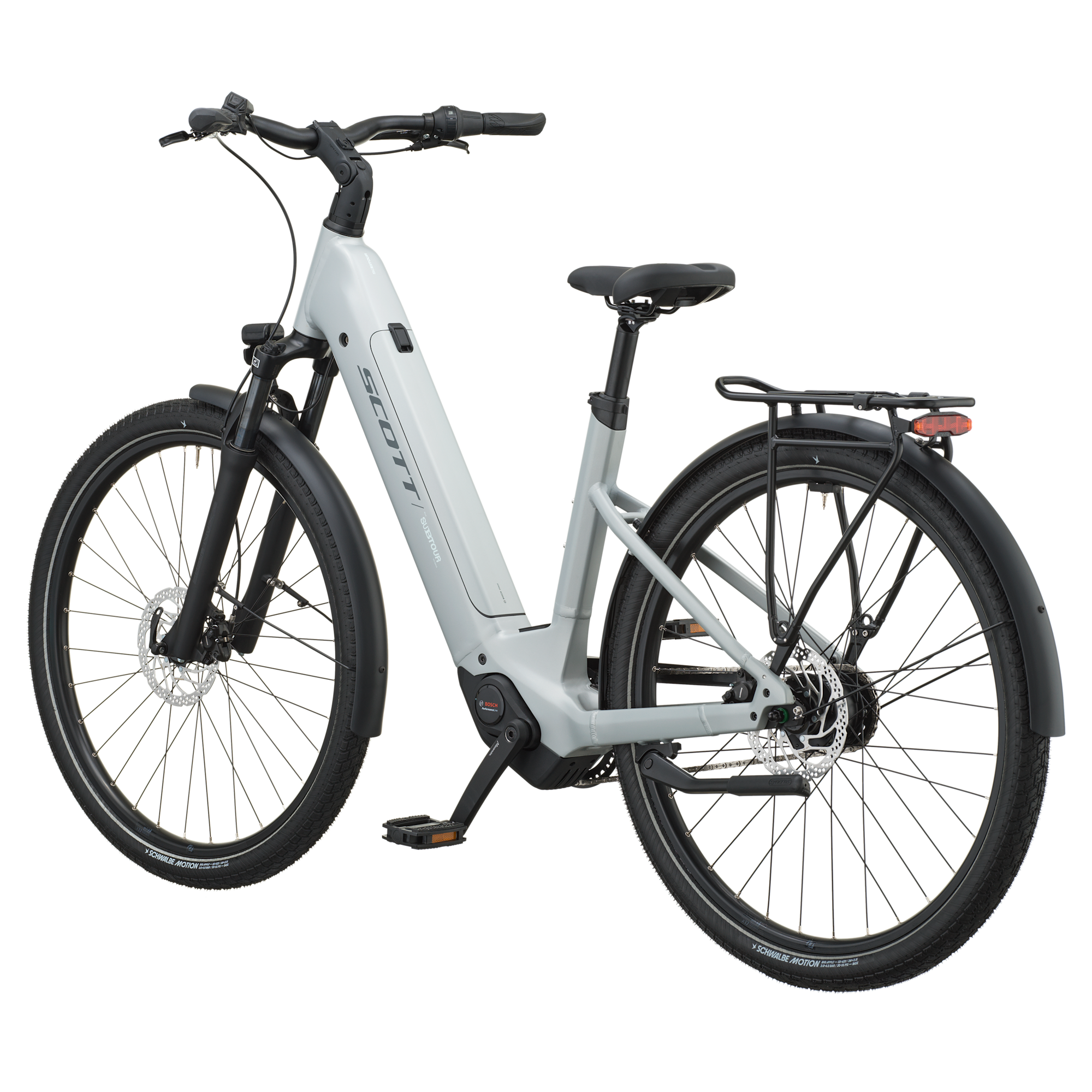

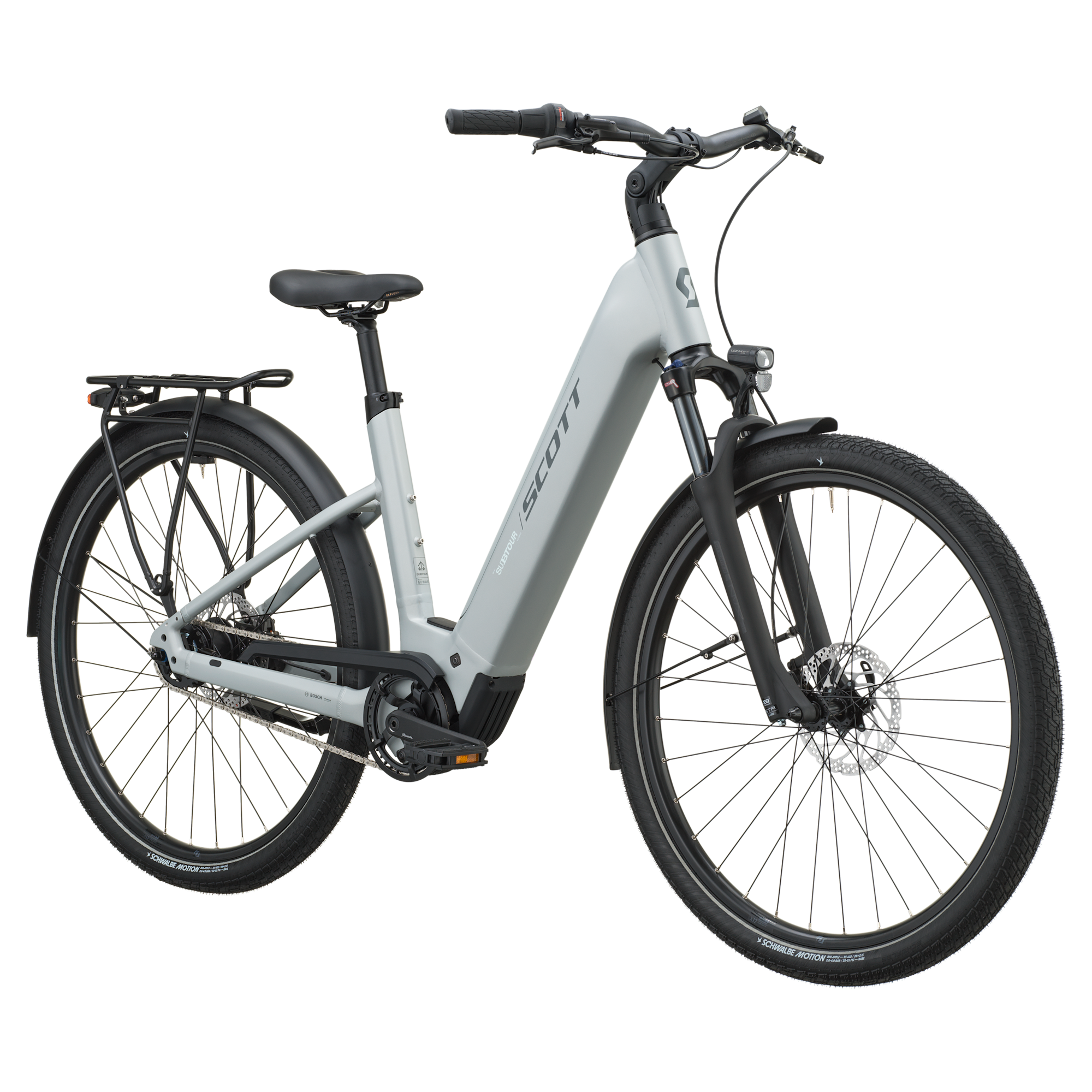

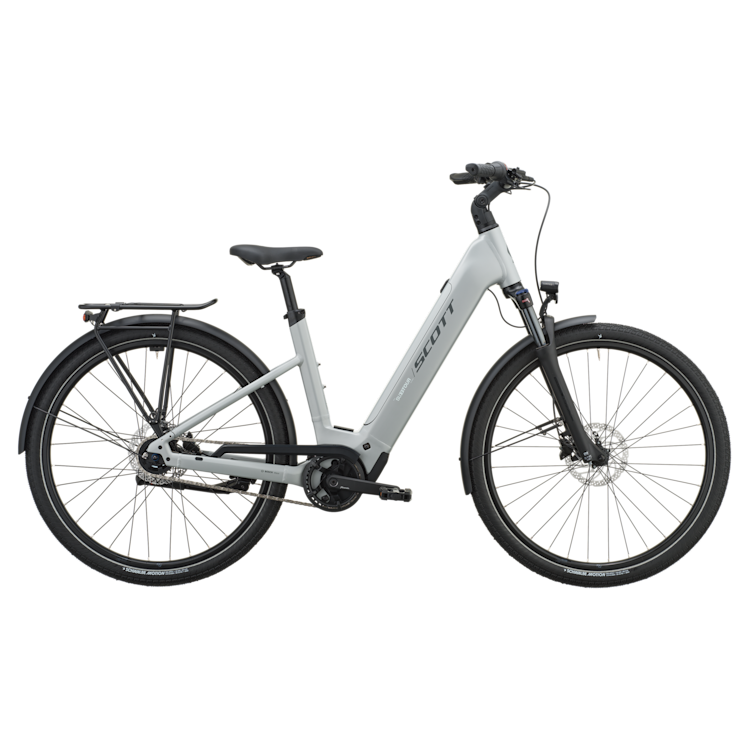

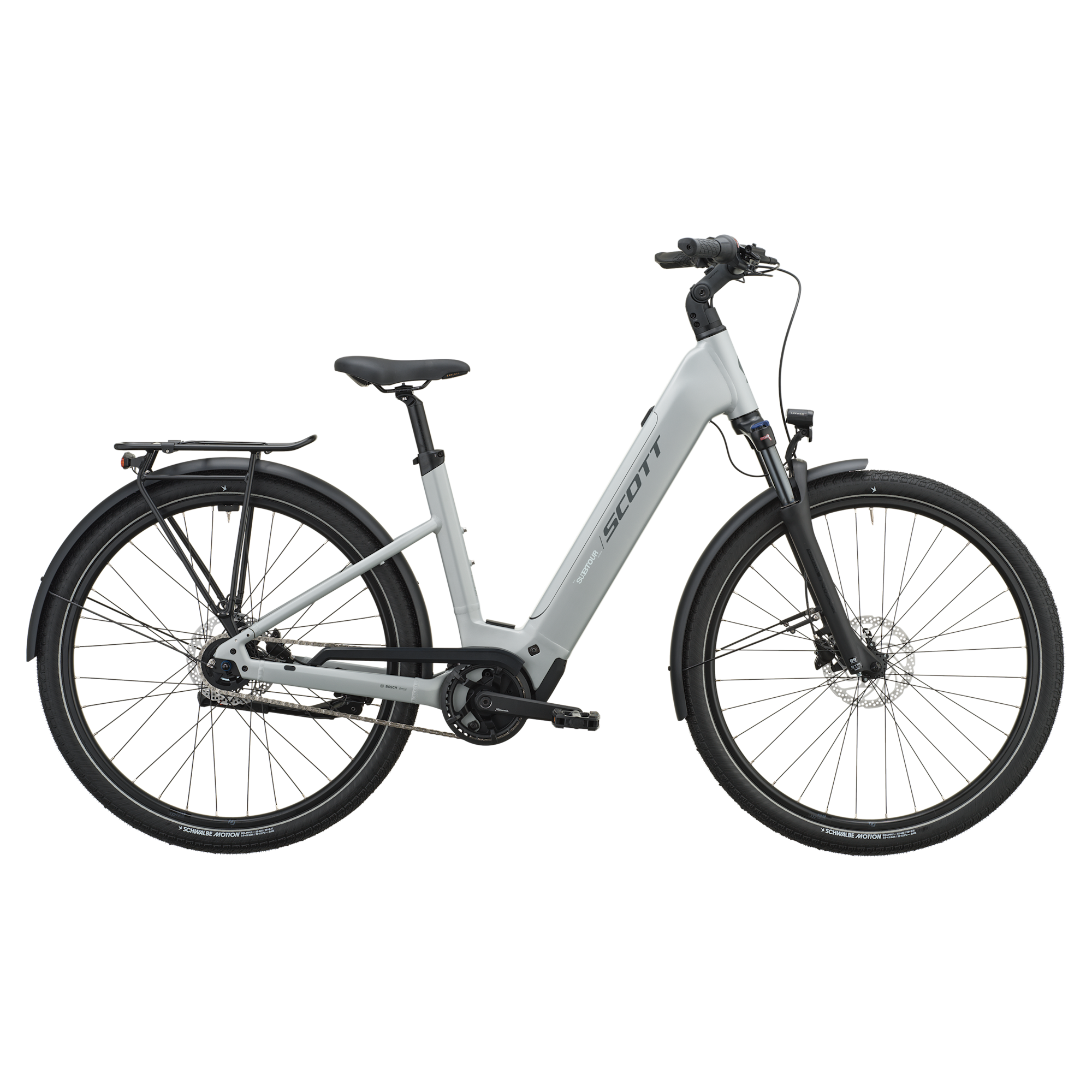

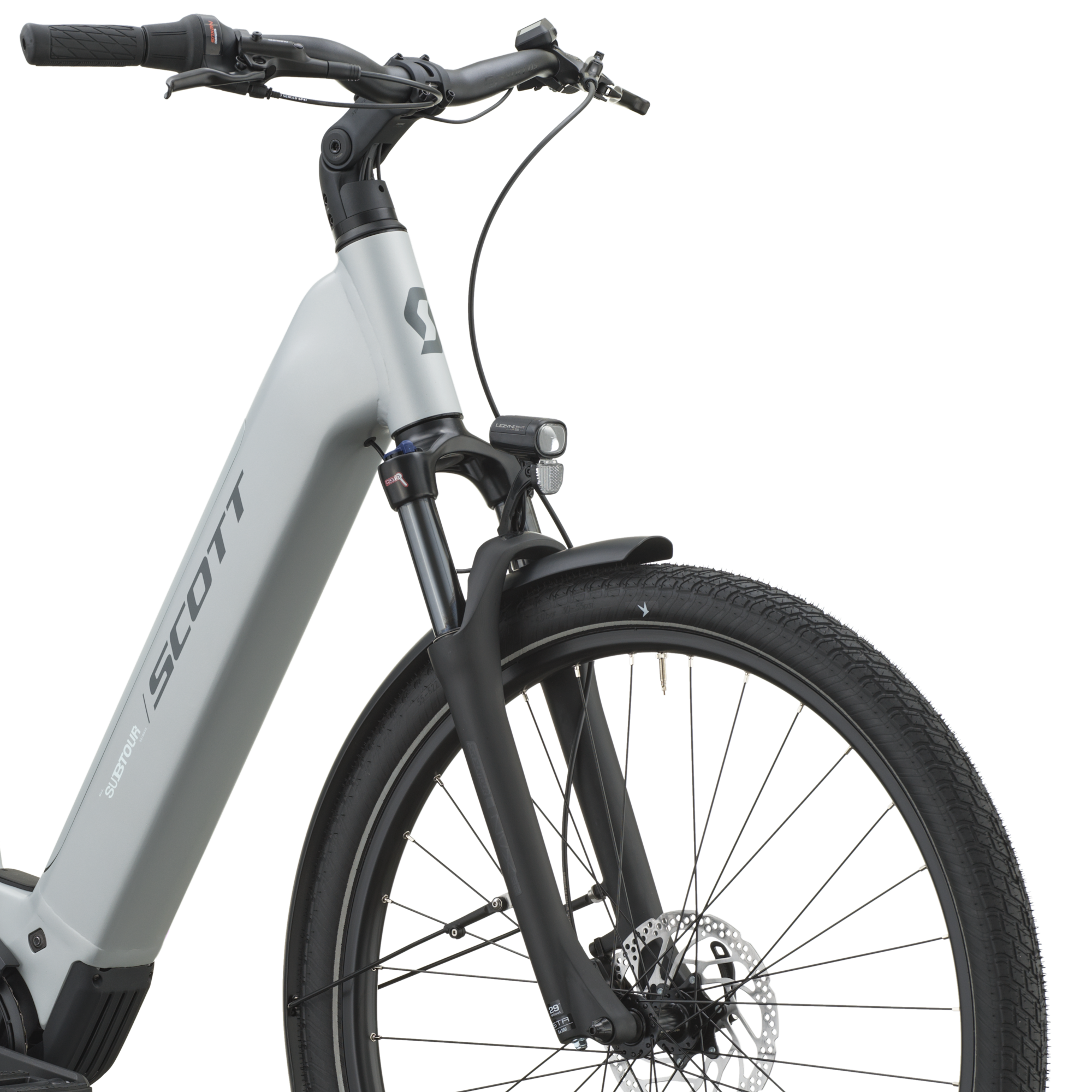

Scott Sub Tour 50 Wave Bike
Model : 427722
Key Features
- Low step-through alloy frame
- Bosch Performance Line motor, 75Nm
- Removable Bosch PowerTube 540Wh
- Shimano Nexus Inter 5e internal gear hub
- Racktime rack, SNAPIT 2.0, KID'nCARRY, 30kg
- Shimano 2 piston brakes
- SR Suntour front fork, 100mm
- Adjustable stem with SP Connect
- Lezyne front and rear lights
- Schwalbe Big Apple Performance tires
1. Color : cloud grey
2. Size
-
The SCOTT SUB Tour 50 Wave E-Bike delivers a confident, comfortable riding experience that elevates daily city riding. Its low step-through frame makes mounting and dismounting a breeze.
Power comes from a Bosch Performance motor paired with a removable 540Wh battery, delivering smooth, natural‑feeling acceleration and ample range for any city journey.
The chain‑driven drivetrain provides reliable, efficient power transfer, while several assist modes let you decide the support you need for commuting, coffee runs, or escaping traffic congestion. An internal gear hub shields the gears from the elements, further reducing service intervals.
The stem is fully adjustable, allowing you to shift between a relaxed, comfortable posture and a sportier position. Integrated with an SP connection, you can securely mount your phone for hands‑free navigation, keeping directions in clear view at all times.
The rear rack supports up to 30kg and is compatible with Racktime SNAPIT 2.0 and KID'n’CARRY systems, ideal for carrying groceries, gear for the day or attaching a child seat. The front light is positioned on the fork to free up space for a front basket, giving you additional flexibility for carrying items.
The SUB Tour 50 Wave complements your daily routine with a comfortable and controlled ride.
Please note that bike specifications are subject to change without prior notice. -
Frame
Alloy S-XL=29", 6061 Alloy custom butted tubing, Top extraction battery, 135mm with 46mm Beltline -
Travel
100mm -
Fork
SR Suntour NVX 32 5TA COIL LO -
Drive Unit
Bosch Performance Line (BDU346Y)
-
Battery
Bosch PowerTube 540Wh -
Display
Bosch Purion 200 -
Charger
Bosch 2A Charger 230V -
Rear Derailleur
Shimano Nexus Inter 5e -
Shifters
Nexus 5 Revo Shifter -
Crankset
Miranda Virage 170mm -
Chainguide
Chaincase cover -
Chain
KMC Z1 -
Cassette
Shimano CSC700027 27T -
Brakes
Shimano BR-MT200 2-Piston -
Front Disc Rotor
Shimano SM-RT30 CL, 180mm -
Rear Disc Rotor
Shimano SM-RT30 CL, 160mm -
Grips
Urban Comfort -
Handlebar
Syncros UC3.0 680mm, Rise 26mm, Backsweep 30° -
H'stem
JD, Adjustable, 31.8*90 mm −10°~+60°, SP Connect -
Seatpost
Syncros M3.0, 31.6mm, 350mm -
Seat
Selle Royal Explora Moderate Wide 195mm -
Headset
Feimin, 28.8-56-62(39.8/30), H887 Bearing Cup -
Front Hub
Shimano HBQC400B58LL, 5x100mm -
Spokes
Stainless Black 13G -
Front Rim
X18 Disc -
Rear Rim
X18 Disc -
Front Tire
Schwalbe Big Apple Performance, 55-622 -
Rear Tire
Schwalbe Big Apple Performance, 55-622 -
Front Light
Lezyne Mini Lite STVZO E350 -
Rear Light
Lezyne Superbright STVZO -
Rack
Racktime carrier SNAPIT 2.0 30Kg KID'n'CARRY Ready -
Fender
Metasol 65 -
Pedals
Marwi SP-827 -
Extras
Ursus U-Mount Kickstand -
Approx weight in KG
30.8 -
Approx weight in LBS
67.90 -
Max. System Weight
160kg
The overall weight includes the bike, the rider, the equipment and possible additional luggage.

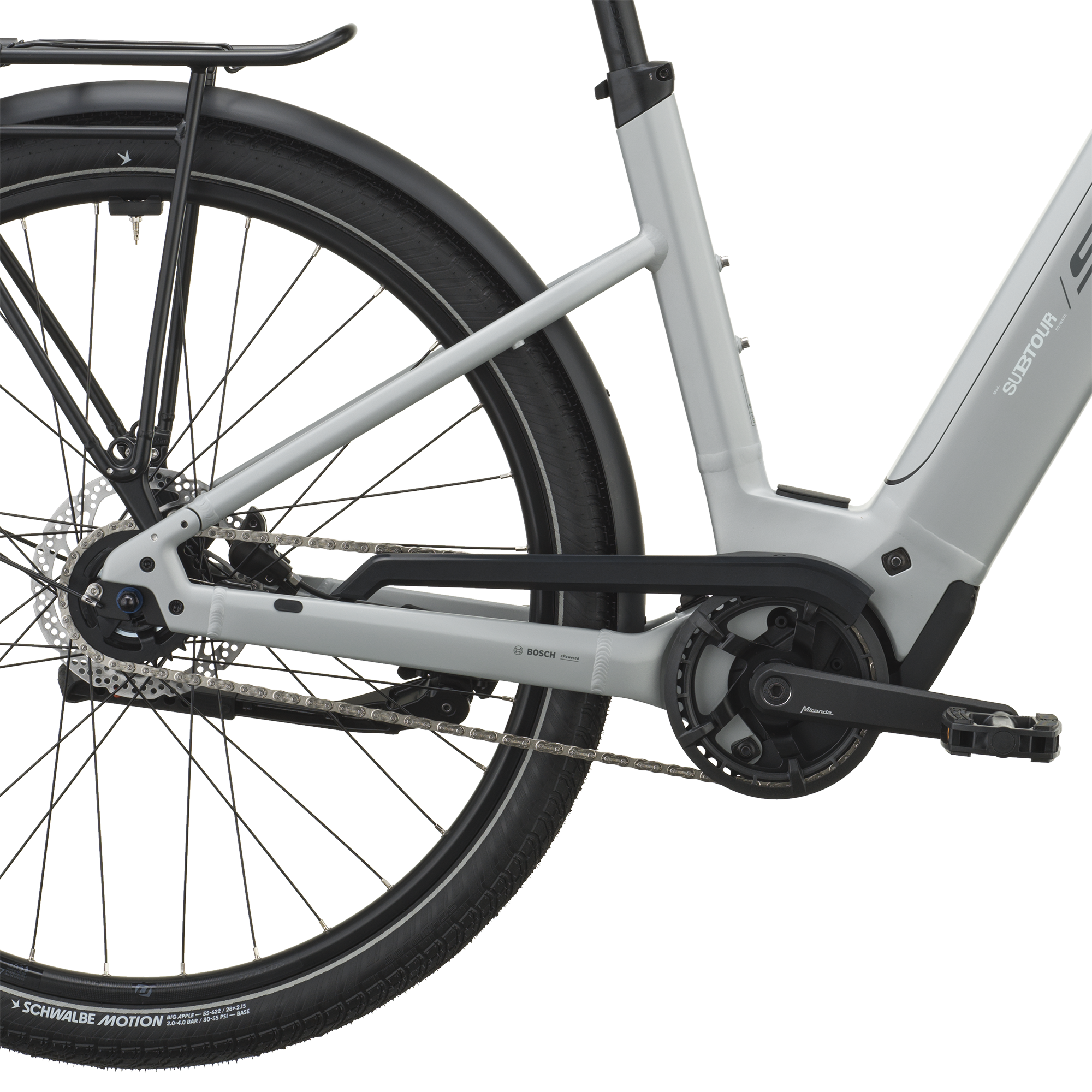

Shimano Nexus Internal Gear Hub
Designed to keep your ride simple. The Shimano Nexus internal gear hub provides smooth, reliable shifting to help make every journey effortless. By housing the gears inside the hub, the system is better protected from the elements and everyday wear, helping reduce maintenance while delivering dependable performance. Combined with a durable chain drivetrain, it's built to handle the demands of everyday riding with ease.

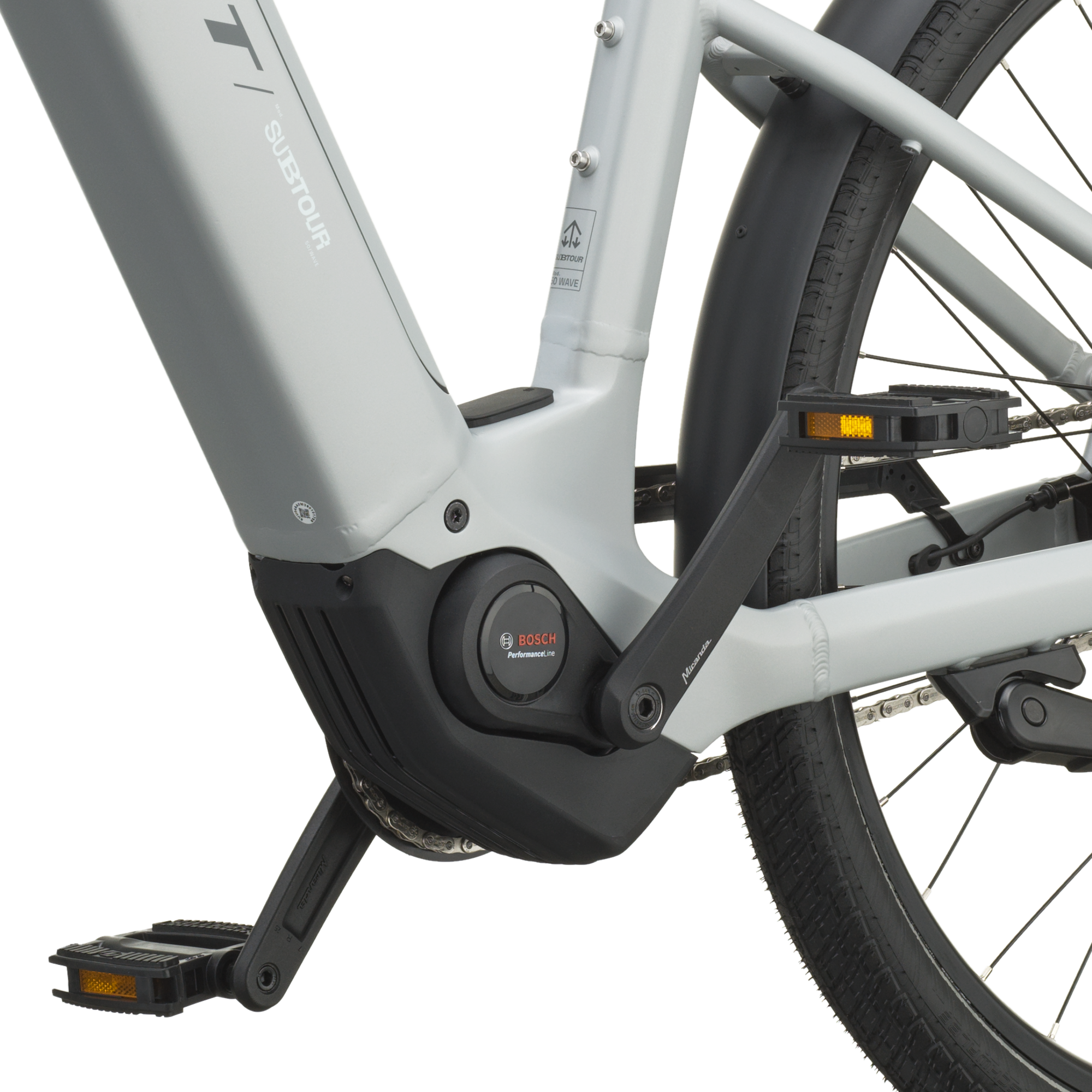

Bosch Performance Motor and 540 Wh Battery
Confident support for every ride. Delivering up to 75 Nm of torque, the Bosch Performance motor provides smooth, intuitive support for everything from daily commuting to weekend adventures. Combined with a removable 540 Wh Bosch battery, it offers the range and flexibility to confidently take on city streets and routes beyond.
SUB GEOMETRY
With diverse needs in mind, we have designed the bike’s geometry with two frame shapes, a more classic frame and a low step-through called “wave”, which is easier to mount and dismount. Pick the one that fits best suits you.

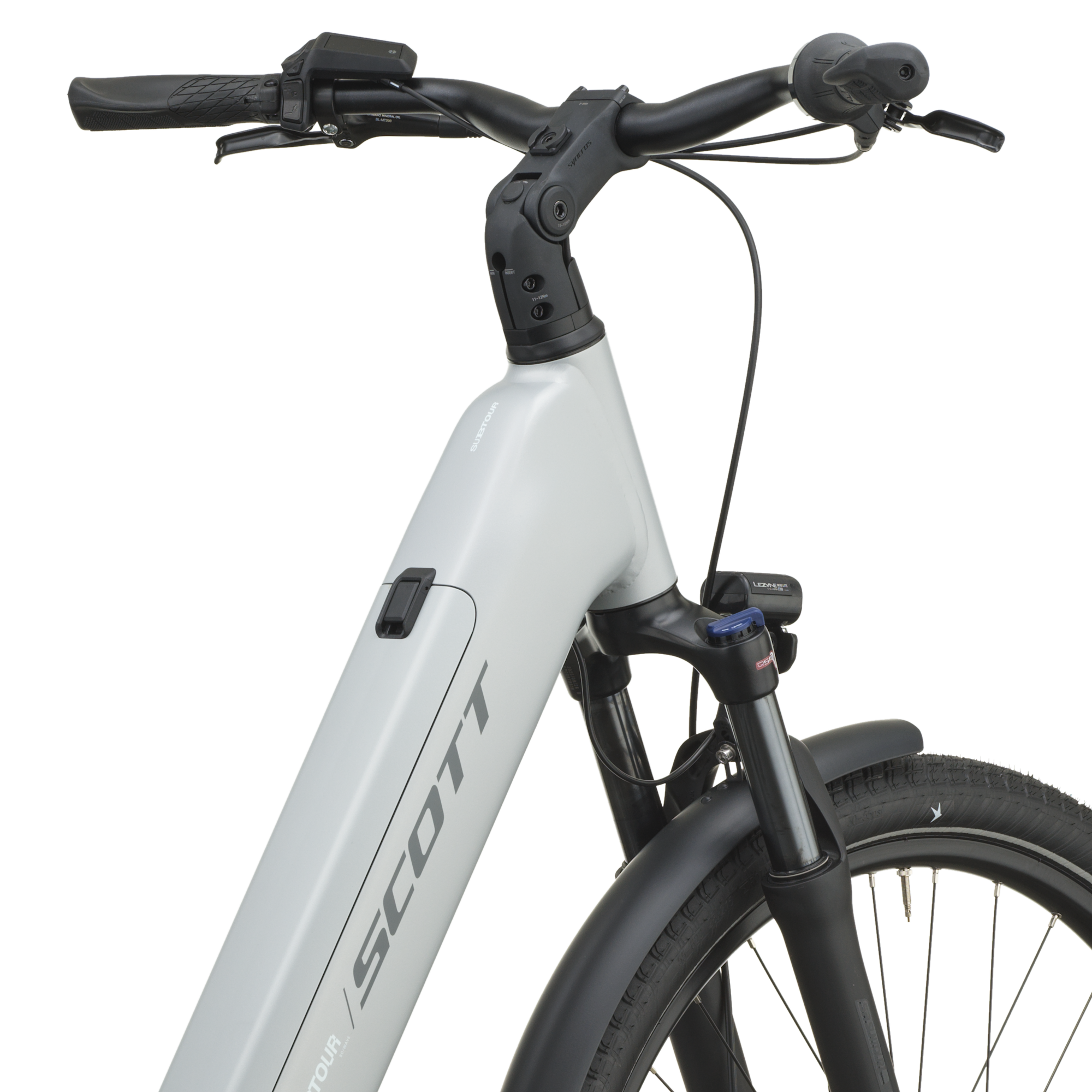

Adjustable Stem with SP Connect
A setup that adapts to you. The adjustable stem makes it easy to find a comfortable riding position that suits your needs. With an SP Connect mount integrated directly into the stem, your smartphone stays securely in place, keeping navigation and ride information within easy view.

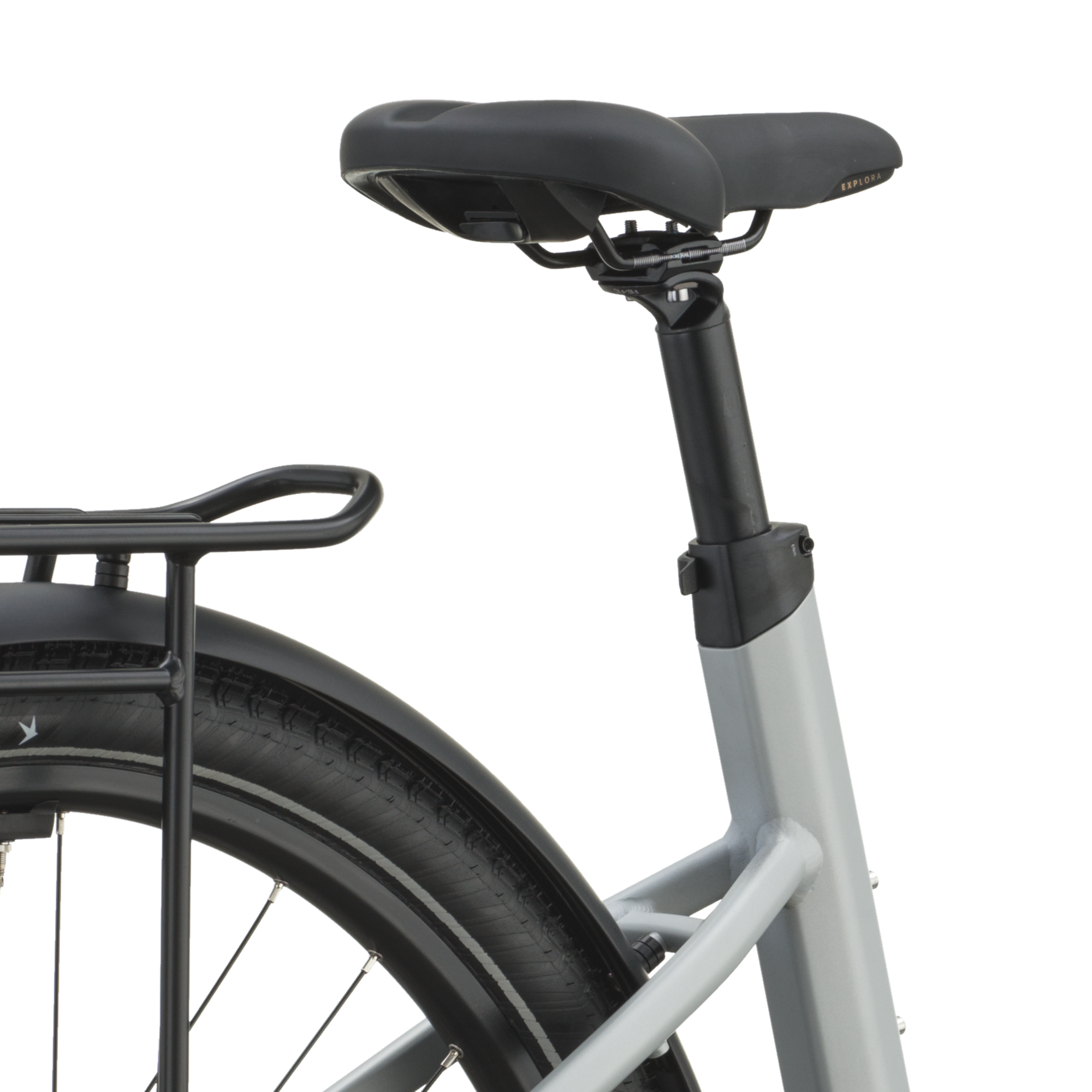

Rear Rack and Lights
Ready for everyday and beyond. Whether you're carrying groceries, heading to work, or attaching a child seat, the rear rack is designed to adapt to your needs. Compatible with Racktime SNAPIT 2.0 and KID'n'CARRY systems, it supports loads of up to 30 kg for added versatility. Integrated front and rear lights help you see and be seen in changing conditions.
