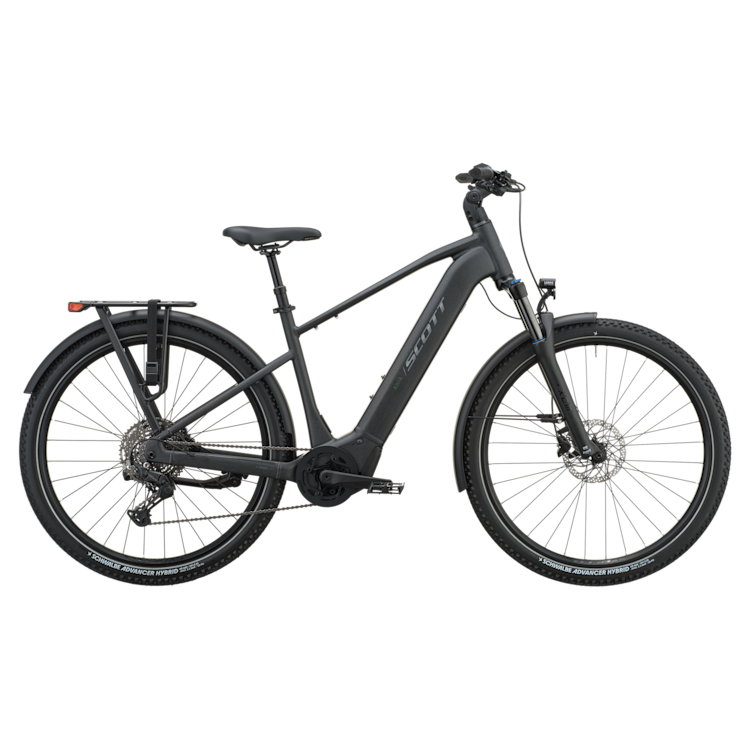

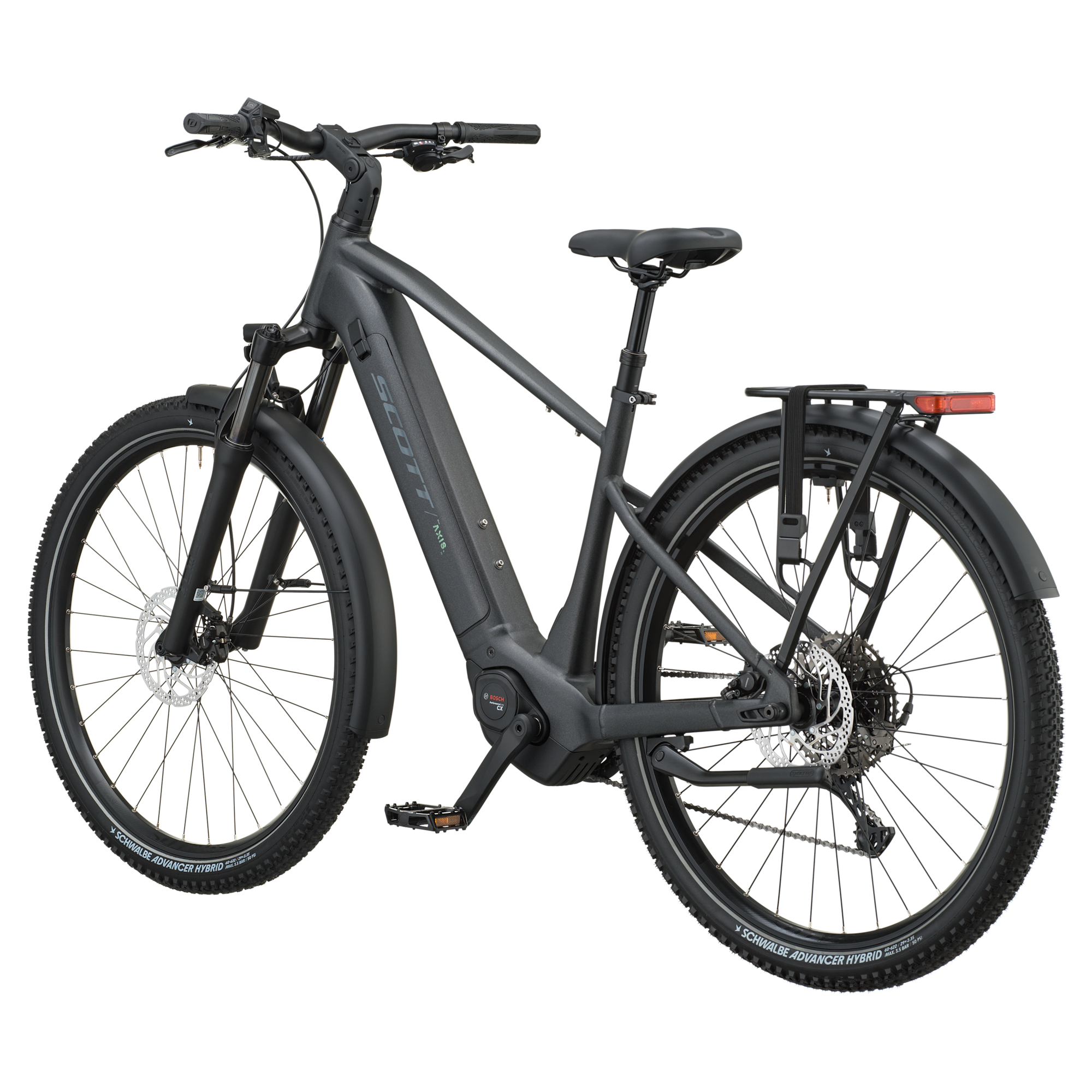

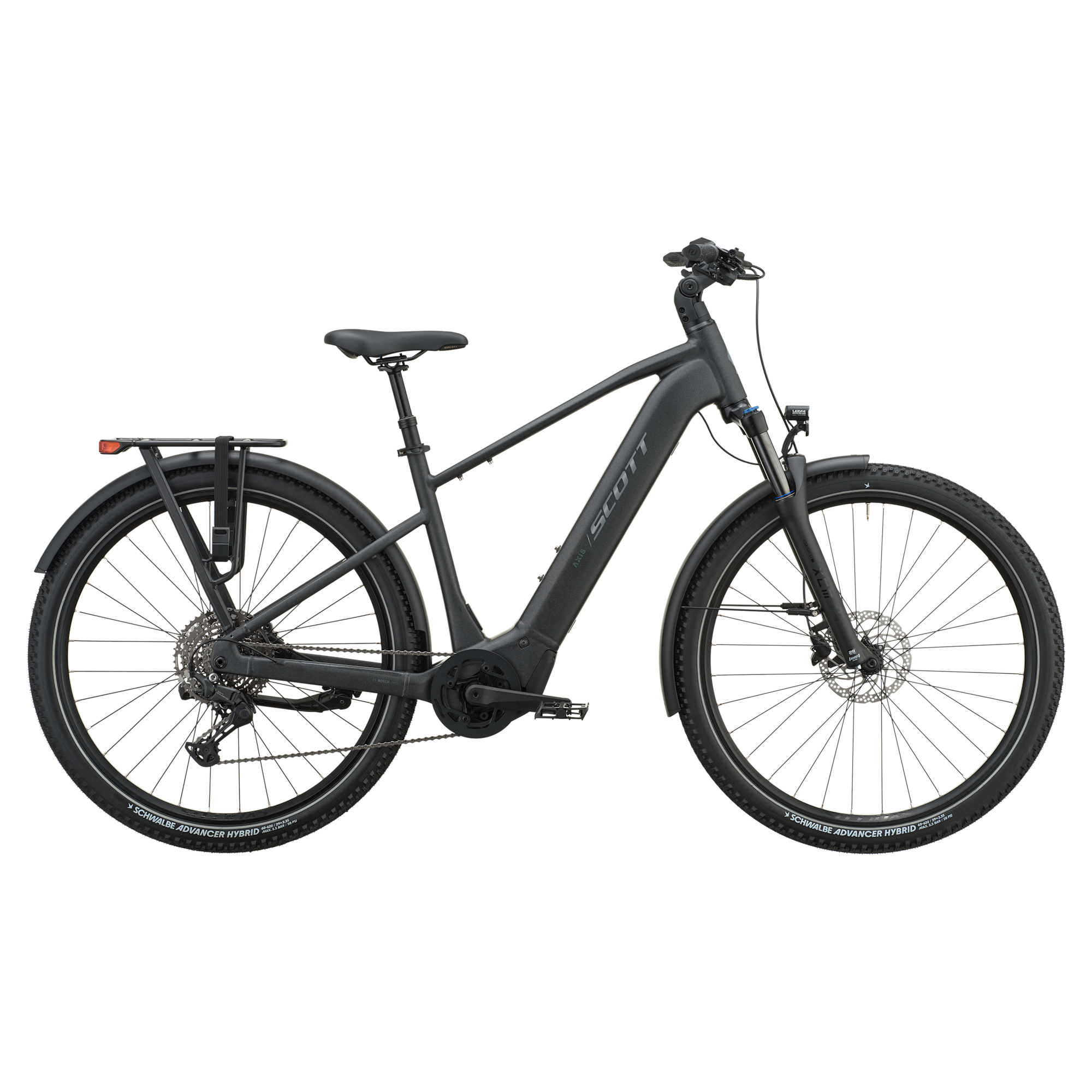

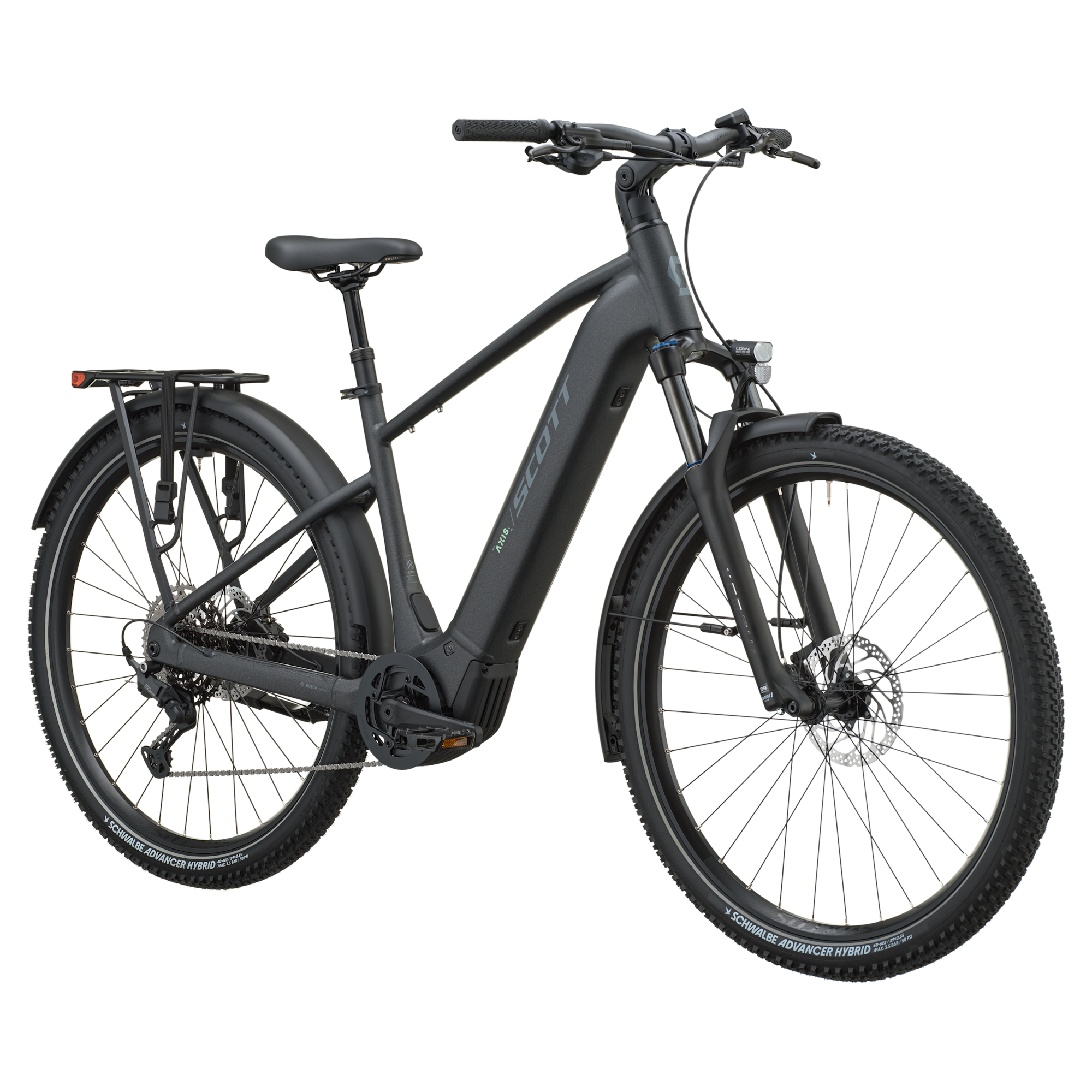

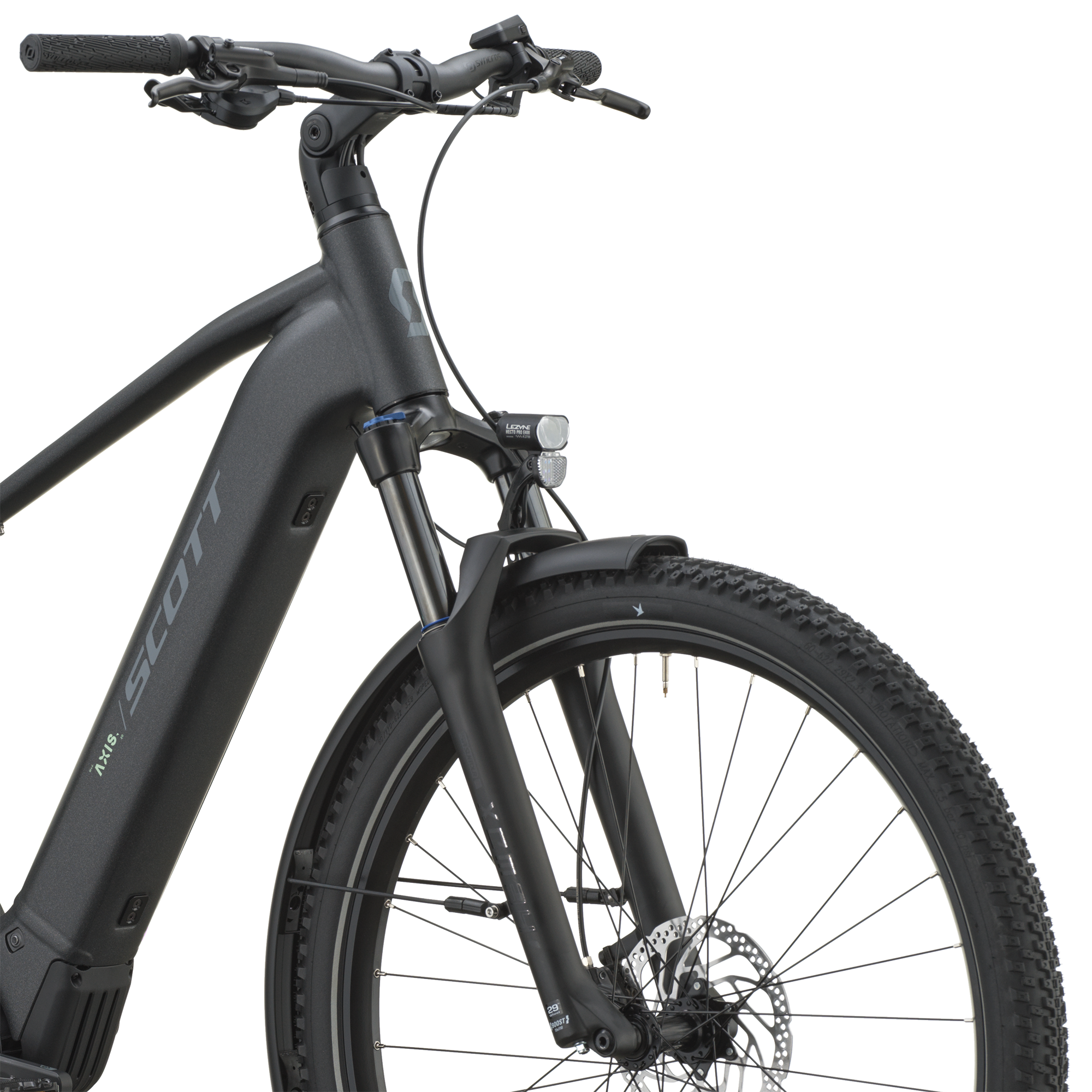

SCOTT Axis 20 Bike
Model : 427655
Key Features
- Versatile All-Terrain E-Bike
- Enjoy the climb and descent with 120mm front suspension and Schwalbe's durable Advancer tires
- Ready for any adventure: Power up hills with the Bosch Performance Line CX motor (up to 100Nm)
- Ride all day with the generous and removable Bosch 720Wh Battery and add a Bosch Range Extender for even longer journeys
- Easily set up your riding position with an adjustable stem, dropper seat post and phone integration on the handlebars (SP Connect)
- Carry picnics, warm layers or little ones - the Racktime rear carrier is SNAPIT 2.0, KID'nCARRY ready (30kg capacity) and a trailer can be attached on the rear axle
- Power forward when it counts ( Shimano 10 speed derailleur) and stop with confidence when you need to (Shimano disc brakes)
- Dusk doesn't have to stop you - see your way and be seen by others with front and rear lights
1. Color : granite black
2. Size
3,799.00 €
Adding product to cart... The product has been added to the cart. The product has not been added to the cart.
You might also like
Delivery within 2-3 working days after order placed
Free shipping on orders above € 99
Free return within 14 days
-
The perfect bridge between urban cruising and mountain biking. The SCOTT Axis 20 is designed for versatility: a Bosch Performance CX motor paired with a removable 720Wh battery, delivering the power you need for weekend adventures, while an integrated SP connection on the stem lets you attach and secure your phone in seconds, so it's always with you—directions always in view.
Want to find your perfect fit? The stem is fully adjustable for a relaxed riding position or a sporty position to get up to speed.
Traveling with the family or hauling extra gear? The rack is compatible with Racktime SNAPIT 2.0, KID'n’CARRY systems and supports 30kg, while the Syncros Thru-Axle supports towing a cargo trailer. Bring your child, dogs, or any cargo you'd like. The front fork light has been positioned so that a front basket can be added, giving you illumination without sacrificing utility.
Choose between two sleek frame shapes, where the wave style offers a lower standover height for effortless mounting and remounting. Each frame style maintains Axis' signature ride and handling. Ride Axis.
Please note that bike specifications are subject to change without prior notice. -
Frame
Alloy S-XXL=29", 6061 Alloy custom butted tubing, Side extraction battery, UDH Interface, 12x148mm with 52mm Chainline -
Travel
120mm -
Fork
SR Suntour XCM34 BOOST COIL LO -
Drive Unit
Bosch Performance Line CX (BDU384Y)
-
Battery
Bosch PowerTube 720Wh -
Display
Bosch Purion 200 -
Charger
Bosch 4A Charger 230V -

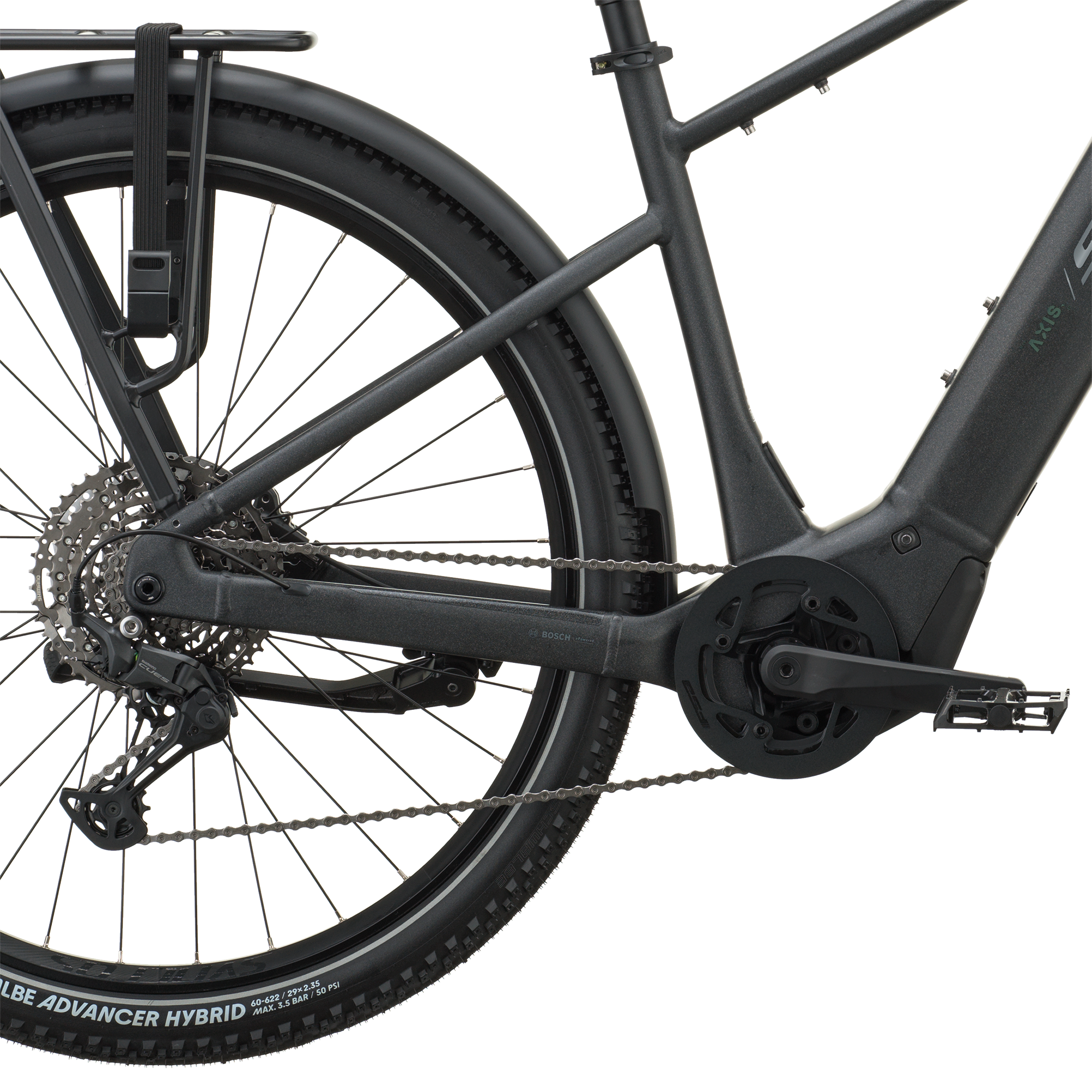

Rear Derailleur
Shimano Cues RD-U6000 10/11-Speed -
Shifters
Shimano Cues SL-U6000 With Display -
Crankset
FSA CK 220 165mm -
Chainring
FSA 36T with Chain Guard -
Chain
Shimano CN-LG500 -
Cassette
Shimano Cues CS-LG400, 10-Speed 11-48T -
Brakes
Shimano BR-MT200 2-Piston -
Front Disc Rotor
Shimano SM-RT30 CL, 180mm -
Rear Disc Rotor
Shimano SM-RT30 CL, 180mm -
Grips
Urban Comfort -
Handlebar
Syncros UC3.0 680mm, Rise 12mm, Backsweep 15° -
H'stem
JD, Adjustable, 31.8*90 mm −10°~+60°, SP Connect -

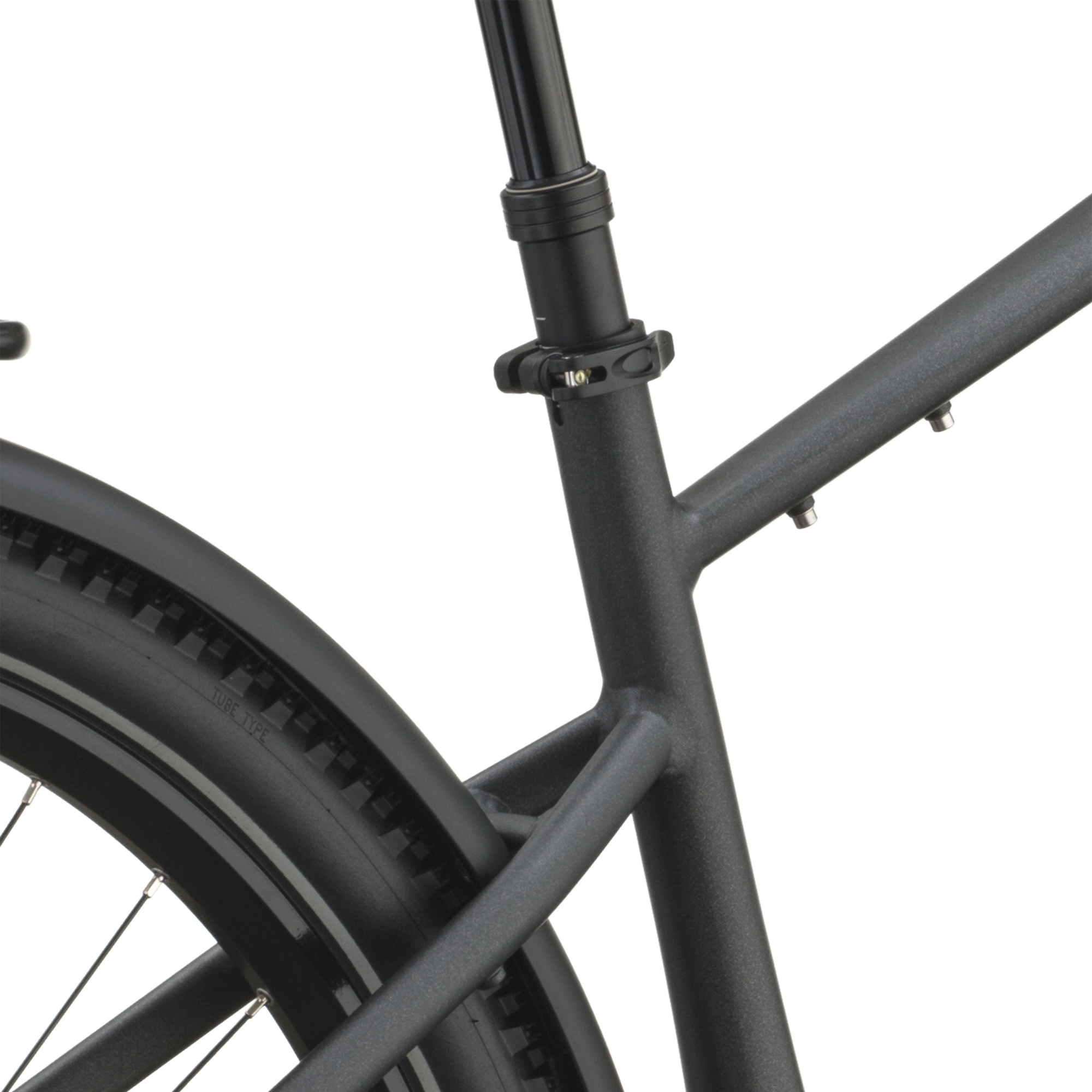

Seatpost
Syncros Dropper Post SP-M302-AL2, 31.6mm -
Seat
Selle Royal Explora Moderate 170mm -
Headset
Feimin, 28.8-56-62(39.8), Sealed Bearing, Alloy Cup -
Front Hub
Shimano HB-TC500 15x110mm -
Rear Hub
Shimano FH-TC500 148mm -
Spokes
Stainless Black 13G -
Front Rim
X18 Disc -
Rear Rim
X18 Disc -
Front Tire
Schwalbe Advancer 60-622 -
Rear Tire
Schwalbe Advancer 60-622 -
Front Light
Lezyne Hecto Pro STVZO E400 -
Rear Light
Lezyne STVZO Integrated -
Rack
Racktime carrier SNAPIT 2.0 30Kg KID'n'CARRY Ready -
Fender
Curana Apollo 75 -
Pedals
VP VPE-506 -
Extras
Ursus U-Mount Kickstand -
Approx weight in KG
28.2 -
Approx weight in LBS
62.17 -
Max. System Weight
160kg
The overall weight includes the bike, the rider, the equipment and possible additional luggage.
Rear Rack and Integrated Lights
Ready for everyday and beyond. Whether you're carrying groceries, heading to work, or attaching a child seat, the rear rack is designed to adapt to your needs. Compatible with Racktime SNAPIT 2.0 and KID'n'CARRY systems, it supports loads of up to 30 kg for added versatility.Integrated front and rear lights help you see and be seen in changing conditions, while the rear light remains visible even when the rack is loaded thanks to its wrap-around design.

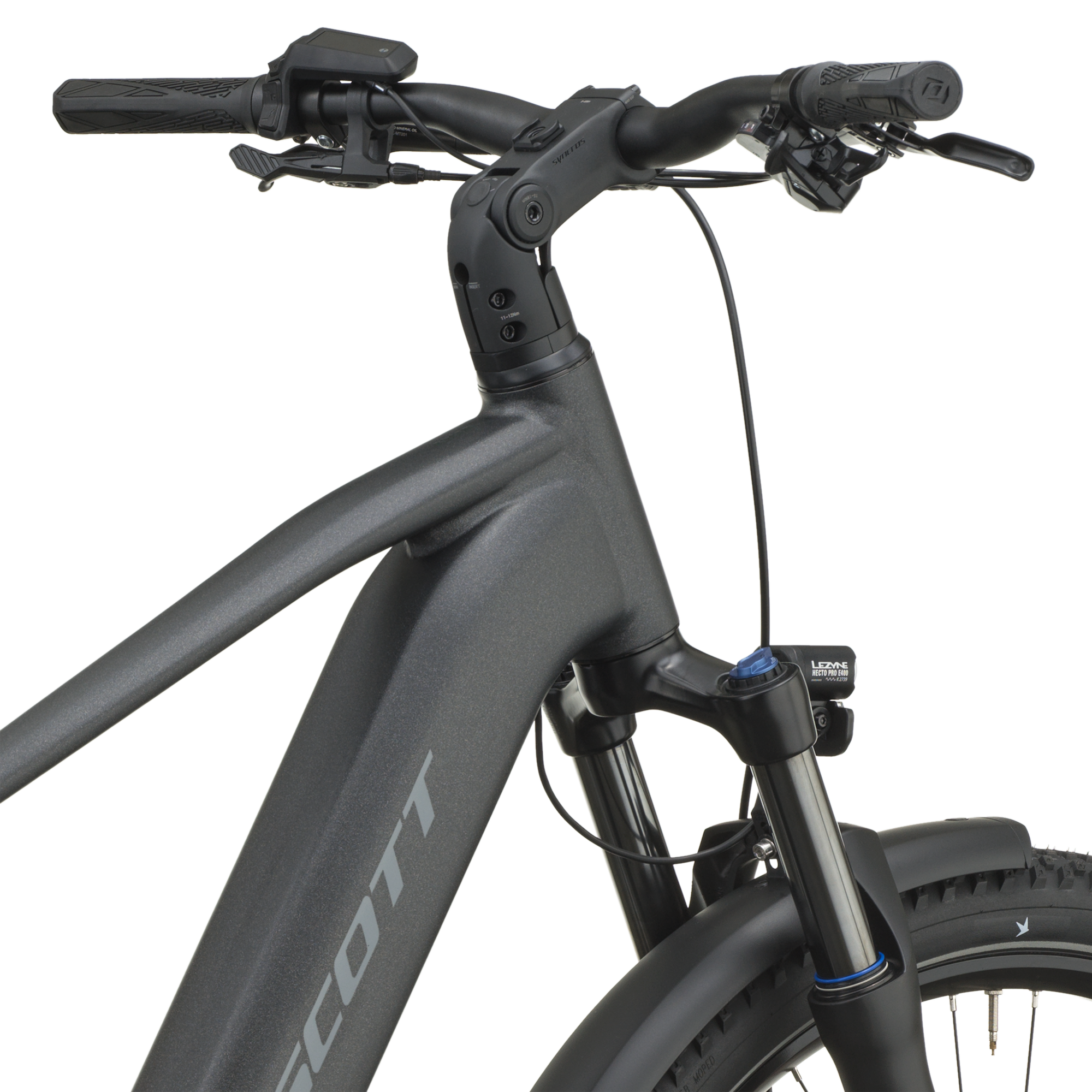

Adjustable Stem with SP Connect
A setup that adapts to you. The adjustable stem makes it easy to find a comfortable riding position that suits your needs. With an SP Connect mount integrated directly into the stem, your smartphone stays securely in place, keeping navigation and ride information within easy view.

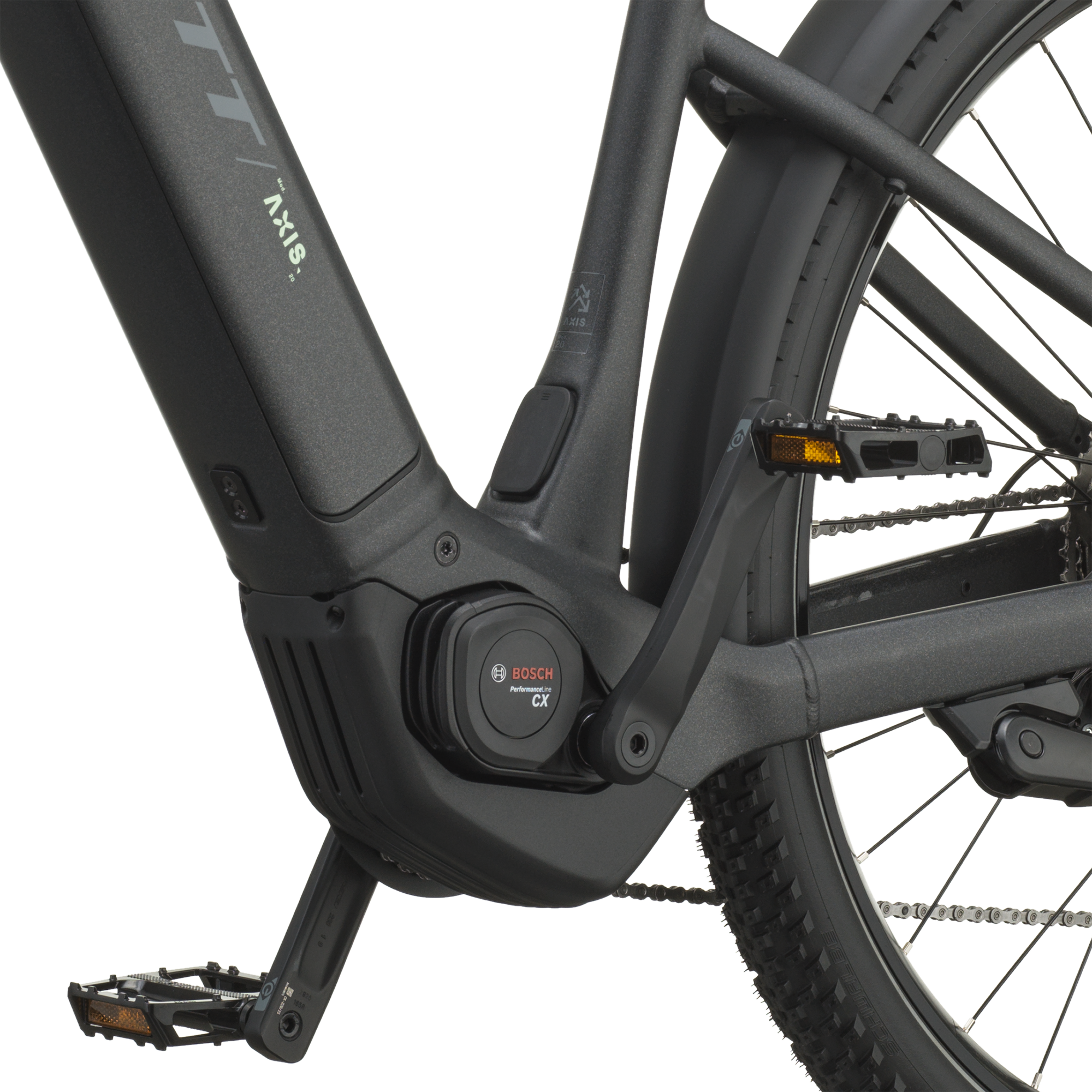

Bosch Performance CX Motor and 720 Wh Battery
Confidence to go further. The Bosch Performance CX drive unit delivers up to 100 Nm of torque, providing powerful, natural-feeling support when you need it most. Paired with a removable 720 Wh battery, it offers the range and flexibility to take on everything from daily commuting to weekend adventures. And with Bosch PowerMore 250 range extender compatibility, there's always the option to go even further.
SYNCROS ADAPTER FOR BIKE TRAILER
Need to bring your kids or pets along for the ride or just carry your grocery shopping? No problem! Our Syncros team has designed a thru-axle which enables you to tow any bike or cargo trailer so you can enjoy time with your loved ones on your e-bike.
Comfort On and Off Road
Axis is your companion to tackle any adventure in the outdoors.
Equipped with a 120mm front fork, rugged Schwalbe tires, strong Curana fenders and a dropper post to raise and lower your saddle more easily, your ride is guaranteed to be a comfy one.
AXIS GEOMETRY
With diverse needs in mind, we have designed the bike’s geometry with two frame shapes, where the wave style offers a lower standover height for effortless mounting and remounting. Pick the one that best suits you.
