SCOTT Ransom 930 Bike
Model : 280548
Key Features
- Ransom Alloy SL Frame
- RockShox Zeb R 170mm
- X-Fusion Nude, TwinLoc, 170mm
- SRAM NX Eagle 12 Speed
- Shimano 4 Piston Disc Brakes
- Syncros X-30S TR Rims
- Maxxis Folding Tires
- Syncros Dropper Post and Parts
1. Size
SPECIFICATIONS
- The Ransom. 170mm of trail munchin', climb crushing, stage winning all day pinning mountain biking excellence. The 930 comes equipped with our TwinLoc Suspension System, a SRAM eagle groupset and Syncros components to help you get away with murder, at a fraction of the cost.
-
Frame
Ransom Alloy SL 6011
Custom butted / VLK Virtual 4 Link kinematic
27.5" (2.6 & 2.8) and 29" (2.4 & 2.6) tire compatible with Geo-BB adj.
TBC Trunnion box construction / Boost 12x148mm -
Fork
RockShox Zeb R Solo Air
15x110mm Maxle stealth axle
42mm offset / Tapered Steerer
Reb. Adj. / 170mm travel -
Rear Shock
X-Fusion NUDE Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Reb. Adj.
Travel 170-120-Lockout / 205X65mm -
Remote System
SCOTT TwinLoc TSP-R Technology
Suspension-Seatpost Remote
below Bar / 3 modes / integ. Grip clamp
-
Rear Derailleur
SRAM NX / Eagle 12 Speed -
Shifters
SRAM SX Eagle Trigger -
Crankset
SRAM X1000 Eagle DUB Boost
32T -
Chainguide
SCOTT Chainguide -
BB-Set
SRAM DUB PF integrated / shell 41x92mm -
Chain
SRAM CN SX Eagle -
Cassette
SRAM NX / PG1210 / 11-50 T -
Brakes
Shimano MT420 4 Piston -
Rotor
Shimano SM-RT30 / CL / 203/F and 180/R -
Handlebar
Syncros Hixon 1.5 Rise / Alloy 20140D.B.
20mm rise / 8° / 800mm
Syncros Pro lock-on grips -
H'stem
Syncros XM1.5 / Alloy 6061
integrated Spacer & Top Cap / 31.8mm / 0° / 1 1/8" -
Seatpost
Syncros Duncan 2.5 Dropper Post
31.6mm / S 125mm / M 150mm / L & XL 170mm -
Seat
Syncros Kaslo 2.0
Crmo Rails -
Headset
Syncros OE Press Fit E2 / Tapered 1.5"-1 1/8"
OD 50/62mm / ID 44/56mm -
Front Hub
Formula CL-811 / 15x110mm -
Rear Hub
Formula CL-148S / Boost 12x148mm -
Spokes
Stainless Black 15G / 1.8mm -
Rims
Syncros X-30S / 32H / 30mm / Sleeve Joint
Tubeless ready -
Front Tire
Maxxis Assegai / 2.6" / 60TPI Folding Bead
EXO / TR / Dual -
Rear Tire
Maxxis Dissector / 2.6" / 60TPI Folding Bead
EXO / TR / Dual -
Extras
RS Zeb Fender -
Approx weight in KG
15.50 -
Approx weight in LBS
34.17 -
Max. System Weight
128 kg
The overall weight includes the bike
the rider
the equipment
and possible additional luggage.
Use
No Radar Chart Available Currently
Technologies
Athlete
AWARDS AND MEDIA
Documents

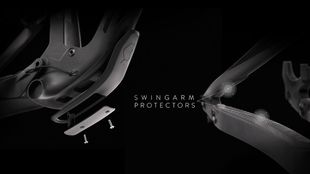

Protecting the Ransom's frame was an integral part of the project. We've integrated a clever DT protector under the BB and along the downtube, and have also implemented a newly developed, noise-silencing Chainstay/seatstay protector. A quiet ride is a fast ride.
With our mountain bikes, we try to achieve ultimate versatility. These specific models can switch from 27.5" to 29" or from 24" to 26" wheels with nothing more than the flip of a chip. No need to change the fork, all you need to do is flip a shock mount chip, change your wheels and off you go. The flip chip allows us to maintain a similar BB height when switching from one wheel size to the other which is key to keeping handling similar for both wheel sizes.
