SCOTT Scale 910 AXS Bike
Model : 286318
Key Features
- Scale Carbon HMF Frame
- FOX 32 SC Performance 100mm Fork
- RideLoc 3-Position Remote
- SRAM GX AXS Eagle 12 Speed
- Shimano SLX Disc Brakes
- Syncros X-25 TR Rims
- Schwalbe Racing Foldable Tires
- Syncros Parts
1. 尺码
-
The SCOTT Scale 910 AXS has geometry inspired by racing at the highest level. A SRAM AXS 12-speed drivetrain and Syncros components combine to give you a hardtail that is just itching to finish first.
Please note that bike specifications are subject to change without prior notice -
Frame
Scale 3 Carbon / IMP Technology / HMF
BB92 / SW DM dropouts for Boost 12x148mm
SDS2 advanced Shock & Standing Damping System
ICCR Cable routing -
Fork
FOX 32 SC Float Performance Air Grip 3
3-Modes / 15x110mm QR axle / 44mm offset / tapered steerer
Lockout / Reb. Adj. / 100mm travel -
Remote System
SCOTT RideLoc Technology / below bar remote
3 modes / integ. Grip clamp -
Rear Derailleur
SRAM GX Eagle AXS / 12 Speed
Wireless Electronic Shift System
-
Shifters
SRAM GX Eagle AXS Rocker Controller -
Crankset
SRAM Stylo Eagle DUB
32T -
BB-Set
SRAM DUB PF 92 MTB / shell 41x92mm -
Chain
SRAM CN NX Eagle -
Cassette
SRAM PG1230 / 11-50 T -
Brakes
Shimano SLX M7100 Disc -
Rotor
Shimano SM-RT64 CL / 180/F and 160/R -
Handlebar
Syncros Fraser 1.5 / Alloy 7050 D.B.
T shape Flat / 9° / 740mm
Syncros Pro lock-on grips -
H'stem
Syncros FL1.5
6° / integrated Spacer & Top Cap
2014 Alloy / 31.8mm / 1 1/8" -
Seatpost
Syncros Duncan 1.5 / 10mm offset
31.6x400mm -
Seat
Syncros Belcarra Regular 2.0
CRMO rails -
Headset
Syncros Pro Drop in / Tapered 1.5"-1 1/8"
Bearing diameter size 42mm and 52mm -
Hub (Front)
Formula CL-811 / 15x110mm -
Hub (Rear)
Formula CL-148S / 12x148mm -
Spokes
Stainless Black 15G / 1.8mm -
Rims
Syncros X-25 / 32H / 25mm
Tubeless ready -
Front Tire
Schwalbe Racing Ray 29x2.25" EVO
Super Race / TLE / 67EPI / Addix Speed Grip -
Rear Tire
Schwalbe Racing Ralph 29x2.25" EVO
Super Race / TLE / 67EPI / Addix Speed Grip -
Extras
SRAM AXS Powerpack -
Approx weight in KG
11.10 (with tubes) -
Approx weight in LBS
24.47 (with tubes) -
Max. System Weight
128 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

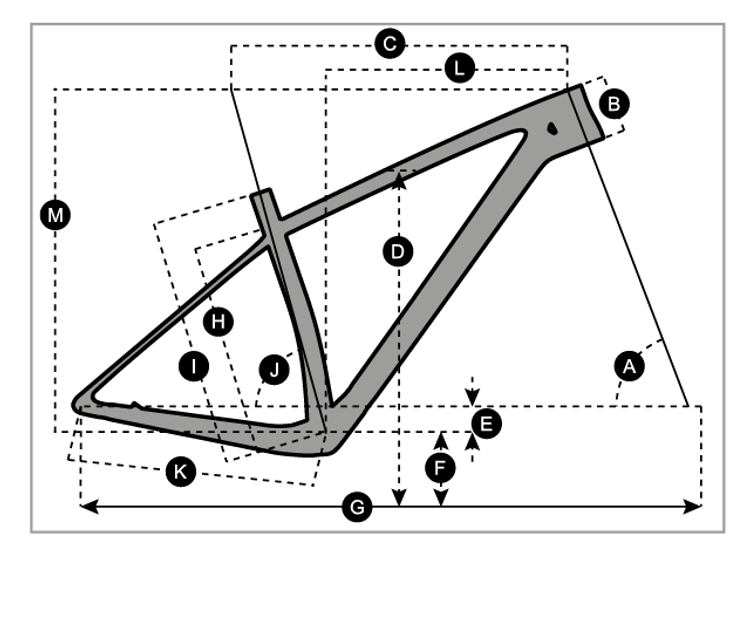

S | M | L | XL | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A | head tube angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | ||||||||||||||
B | head tube length | 95.0 mm | 100.0 mm | 115.0 mm | 125.0 mm | ||||||||||||||
C | top tube horizontal | 575.0 mm | 600.0 mm | 625.0 mm | 650.0 mm | ||||||||||||||
D | standover height | 743.0 mm | 774.0 mm | 800.0 mm | 835.1 mm | ||||||||||||||
E | BB offset | -58.0 mm | -58.0 mm | -58.0 mm | -58.0 mm | ||||||||||||||
F | BB height | 312.0 mm | 312.0 mm | 312.0 mm | 312.0 mm | ||||||||||||||
G | wheel base | 1,076.4 mm | 1,101.8 mm | 1,127.9 mm | 1,153.7 mm | ||||||||||||||
H | BB center to toptube center | 325.0 mm | 375.0 mm | 415.0 mm | 465.0 mm | ||||||||||||||
I | BB center to top of seattube | 390.0 mm | 440.0 mm | 480.0 mm | 530.0 mm | ||||||||||||||
J | seat angle | 73.6 ° | 73.6 ° | 73.6 ° | 73.6 ° | ||||||||||||||
K | chainstay | 425.0 mm | 425.0 mm | 425.0 mm | 425.0 mm | ||||||||||||||
L | reach | 398.7 mm | 422.3 mm | 443.2 mm | 465.5 mm | ||||||||||||||
M | stack | 599.0 mm | 603.6 mm | 617.7 mm | 627.1 mm | ||||||||||||||
N | stem length | 60.0 mm | 70.0 mm | 80.0 mm | 90.0 mm | ||||||||||||||
0 | trail | 83.9 mm | 83.9 mm | 83.9 mm | 83.9 mm |
