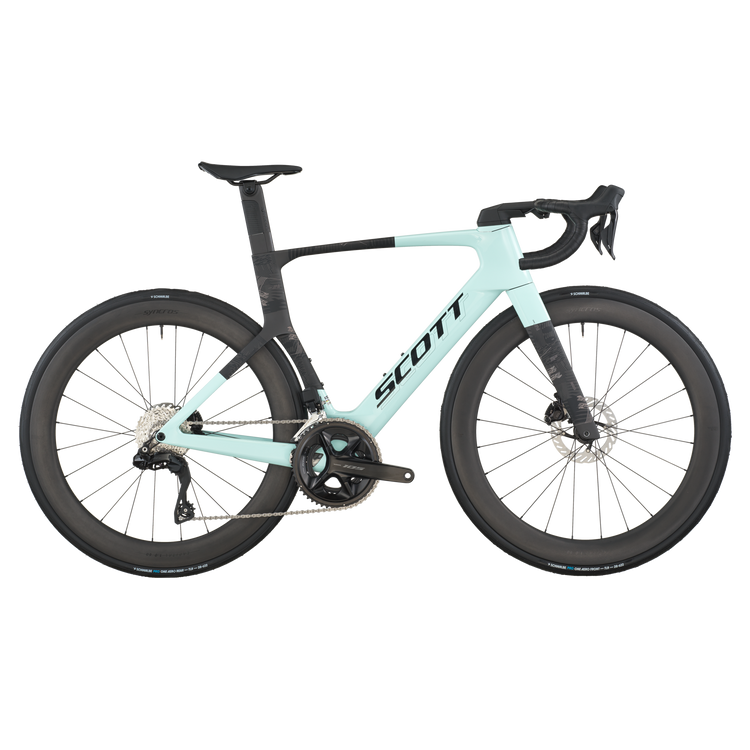

SCOTT Foil RC 20 Bike
Model : 425342
Key Features
- FOIL Disc HMX Carbon Frame
- FOIL Disc HMX Fork
- Shimano 105 Di2 24 Speed Drivetrain
- Syncros Capital 1.0 60 Wheelset
- Schwalbe PRO ONE Aero TL-Tires
- Syncros Carbon/Alloy Parts
1. Color : gelato blue/carbon black
2. Size
-
Aero, Lightweight or Comfort – choose three. Welcome to the next evolution of aero bikes with the Foil RC. Designed to meet the demands of WorldTour sprinters, attackers and breakaway riders, this is the fastest road bike we’ve ever produced. Win Every Ride.
Please note that bike specifications are subject to change without prior notice.
condition of usage 6 -
Frame
FOIL RC Disc HMX
Road Race geometry, Replaceable Derailleur Hanger
Internal cable routing -
Fork
FOIL Disc HMX
1" Eccentric Carbon steerer -
Rear Derailleur
Shimano 105 Di2 RD-R7150
24 Speed Electronic Shift System -
Front Derailleur
Shimano 105 Di2 FD-R7150
Electronic Shift System
-
Shifters
Shimano 105 Di2 ST-R7170, 24 Speed Electronic Shift System -
Crankset
Hollowtech II 52x36 T
Shimano 105 FC-R7100 -
BB-Set
Shimano BB-RS500-PB -
Chain
Shimano CN-M6100-12 -
Cassette
11-34
Shimano CS-R7100 -
Brakes
Shimano BR-R7170 Hyd.Disc -
Rotor
Shimano RT-CL700 rotor 160/F and 140/R -
Handlebar
Syncros Creston 2.0 Aero -
H'stem
Syncros Foil 1.5 Aero -
Seatpost
Syncros Duncan SL Aero CFT -
Seat
Syncros Belcarra V 2.0 NEO Cut Out -
Headset
Acros AIF-1138 -
Wheelset
Syncros Capital 1.0 60
24 Front, 24 Rear
Syncros SL Axle, Removable Lever with Tool -
Front Tire
Schwalbe PRO ONE Aero, TL-Easy, Fold,700x28C -
Rear Tire
Schwalbe PRO ONE Aero, TL-Easy, Fold,700x28C -
Approx weight in KG
8.1 -
Approx weight in LBS
17.86 -
Max. System Weight
120kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
F01 Airfoil Technology
Through SCOTT's own F01 technology we are able to ensure that every tube and junction is optimised for the best aerodynamic design. Validated through computer simluation and wind tunnel testing we can guarantee that this is the fastest Road Bike SCOTT has ever made.
Syncros Duncan SL Aero CFT
One of the most innovative features of the bike is the patented new Syncros Duncan SL Aero CFT. The innovative seatpost will not only make sure that on rougher surfaces you aren’t beaten up, but more importantly when on light gravel or cobbles, the seatpost will ensure you’re able to deliver maximum power through the pedals as you won’t be bucked out of the saddle. Consisting of two parts, the front, carbon fiber load bearing piece bends when the road gets bumpy ensuring you stay on the saddle.
Sold seperately, the Syncros Campbell 20 Aero iL Rear Light is a USB rechargable light that slots directly into the Duncan SL Aero CFT seatpost while maintaining the aerodynamic profile of the post. With its COB LED, it has 3 running modes, one steady, one for day time, and one for night time and offers 20Lm of output for a safe ride in all conditions.
Dropped Seatstays
All Foil RC models feature dropped seatstays which means additional comfort for the rider but crucially for an aero bike it also means less air resistance. They are aimed in at a 10 degree angle, forcing the passing air into the spinning spokes. Through aerodynamic testing we discovered that this detail provides significant aero gains as the bike moves forward. With the dropped seatstays we’re also able to hide the disc brake callipers not only further reducing aero drag but also adding to an overall clean aesthetic.
Oversized Head Tube
The Foil RC features an oversized head tube which not only allows for fully integrated cabling for both mechanical and electronic shifting but more importantly acts as a fairing for the bike. It splits the oncoming air and reduces aerodynamic drag as a rider powers forward.
Lightweight Design
With over 300 designs tested, SCOTT engineers were able to deliver a better carbon lay-up, a 30% reduction in the number of carbon pieces and joints used compared to the previous Foil and with incredible attention to the smaller details such as seat stays and seat clamp the team shaved weight without sacrificing stiffness.
30% fewer joints I 9% weight saved I 300 frame designs simulated
