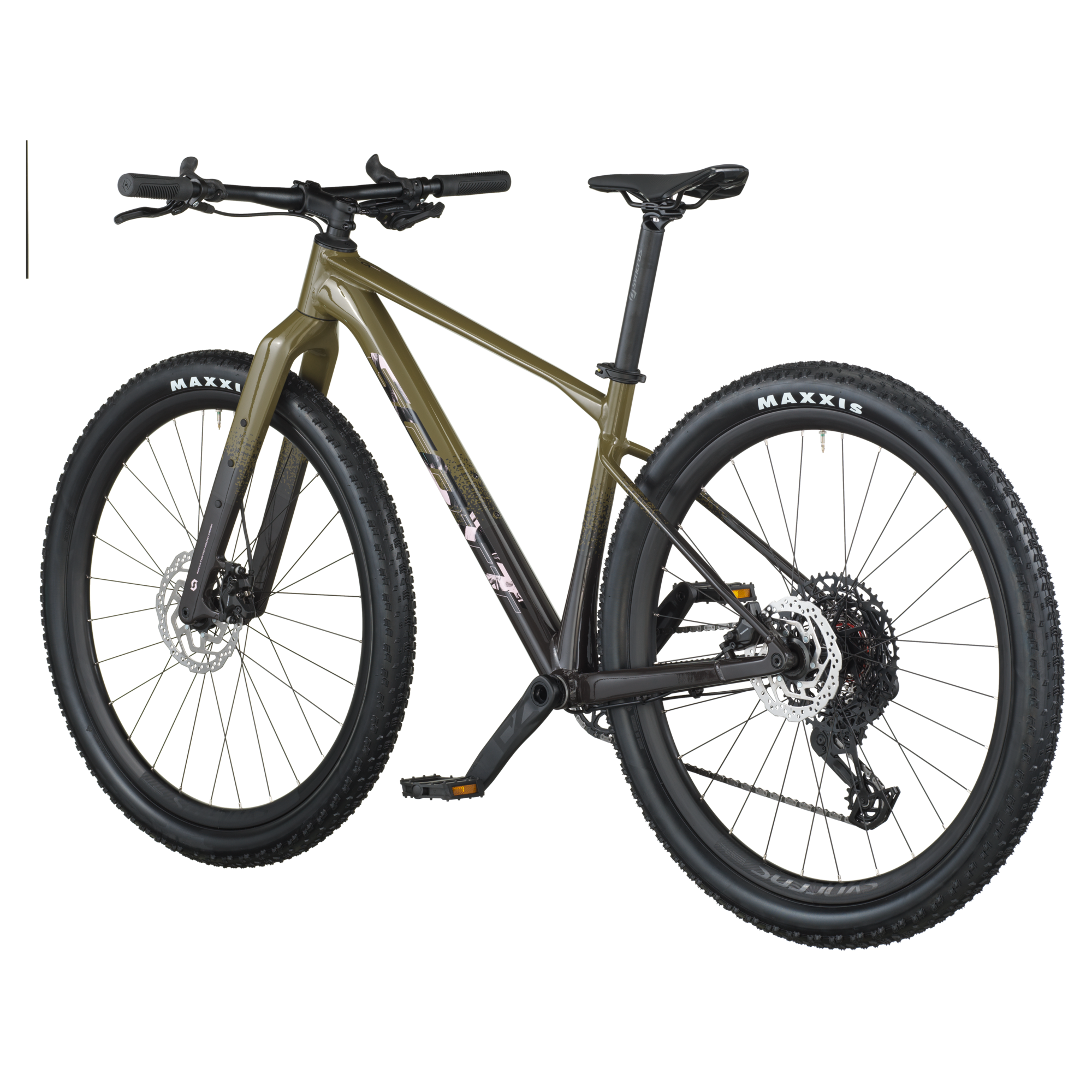

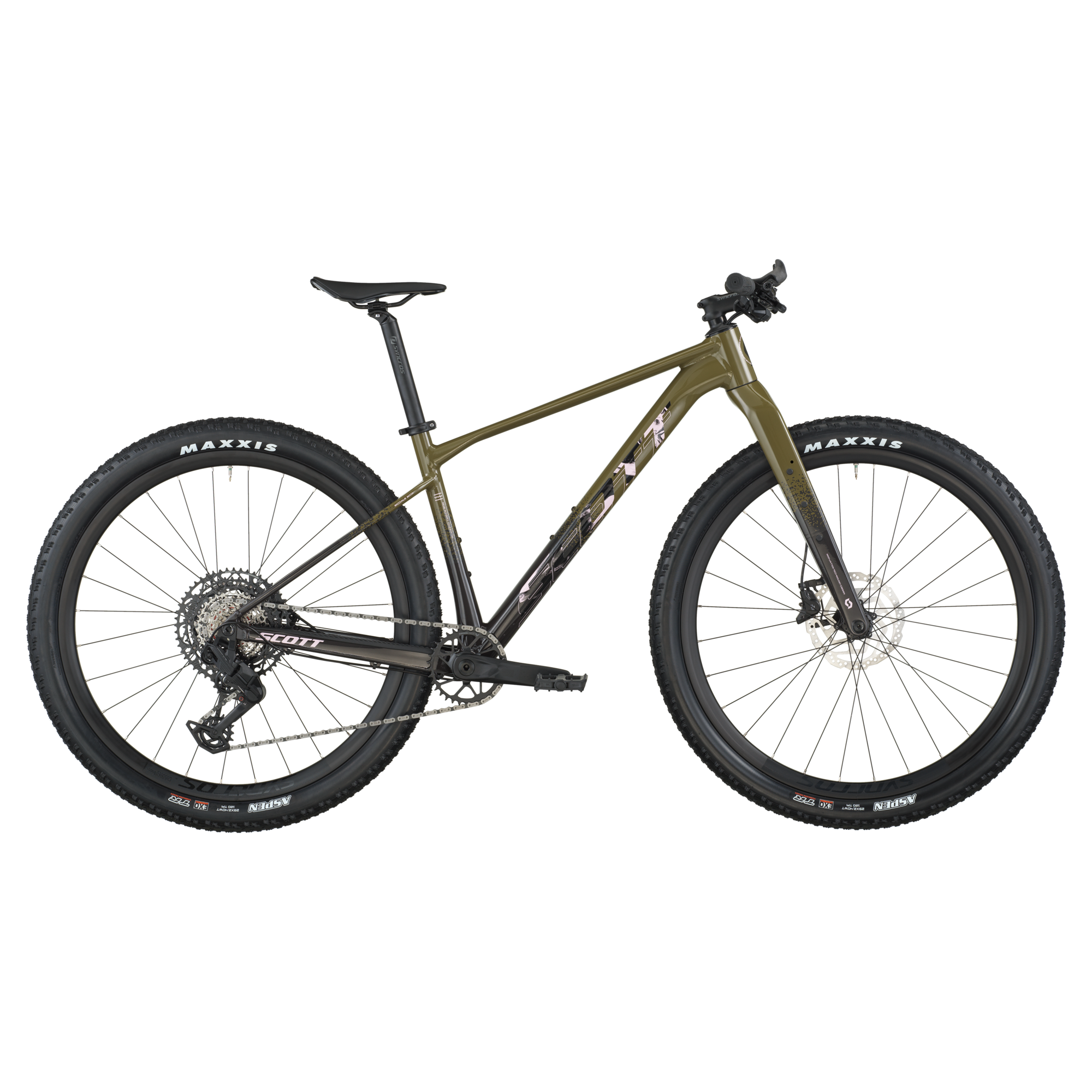

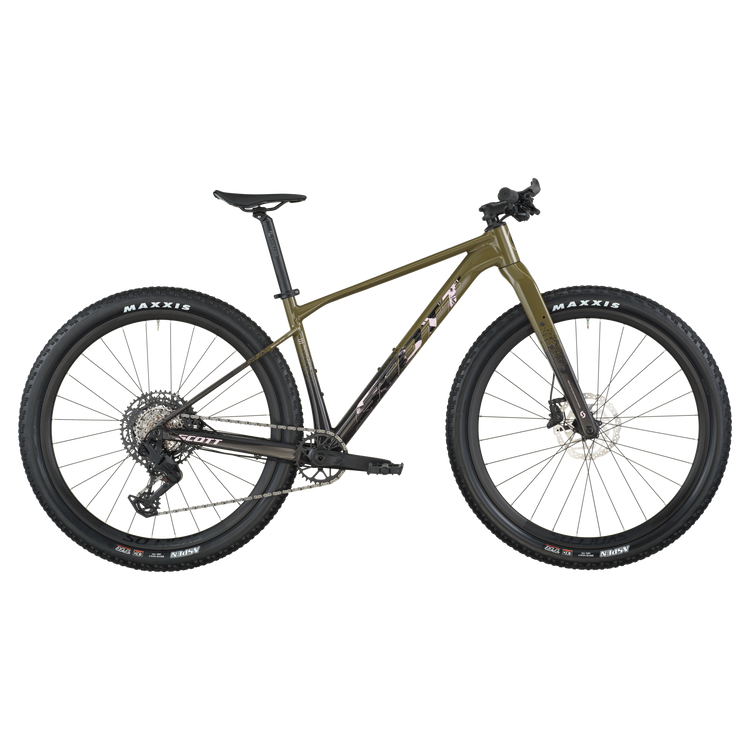

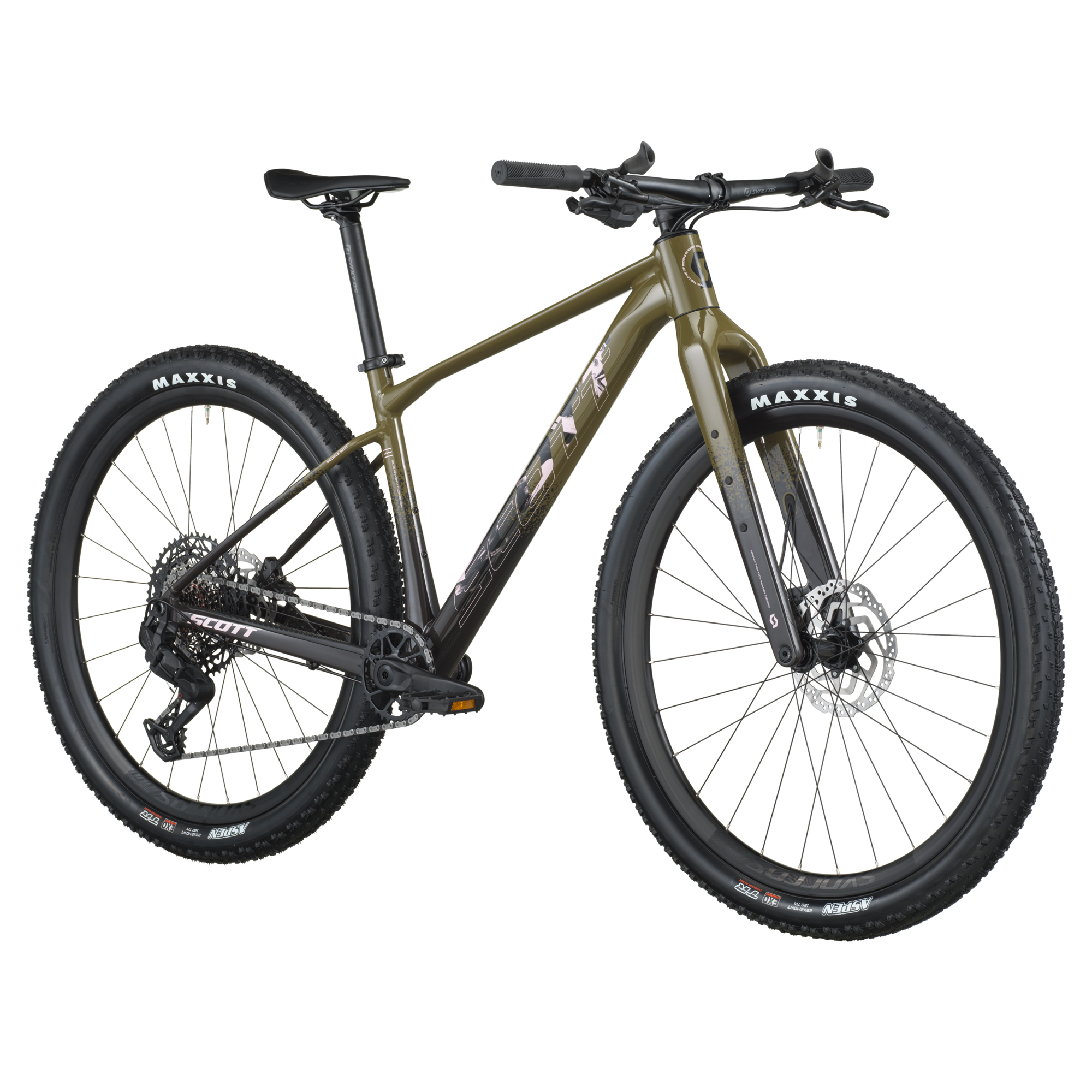

SCOTT Scale Gravel 20 Bike
Model : 425492
Key Features
- Scale Alloy 6061 Frame
- Scale Rigid HMF Fork
- SRAM Eagle 70 Transmission 12 Speed Drivetrain
- Shimano Hyd. Disc Brakes
- Syncros X-28TR Rims
- Maxxis Aspen Foldable Tires
- Syncros Parts
1. Color : kaki green/carbon black
2. Size
-
The Scale Gravel was put on this planet for going on adventures with attitude. Designed to go the distance over any and all types of terrain, the Scale Gravel is lightweight with agile handling and features multiple mounting options.
Please note that bike specifications are subject to change without prior notice. -
Frame
Scale Alloy 6061 Custom Butted Tubing, Syncros Cable Integration System
BB92, UDH Interface, 12x148mm with 55mm Chainline -
Fork
Scale Rigid HMF
Postmount Disc Standard
Tapered Carbon steerer -
Rear Derailleur
SRAM Eagle 70 Transmission 12 Speed -
Shifters
SRAM Eagle 70 Trigger
-
Crankset
SRAM Eagle 70 Transmission
DUB, 55mm CL, 34T -
Chainguide
SCOTT custom -
BB-Set
SRAM DUB PF 92 MTB Wide, shell 41x92mm -
Chain
SRAM CN Eagle 70 Transmission -
Cassette
SRAM Eagle XS 1270 V2 Transmission 10-52 -
Brakes
Shimano MT401 Disc Brake -
Rotor
Shimano SM-RT10 CL, 180/F and 160/R -
Handlebar
Syncros Alloy 6061
T shape Flat, 9°, 740mm
Syncros Performance XC lock-on grips -
H'stem
Syncros DC 3.0
Syncros Cable Integration System
0° rise, 6061 Alloy, 31.8mm, 1 1/8" -
Seatpost
Syncros, 31.6x400mm -
Seat
Syncros Belcarra V2.5 Cut Out -
Headset
Syncros - Acros OE Cable Routing HS System
OD 50/62mm, ID 42/56mm -
Front Hub
Formula CL-811, 15x110mm -
Rear Hub
Formula CL-3248, 12x148mm -
Spokes
Stainless Black 15G, 1.8mm -
Rims
Syncros X-28, 28H, Tubeless ready -
Front Tire
Maxxis Aspen, 29x2.4", 120TPI Foldable Bead
Tubeless Ready, EXO -
Rear Tire
Maxxis Aspen, 29x2.4", 120TPI Foldable Bead
Tubeless Ready, EXO -
Accessories
Spirgrips+ Inner Bar ends -
Approx weight in KG
11.4 (Tubless setup without pedals) -
Approx weight in LBS
25.13 (Tubless setup without pedals) -
Max. System Weight
120kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Monocoque Construction
The new Scale RC’s monocoque construction enables a production using only one mold for the main section of the bike, the front triangle. Applying our carbon expertise, the new Scale therefore consists of only 3 separate pieces molded together. This directly translates into an increased level of efficiency due to the reduced number of junctions required therefore decreasing weight while keeping the superior stiffness – something we’re always aiming for with hardtail race bikes. With the full frame constructed as a system, the monocoque design enables the frame to handle forces as a whole.
Service Door
A little service door, which is accessible through a downtube cover, allows easy access to the interior of the frame without the need to remove the Bottom Bracket. Frame maintenance is made easy with regards to cable routing.
Hollow Dropout Construction
The dropout feature an advanced, hollow construction, which allows the axle head to clamp against the inner surface of the dropout and leaves the
head flush with the surface. This enables the lightest possible construction approach and a clean looking design from the outside. While being able to directly shave off 7.5g with the new dropout construction, the optimized design favors a narrower construction of the rear triangle area, which in turn enables a reduction of 20g in this area of the frame (HMX-SL).
