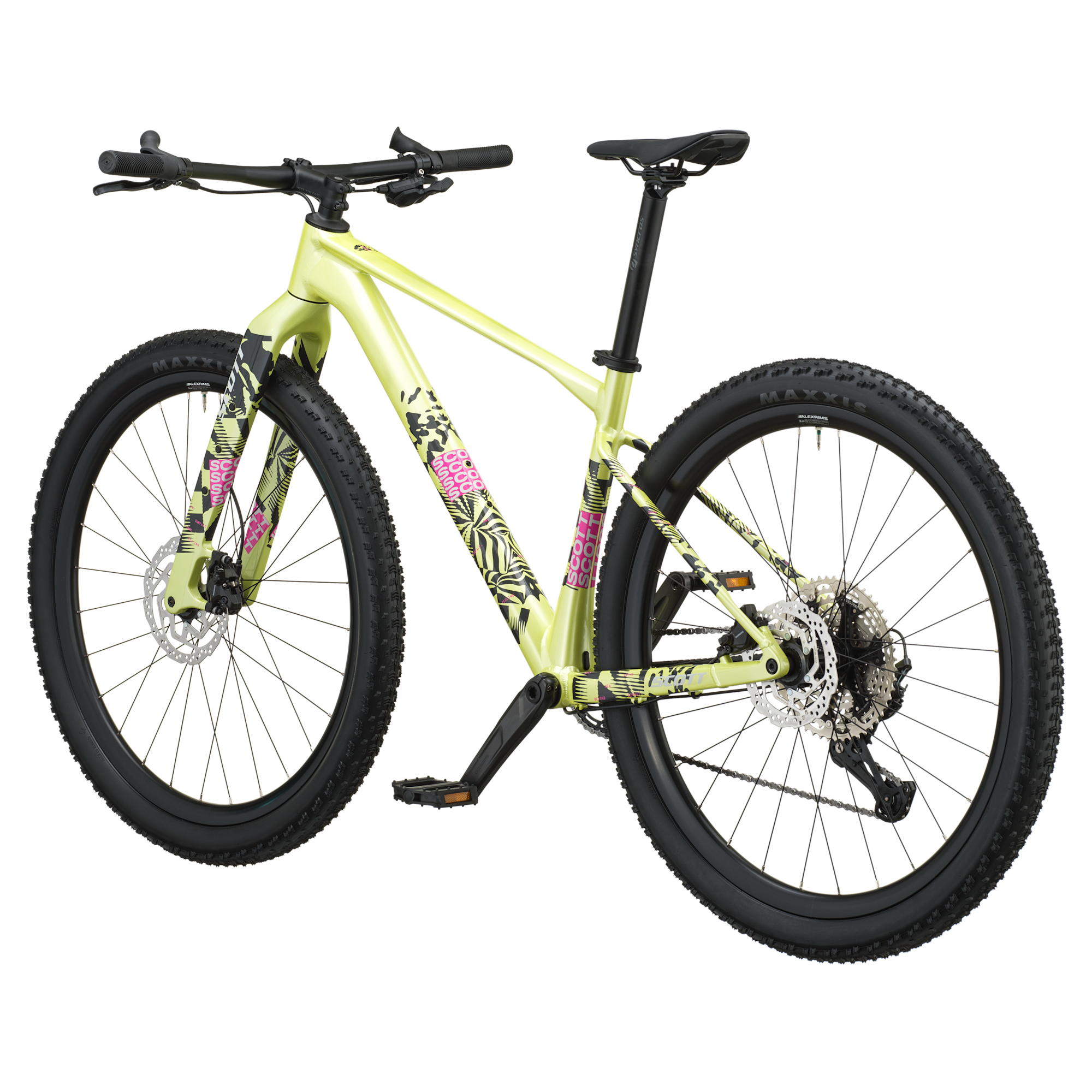

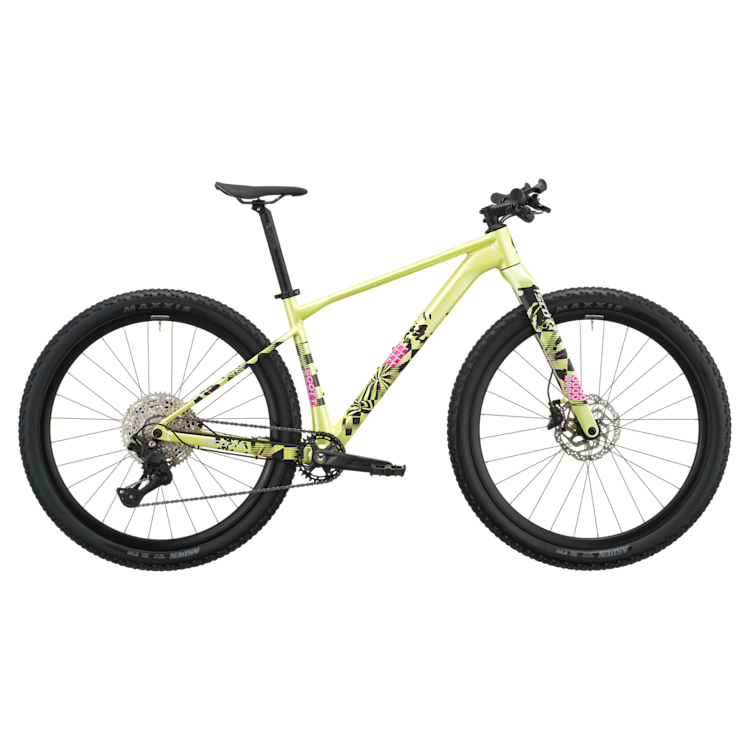

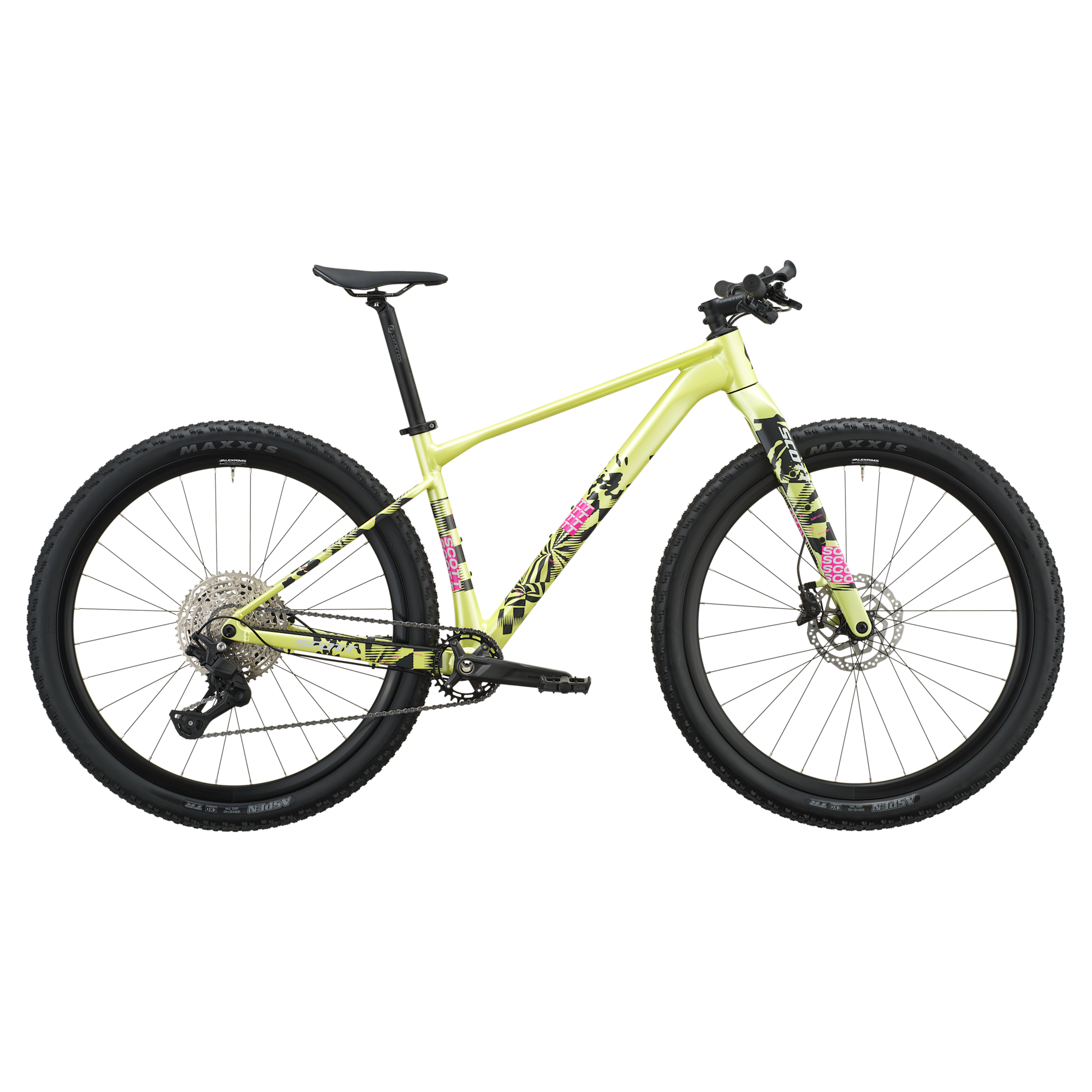

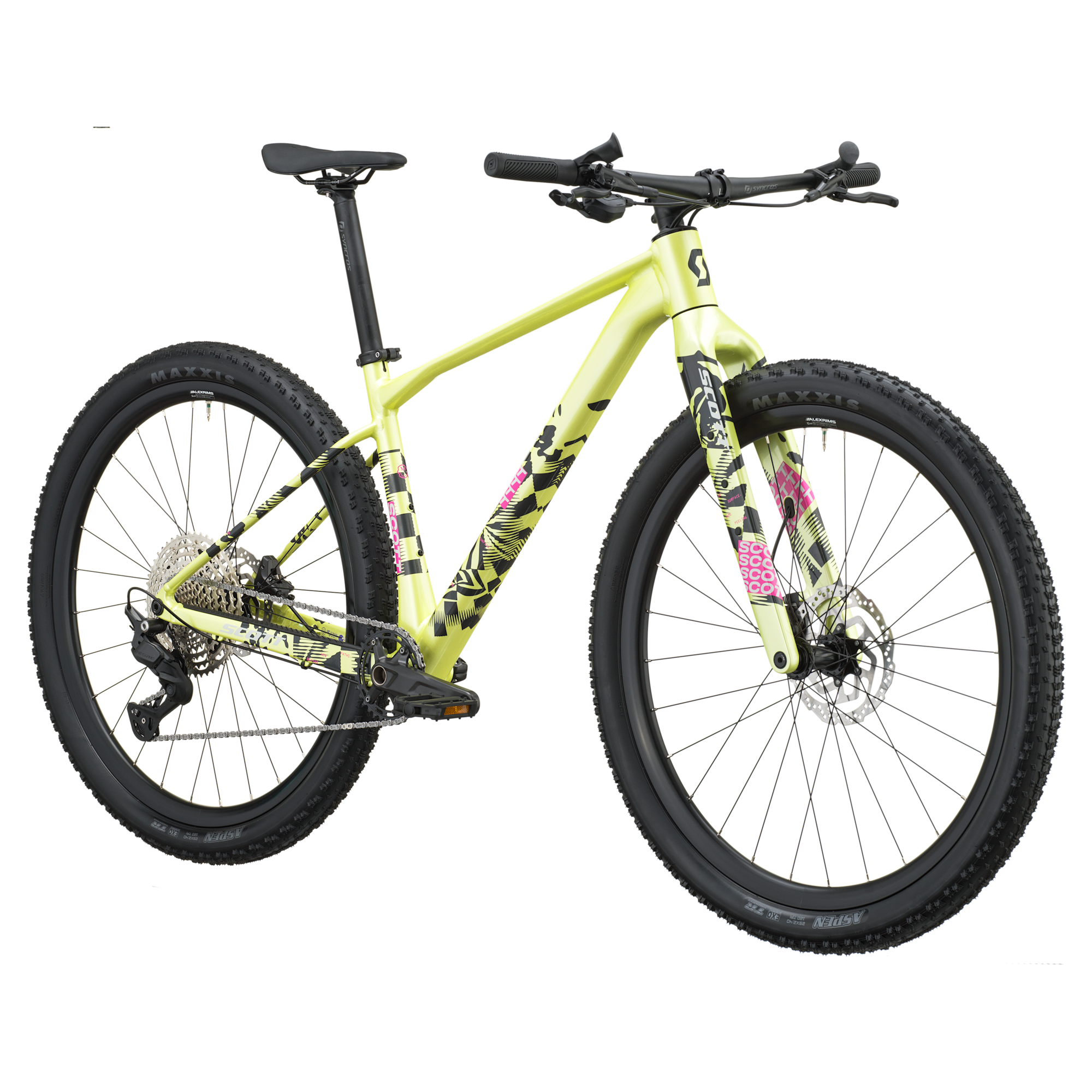

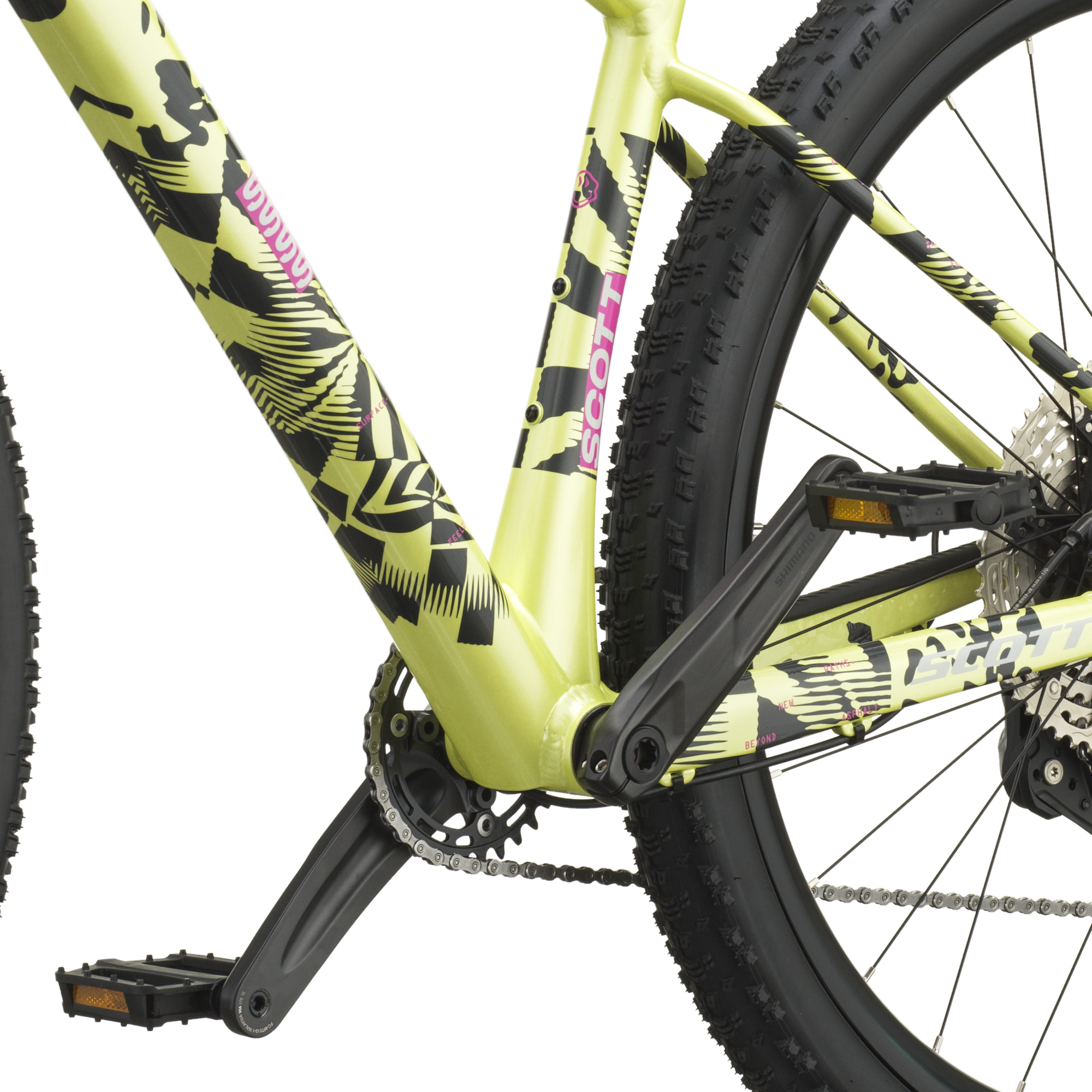

Scott Scale Gravel 30 Bike
Model : 427619
Key Features
- Scale low impact Alloy
- Shimano Deore 12 speed drivetrain
- Shimano disc brakes
- Maxxis Aspen foldable tires
- Syncros components
1. Color : mojito green
2. Size
SEK 16 995,00
BE THE FIRST ONE TO KNOW
Please enter your email so we can alert you when the Scott Scale Gravel 30 Bike in size XL is back in stock.
You will only be notified once.
Delivery within 4-7 working days after order
Free shipping on orders above SEK 1500
Free return within 14 days
-
The Scale Gravel was put on this planet for going on adventures with attitude. Designed to go the distance over any and all types of terrain, the Scale Gravel is lightweight with agile handling and features multiple mounting options.
Please note that bike specifications are subject to change without prior notice. -
Frame
Scale Alloy 6061 Custom Butted Tubing, Tapered Headtube, BB92, UDH interface, Boost 12x148mm with 55mm chainline -

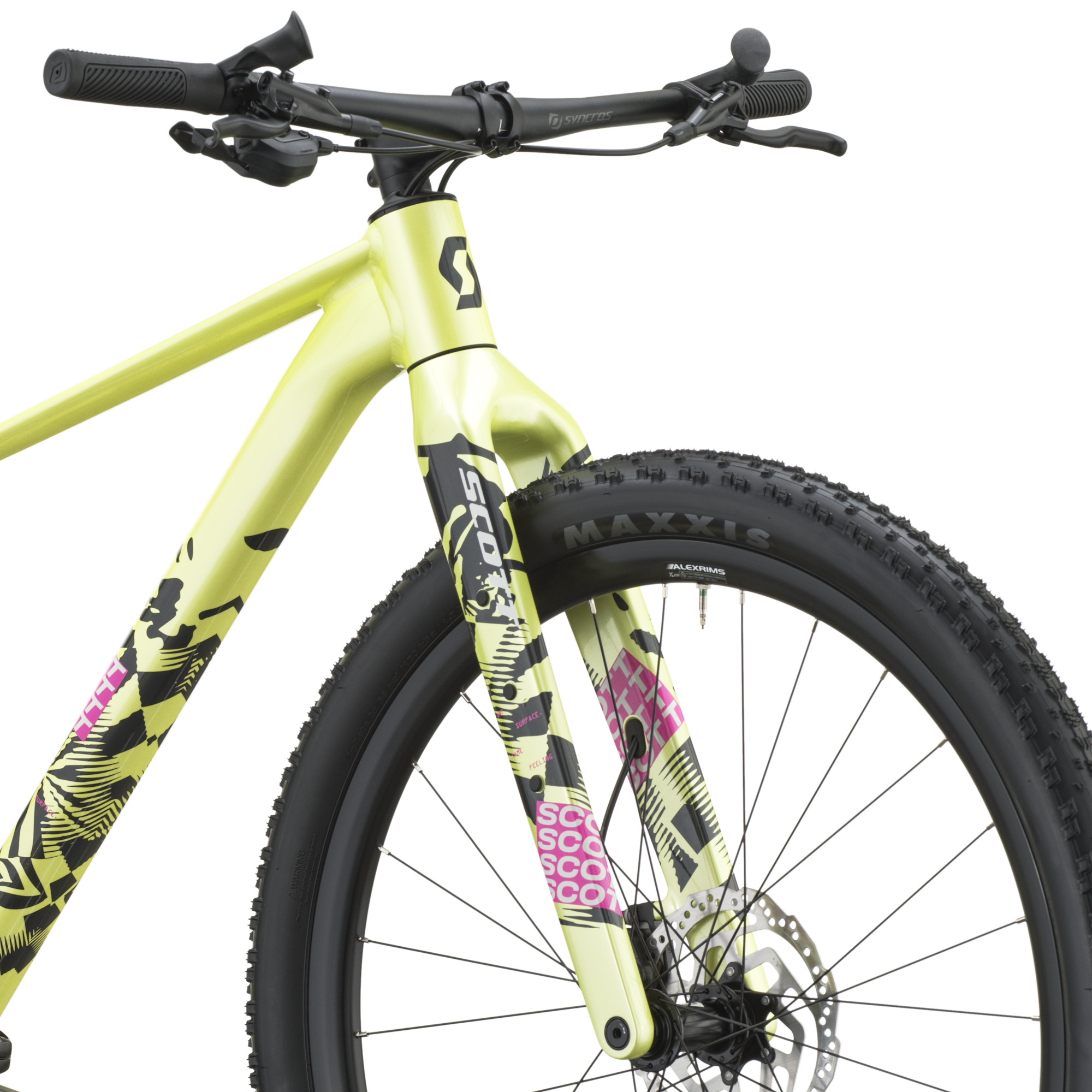

Fork
Scale Rigid HMF, postmount disc standard, tapered carbon steerer -

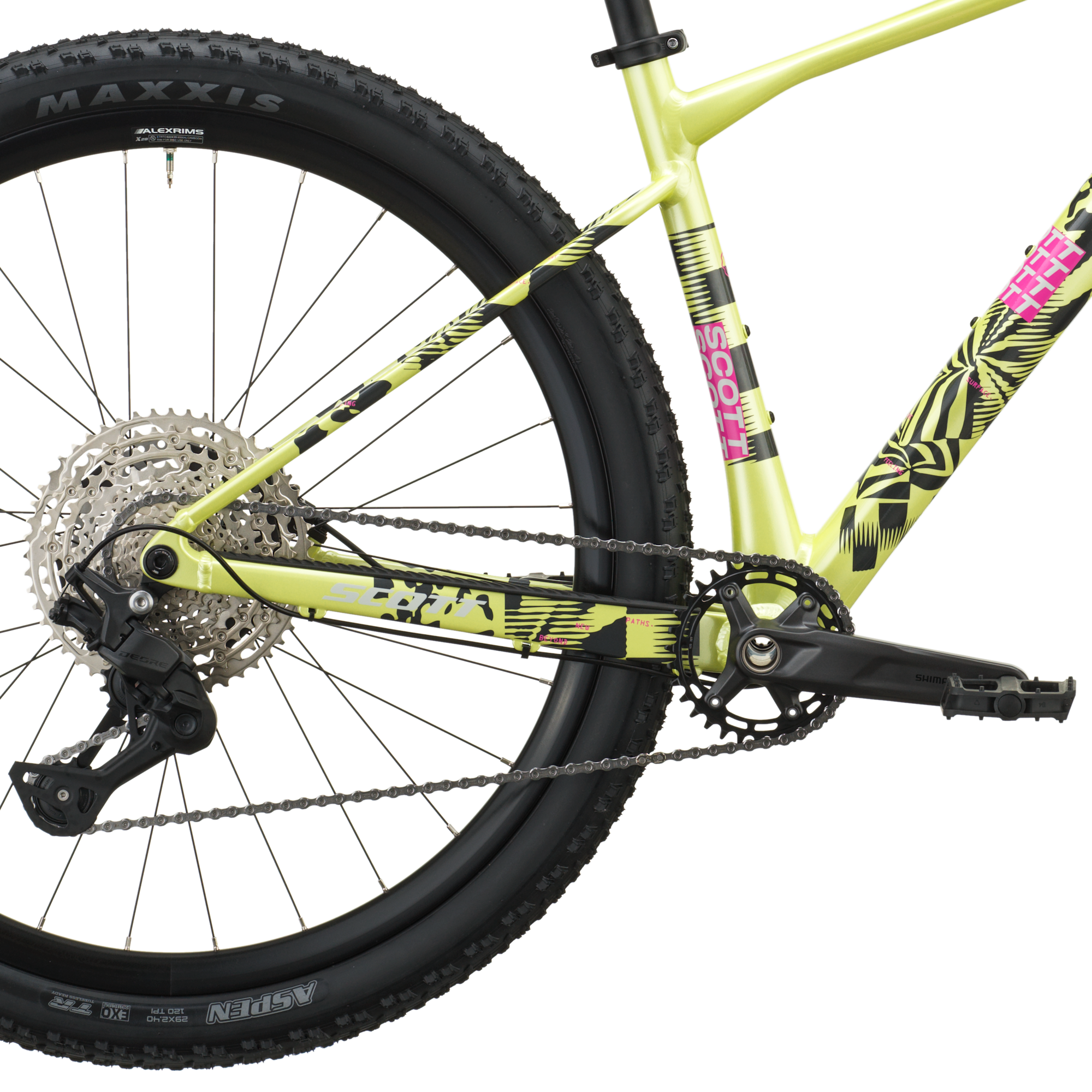

Rear Derailleur
Shimano Deore RD-M7200 12-speed -
Shifters
Shimano Deore SL-M6200
-
Crankset
Shimano FC-MT520, 34T -
BB-Set
Shimano BB-MT500 PF -
Chain
Shimano CN-M6100 -
Cassette
Shimano Deore CS-M6200, 10-51T -
Brakes
Shimano BR-MT401 2-Piston -
Front Disc Rotor
Shimano SM-RT10 CL, 180mm -
Rear Disc Rotor
Shimano SM-RT10 CL, 160mm -
Grips
Syncros Performance XC -

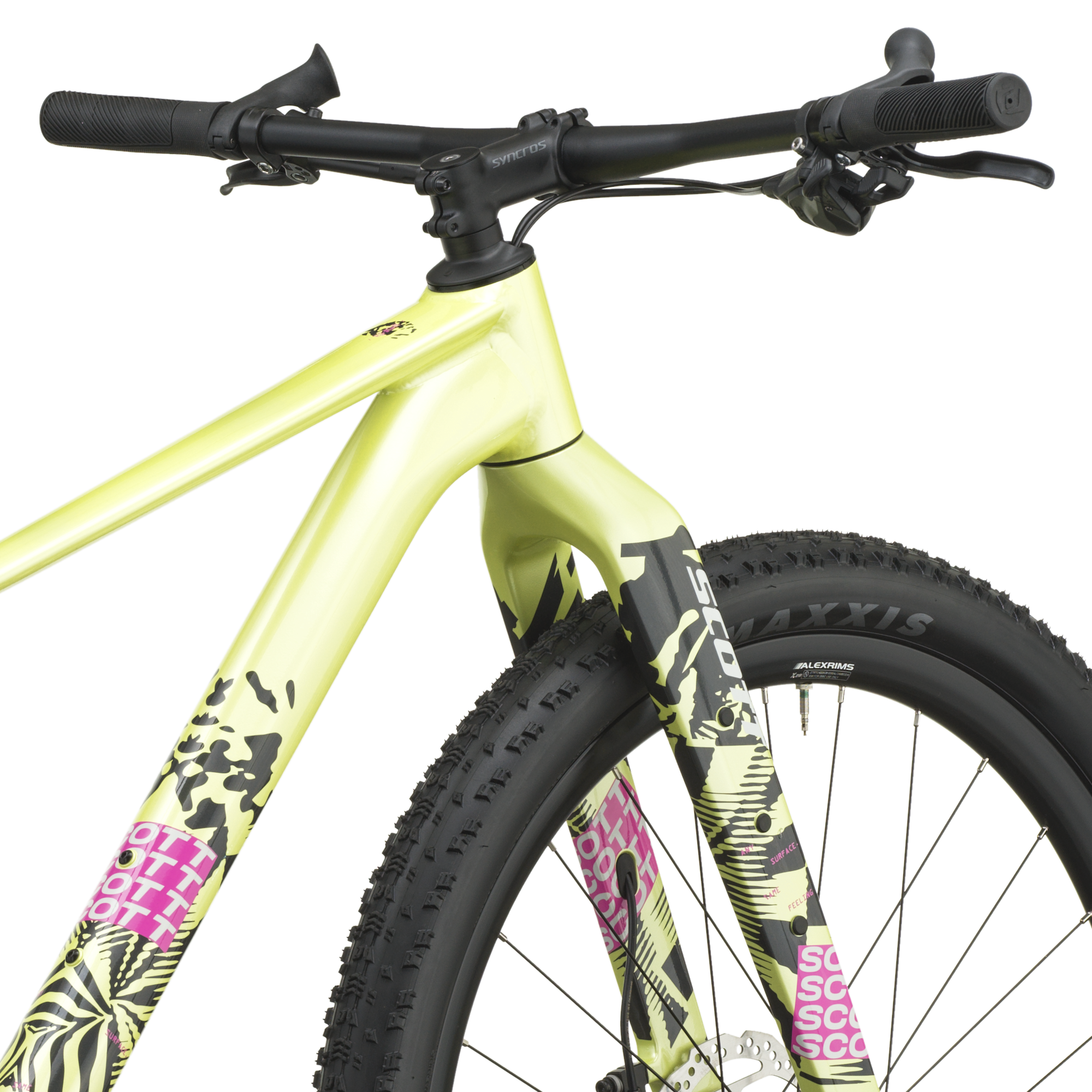

Handlebar
Syncros Alloy 6061, T shape Flat, 9°, 740mm -
H'stem
Syncros Alloy 6061, oversized 31.8mm, 1 1/8", 6° angle -

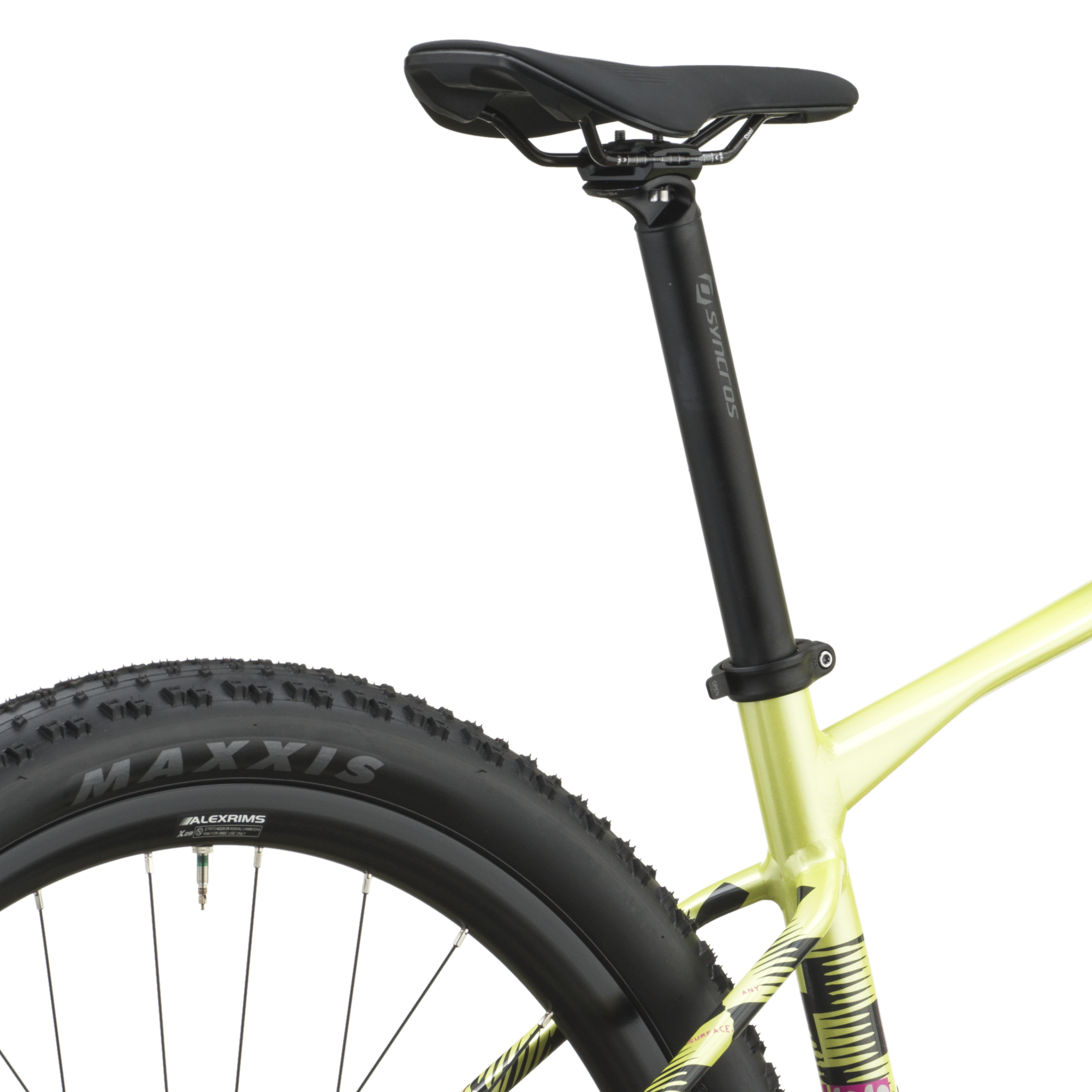

Seatpost
Syncros alloy, 10mm offset, 31.6x400mm -
Seat
Syncros Celista Cut Out -
Headset
Cable Routing Headset ZS56/28.6 – ZS56/40 -
Front Hub
Formula CL-811, 15x110mm -
Rear Hub
Formula FCL-548M, 148x12mm, Micro Spline -
Spokes
Stainless Black -
Front Rim
Alex Rims X-30S 32H, Sleeve Joint, Tubeless ready -
Rear Rim
Alex Rims X-30S 32H, Sleeve Joint, Tubeless ready -
Front Tire
Maxxis Aspen 29x2.4", 120TPI Foldable Bead, Tubeless Ready, EXO -
Rear Tire
Maxxis Aspen 29x2.4", 120TPI Foldable Bead, Tubeless Ready, EXO -
Pedals
Feimin FP-873ZU -
Extras
Spirgrips Inner Bar ends -
Approx weight in KG
11.7 without pedals -
Approx weight in LBS
25.79 without pedals -
Max. System Weight
130kg
The overall weight includes the bike, the rider, the equipment and possible additional luggage.
Monocoque Construction
The new Scale RC’s monocoque construction enables a production using only one mold for the main section of the bike, the front triangle. Applying our carbon expertise, the new Scale therefore consists of only 3 separate pieces molded together. This directly translates into an increased level of efficiency due to the reduced number of junctions required therefore decreasing weight while keeping the superior stiffness – something we’re always aiming for with hardtail race bikes. With the full frame constructed as a system, the monocoque design enables the frame to handle forces as a whole.
Service Door
A little service door, which is accessible through a downtube cover, allows easy access to the interior of the frame without the need to remove the Bottom Bracket. Frame maintenance is made easy with regards to cable routing.
Hollow Dropout Construction
The dropout feature an advanced, hollow construction, which allows the axle head to clamp against the inner surface of the dropout and leaves the
head flush with the surface. This enables the lightest possible construction approach and a clean looking design from the outside. While being able to directly shave off 7.5g with the new dropout construction, the optimized design favors a narrower construction of the rear triangle area, which in turn enables a reduction of 20g in this area of the frame (HMX-SL).
