SCOTT Fastlane 20 Bike
Model : 427396
Key Features
- Fastlane HMX Carbon Frame
- TQ mid-drive 40Nm, 290 Wh Engine System
- Fastlane HMX Carbon Fork
- Shimano 105 Di2 Disc 24 Speed Drivetrain
- Shimano 105 Disc Brakes
- Syncros Capital 1.0 40 Wheelset
- Schwalbe ONE Tires
- Syncros Carbon/alloy Parts
1. Color : carbon black
2. Size
$6,999.99
Expedited shipping available on most items
Free shipping on orders above $49 - (excluding AK/HI, extra surcharge for bikes, skis, boots, and avy packs)
Review Returns FAQ. Please note, closeout items are final sale
-
Fastlane 20 E-Bike is a lightweight, efficient, fast road machine and one of the most discreet on the market. Encased inside the svelte, aerodynamic frame is TQ’s new HPR40 harmonic gear system that expertly supplies a gentle 40Nm of juice and 290Wh battery to keep you rolling at a swift pace regardless of how knackered your legs may have become.
The hypersmooth power delivery of the HPR40 is a pedal-assisted work of modern hi-tech, engaging and disengaging with natural feeling and almost no drag. This means that when you’re hitting your physical red line on a climb, it comes in like a pro-level push on the backside to give you a second wind. And on the flats, it’ll cruise you up to 25kmph before disengaging with no drag.
Fastlane 20 is intentionally designed to be the ideal ride for the e-curious cyclist, minimizing the “you’re on an E-Bike” aesthetic and maintaining the ride quality we love about fast premium road bikes. On a massive weekend ride, it’s a boost for tired legs. On a long commute, it’ll get you home with less of a sweat. All while making it look like you’re doing it all yourself.

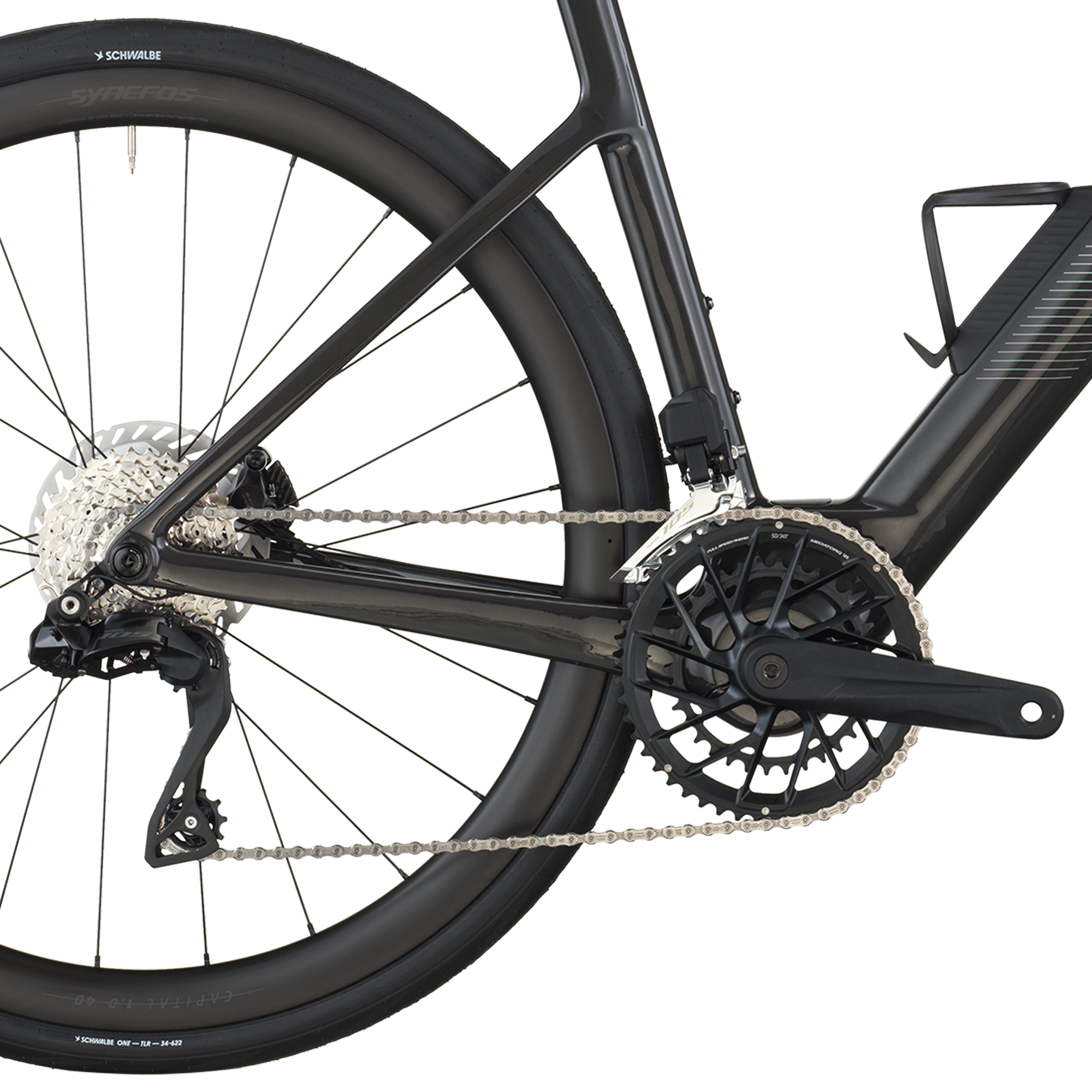

We’ve equipped the Fastlane 20 with Shimano 105 Di2 electronic 2x gearing, versatile, aerodynamic Syncros Capital 1.0 40 wheels, and Schwalbe ONE tires for speed and reliability wherever you ride.
Please note that bike specifications are subject to change without prior notice. -
Frame
Fastlane Road Disc HMX, Endurance geometry, Syncros Cable Integration System, TQ HPR40, UDH Interface, Range Extender Ready -
Fork
Fastlane Road HMX Flatmount Disc, 27.2mm Eccentric Carbon Steerer -
Drive Unit
TQ HPR40 Mid Motor drive 40Nm max Torque, EU: 25kmh - US: 28mph -
Battery
TQ Internal 290Wh
-
Display
TQ Bar-End-Display, Bluetooth, ANT+, Dedicated Smartphone app -
Charger
TQ AC 90-264V 2A -
Rear Derailleur
Shimano 105 Di2 RD-R7150
24 Speed
Electronic Shift System -
Front Derailleur
Shimano 105 Di2 FD-R7150
Electronic Shift System -
Shifters
Shimano 105 Di2 FD-R7170
Dual control 24 Speed Electronic Shift System -
Crankset
FSA e-Bike Alloy CK-6048 -
Chainring
FSA 50x34 -
Chain
Shimano CN-M6100-12 -
Cassette
Shimano CS-R7101
11-34 -
Brakes
Shimano BR-R7170 Hyd.Disc -
Rotor
Shimano RT-CL700 rotor 160/F and 160/R -
Handlebar
Syncros HB-R100-AL -
H'stem
Syncros ST-R100-AL -
Seatpost
Syncros Duncan 1.0 iL D-shape -
Seat
Syncros Belcarra V 2.0 NEO Cut Out -
Headset
Acros AIF-1317 -
Wheelset
Syncros Capital 1.0 40 Disc, Front 12x100mmTA, Rear 12x142mmTA
Syncros SL Axle -
Spokes
24 Front, 24 Rear -
Front Tire
Schwalbe ONE Fold,700x34C -
Rear Tire
Schwalbe ONE Fold
700x34C -
Lights
Syncros Campbell iL rear -
Accessories
Syncros iS Drop Bar Tool 2
Coupe Cage 1.0 bottle cage -
Approx weight in KG
11.1 -
Approx weight in LBS
24.47 -
Max. System Weight
120kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

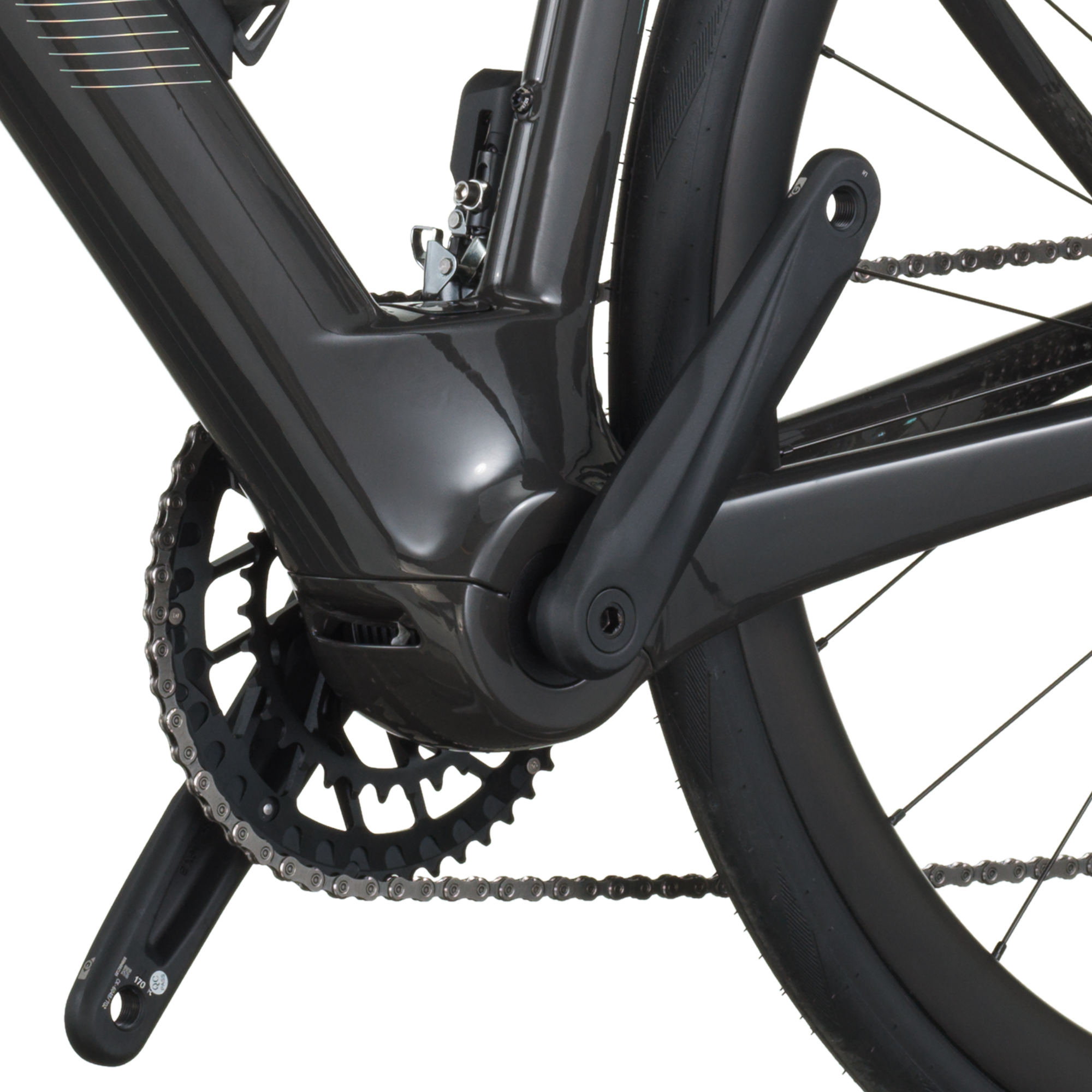

TQ HPR40 DRIVE UNIT
The new HPR40 drive unit from TQ is even more discreet, compact and lighter than previous generations. The motor takes the riding experience to a new level, making the pedal efficient as on a mechanical bike. The pedaling drag is minimal and the assistance kicks in and out unnoticeable, you won’t feel when the ride is powered by you or assisted by TQ. The three assistance modes allow the rider to adapt to the ride intensity or day form. With the system being more than 1000g lighter than the previous one, it adds on to the lightweight feel of the bike.
More KMs for less Wh
The sleek silhouette of the Fastlane is hiding a 290Wh battery and it’s capable enough for longer days outside, searching for your new favorite roads. The new battery from TQ is more efficient, which gives more KMs for less Wh. The charging time up to 100% is only 3h and with the new charger, petite enough to be fitted in your back pocket, you can re-charge while having a coffee break when you’re out exploring.

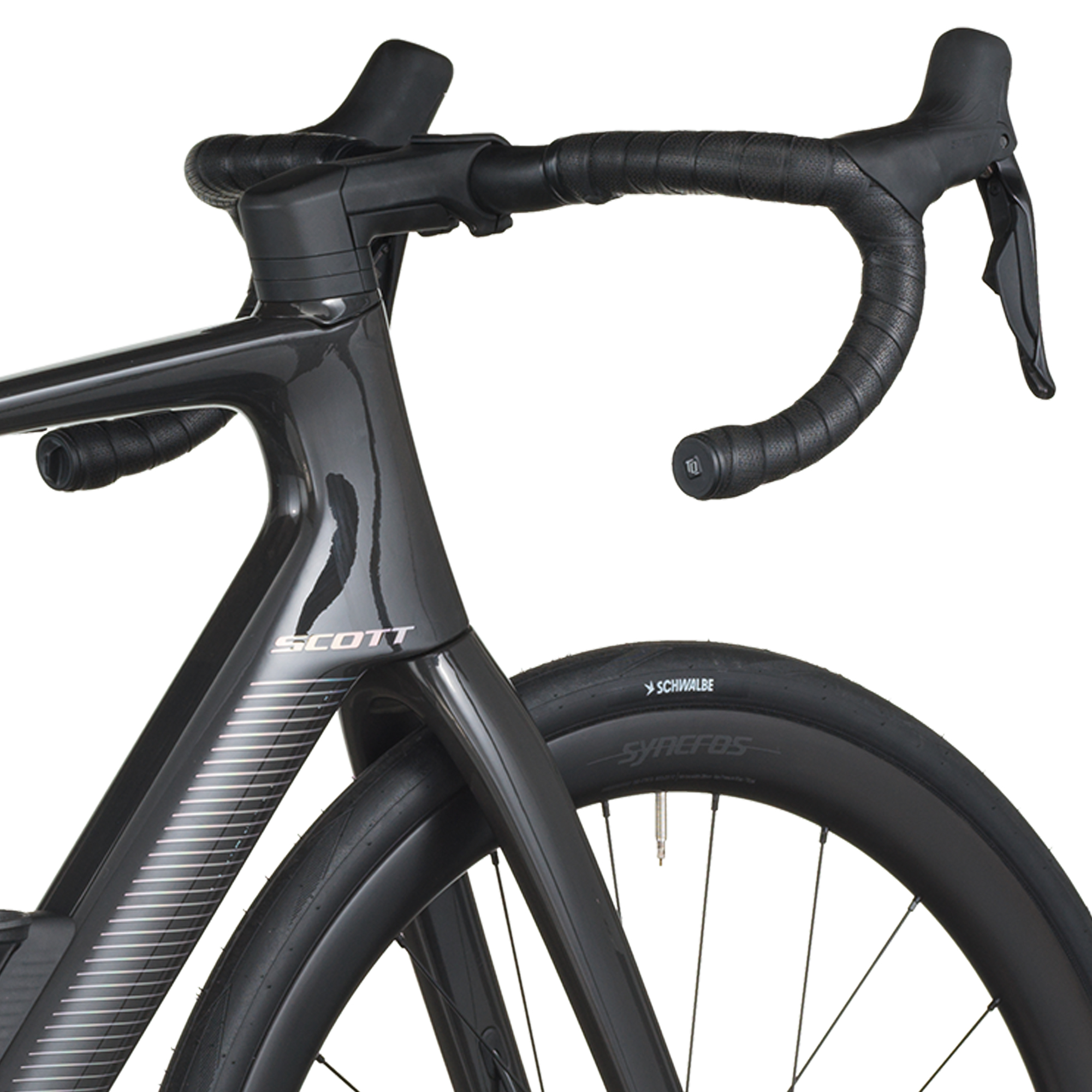

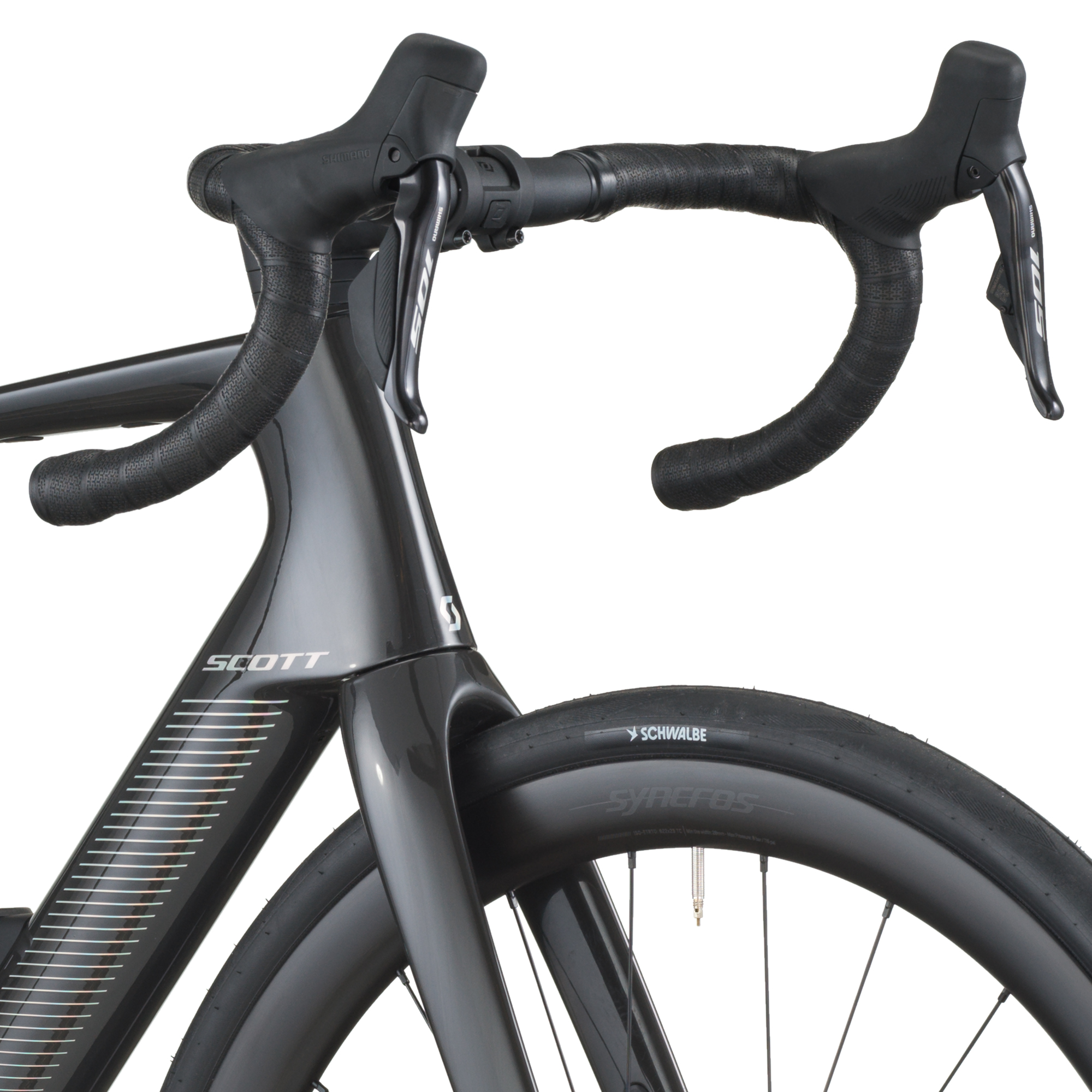

Stay in control
For keeping the ride free from too many distractions, the bike is kept clean by limiting displays and bigger controls. There's only a discreet controller at the end of the drops for turning the bike on/off. For changing the riding modes, simply use the hood buttons, more convenient access results in safer riding. By connecting the bike to your bike computer via ANT+, you get all the stats you need for your ride, right in front of you.
Lightweight design
An electric road bike shouldn’t look or feel heavy - it should be just like the Fastlane. The frame weighs only 865g, and together with the new, lightweight drive unit system from TQ and the aero features of the bike design, it’s made to save watts - battery watts! While being lightweight, it still has an endurance focused geometry and up to 38mm of tire clearance which ensures a comfortable ride on the climbs, and confident inspiring fly in the descents.
Top-level integration
The design of the Fastlane extends to the management of all power on the bike- the onboard 290Wh battery powers everything. By hard wiring, the rear light, shifters and the drive unit into the main battery, there’s only one battery that needs to be charged. This means less cables to keep track of, and more time to map out the next route.
TQ Range Extender
In addition to the battery integrated in downtube, all SCOTT TQ-powered eROAD and eGRAVEL bikes are compatible with an additional 160Wh range extender. The range extender comes as an accessory and looks like a simple water bottle. Utilizing the SCOTT specific quick-release system, the range extender is easy to swap in for a bottle cage, tool free. Thanks to TQ’s expertise and unique cell efficiency, battery capacity is optimized to the fullest. The e-bike’s system automatically adapts to having two power sources with SMART technology.
TQ App
The TQ app offers real benefit and is easy to use. It’s easy to connect, customize and control your TQ-powered E-Bike with the TQ E-Bike app. The bike comes with a suggested SCOTT motor tune, with the app you can further tune your drive unit to either save battery life or maximize the power output. You can alter the pedal response either for a faster motor uptake or to slow it down for a more natural feeling.
