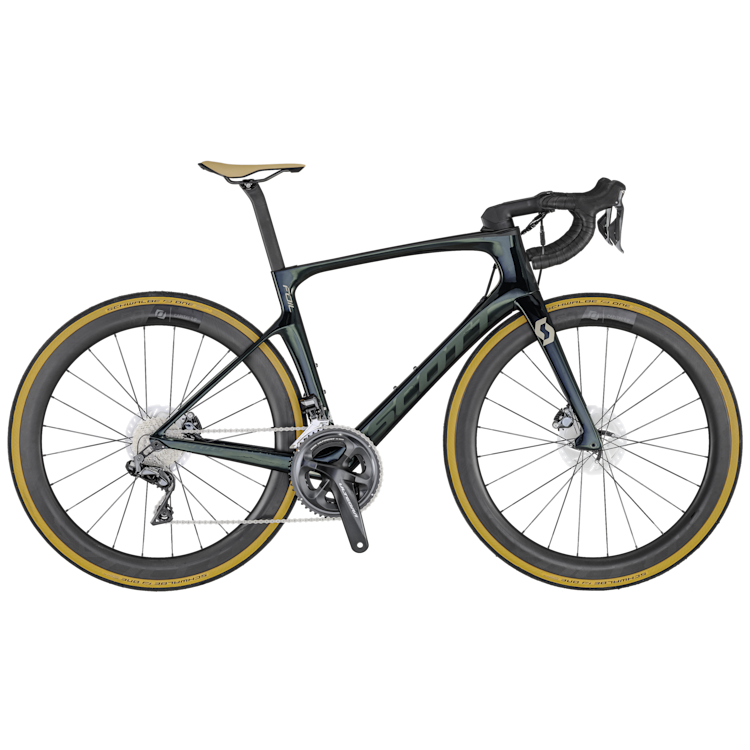

SCOTT Foil 10 Bike
Model : 274714
Key Features
- FOIL DISC HMF Carbon Frame
- FOIL DISC HMF Fork
- Shimano Ultegra Di2 22 Speed
- Syncros Capital 1.0 50 Disc Wheels
- Schwalbe ONE Race-Guard Tires
- Syncros Carbon/Alloy Parts
1. Size
Not available online
Expedited shipping available on most items
Free shipping on orders above $49 - (excluding AK/HI, extra surcharge for bikes, skis, boots, and avy packs)
Review Returns FAQ. Please note, closeout items are final sale
SPECIFICATIONS
- Stage wins at all the grand tours, classic victories at Milan San Remo, Liege Bastogne Liege and Paris-Roubaix - we can safely say that the FOIL is the most versatile aero bike on the market.The SCOTT FOIL 10 was designed to help you gain those extra precious seconds. With a Syncros integrated FOIL Stem and Ultegra Di2, the FOIL 10 is a race ready machine at a fraction of the cost.
-
Frame
FOIL DISC HMF / IMP, F01 AERO Carbon tech.
Road Race geometry
Replaceable Derailleur Hanger -
Fork
FOIL DISC HMF
1 1/4"-1 1/2" Carbon steerer
Integrated Carbon Dropout -
Rear Derailleur
Shimano Ultegra Di2 RD-R8050
22 Speed Electronic Shift System -
Front Derailleur
Shimano Ultegra Di2 FD-R8050
Electronic Shift System
-
Shifters
Shimano Ultegra Di2 ST-R8070
22 Speed Electronic Shift System -
Crankset
Shimano Ultegra FC-R8000
Hollowtech II 52x36 T -
BB-Set
Shimano SM-BB71-41B -
Chain
Shimano CN-HG701-11 -
Cassette
Shimano Ultegra CS-R8000
11-30 -
Brakes
Shimano BR-R8070 Hyd Disc
160/F and 160/R SM-RT800 CL rotor -
Handlebar
Syncros Creston 1.5 Aero
31.8mm -
H'stem
Syncros FOIL 1 1/4" -
Seatpost
Syncros Duncan 1.0 -
Seat
Syncros Belcarra V-Concept 2.0 -
Headset
Syncros Integrated -
Wheelset
Syncros Capital 1.0 50 Disc
24 Front / 24 Rear
Syncros RWS -
Tires
Schwalbe ONE Race-Guard Fold
700x28C -
Approx weight in KG
8.20 -
Approx weight in LBS
18.08
Use
No Radar Chart Available Currently

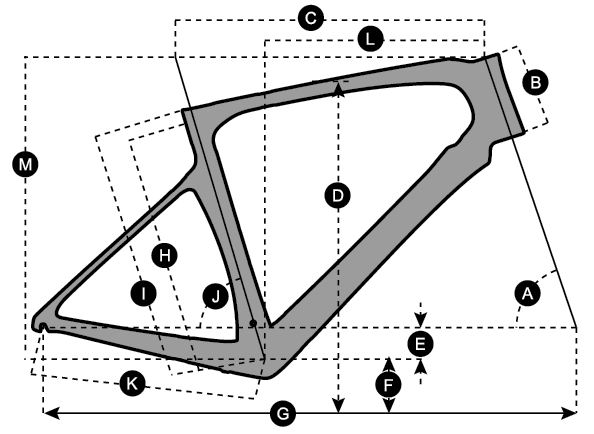

Geometry
Technologies
Oversized Bottom Bracket Addict
In order to best manage power transfer our engineers developed a down tube and bottom bracket intersection that is the widest of any road bike currently on the market. The wide cross section and smooth transitions better manage loads and yield a laterally robust structure which increases pedaling efficiency by effectively delivering power to the drivetrain rather than losing it to unwanted frame flex.

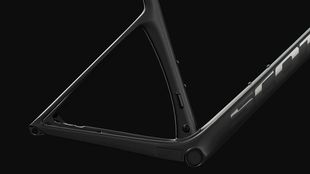

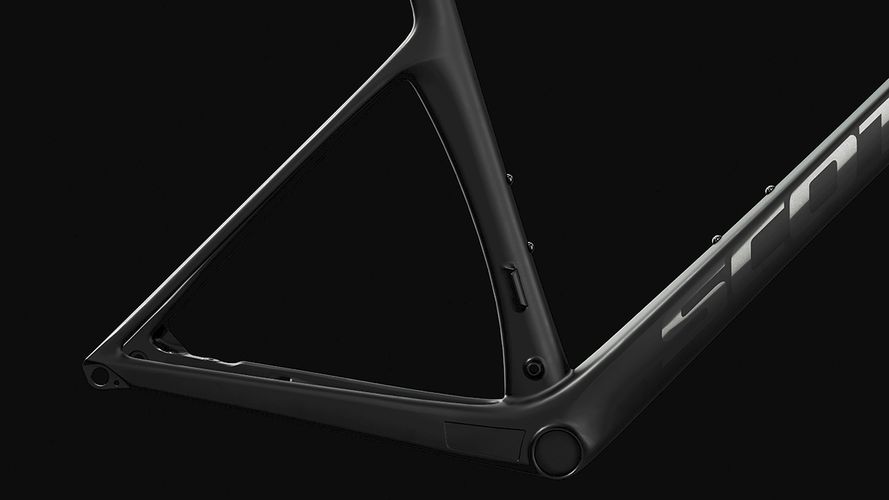

Comfort Zone
While the first Foil has been praised for its direct power transfer, responsive handling, low weight and aerodynamic excellence, some riders yearned for more comfort. So we increased vertical compliance, making comfort a key point in the requirements specification of the new Foil. The new Foil features a low seatstay attachment which in combination with a modified and noticeably thin seatstay shape leads to a smooth riding experience even on rough roads. The focused approach to improve comfort on the new Foil resulted in an increase in vertical compliance by 86% of the seattube area compared to its predecessor. Additionally, the fork compliance has been increased by 11% compared to the first edition of the Foil. Athlete
AWARDS AND MEDIA
Documents
