The SCOTT SUB Comfort 20 features comfortable geometry intended for everyday use. With a Shimano 21 speed transmission and a custom Racktime carrier that is compatible with Snap-it accessories, this bike has it all with regards to trekking around.
Please note that bike specifications are subject to change without prior notice -
Frame
Sub Comfort 6061 Tig welding -
Fork
SR Suntour M3010 / 50mm travel / coil -
Rear Derailleur
Shimano RD-TX800-SGS 7 Speed -
Front Derailleur
Shimano FD-TY510
-
Shifters
Shimano ST-EF41 -
Crankset
Shimano FC-TY301 C Black 48x38x28T -
BB-Set
VP-BC73C -
Chain
KMC Z51 -
Cassette
Shimano CS-HG200-7 12-28T Black -
Brake Levers
Shimano ST-EF41 -
Brakes
Promax TX123 -
Handlebar
HL NR-AL-16 W: 610mm Comfort -
H'stem
Syncros UC3.0 adjustable -
Seatpost
Syncros UC3.0 / 31.6mm -
Seat
Syncros Capilano -
Headset
GW semi integrated -
Hub (Front)
Shimano DH-C3000 Dynamo 32h -
Hub (Rear)
Shimano FH-TY500 32h -
Spokes
Pillar Steel 14g -
Rims
Cross X14, 32h -
Rear Tire
Schwalbe Road Cruiser 700x47c -
Lights
Front: Axa Compactline 35 / Rear: Axa -
Rack
Racktime w/ spring clamp SnapIt 2.0 / Curana extruded wide fender / Ursus Mooi kickstand -
Pedals
Syncros SP-827 -
Approx weight in KG
19 -
Approx weight in LBS
41.89 -
Max. System Weight
128 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
使用
現在レーダーチャートをご利用いただけません

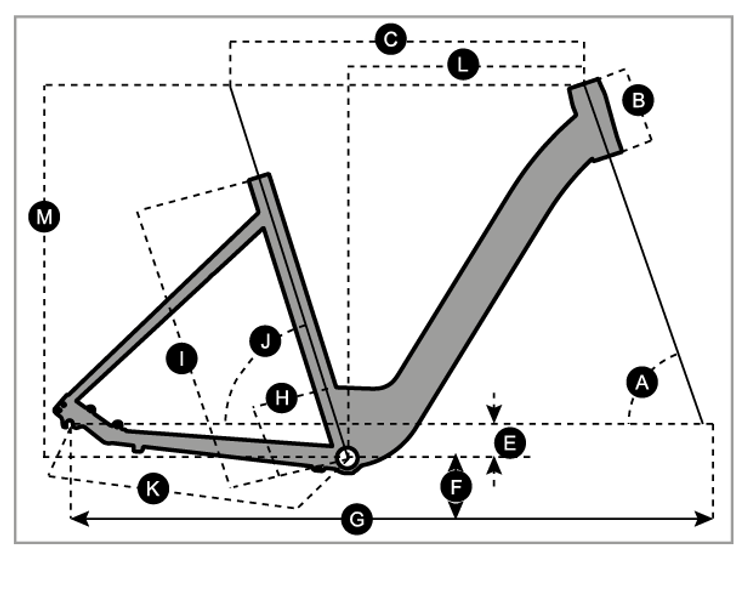

形状
| S | M | L | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle | 70.0 ° | 70.0 ° | 70.0 ° | |||||||||||||||
| B | head tube length | 160.0 mm | 170.0 mm | 180.0 mm | |||||||||||||||
| C | top tube horizontal | 545.0 mm | 565.0 mm | 585.0 mm | |||||||||||||||
| D | standover height | ||||||||||||||||||
| E | BB offset | -65.0 mm | -65.0 mm | -65.0 mm | |||||||||||||||
| F | BB height | 285.0 mm | 285.0 mm | 285.0 mm | |||||||||||||||
| G | wheel base | 1,059.9 mm | 1,080.4 mm | 1,101.1 mm | |||||||||||||||
| H | BB center to toptube center | 426.8 mm | 406.8 mm | 446.8 mm | |||||||||||||||
| I | BB center to top of seattube | 420.0 mm | 460.0 mm | 500.0 mm | |||||||||||||||
| J | seat angle | 73.0 ° | 73.0 ° | 73.0 ° | |||||||||||||||
| K | chainstay | 460.0 mm | 460.0 mm | 460.0 mm | |||||||||||||||
| L | reach | ||||||||||||||||||
| M | stack | ||||||||||||||||||
| N | stem length | 110.0 mm | 110.0 mm | 110.0 mm | |||||||||||||||
