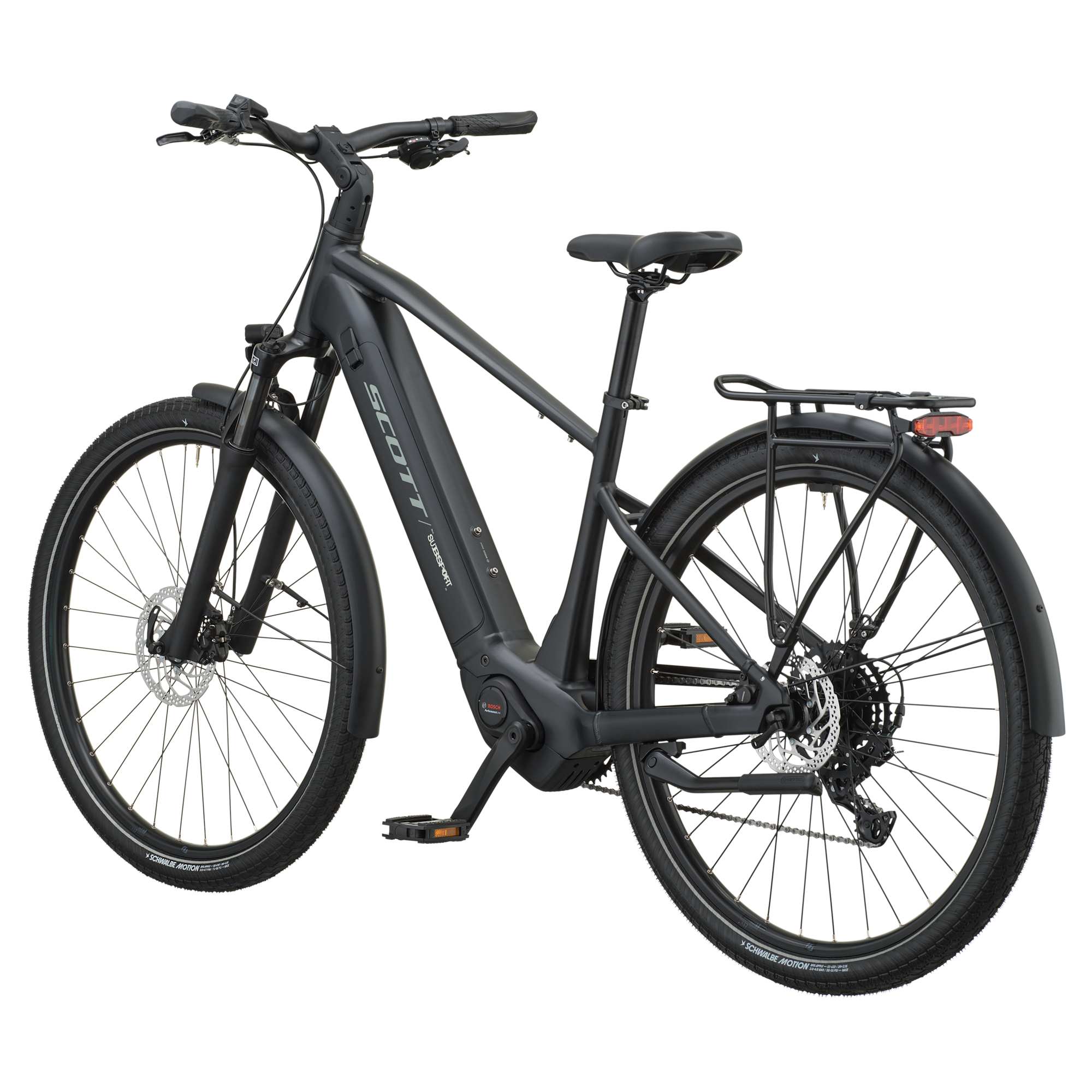

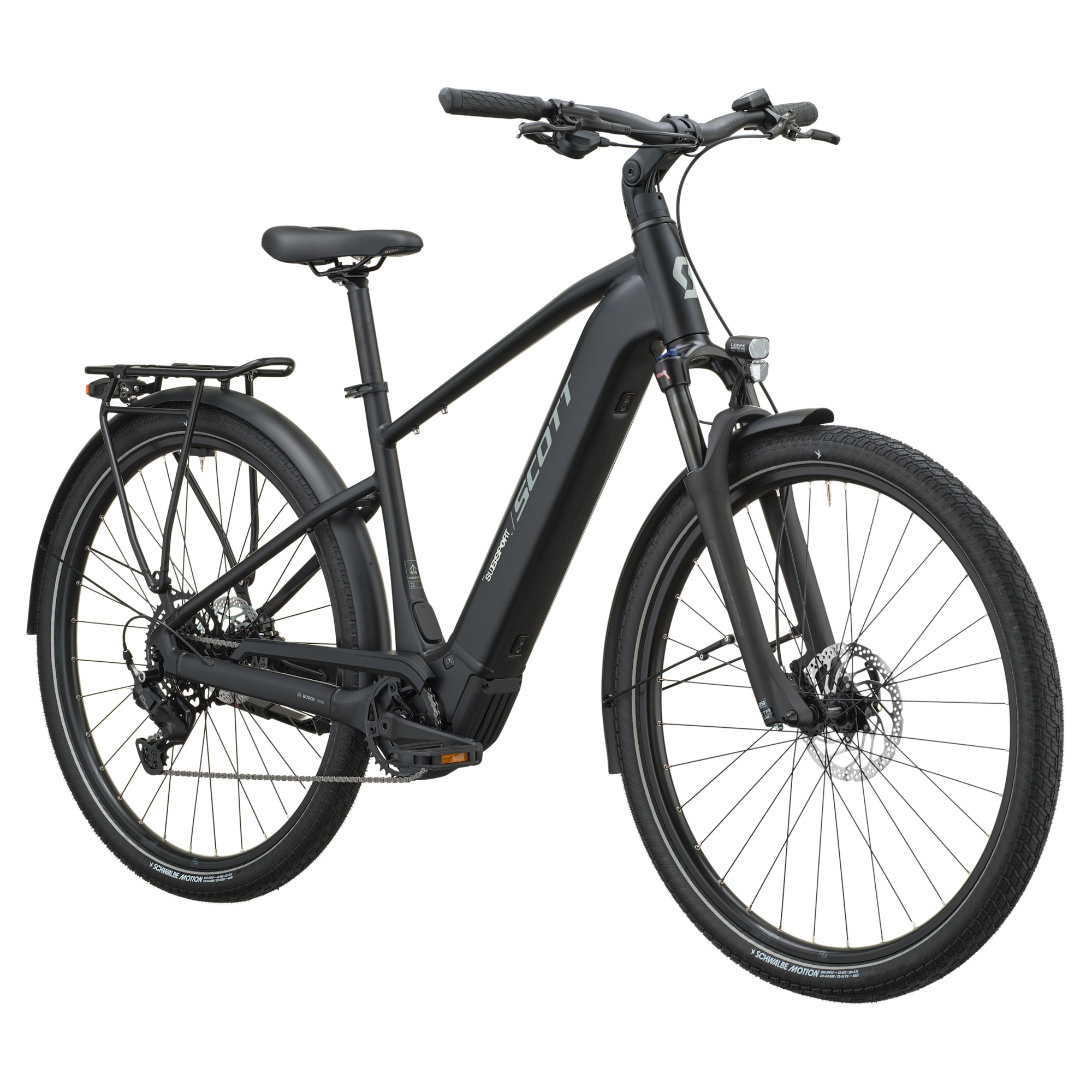

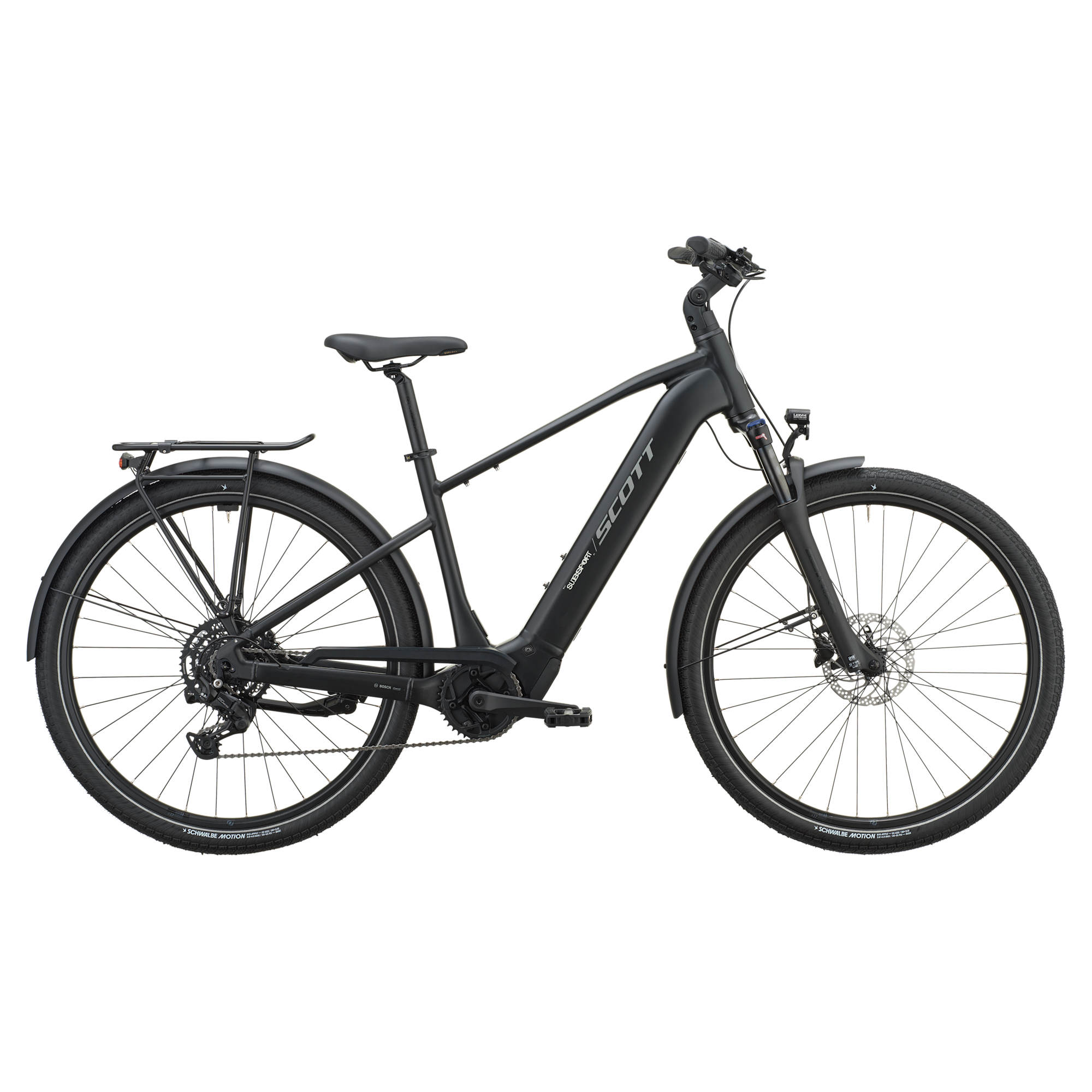

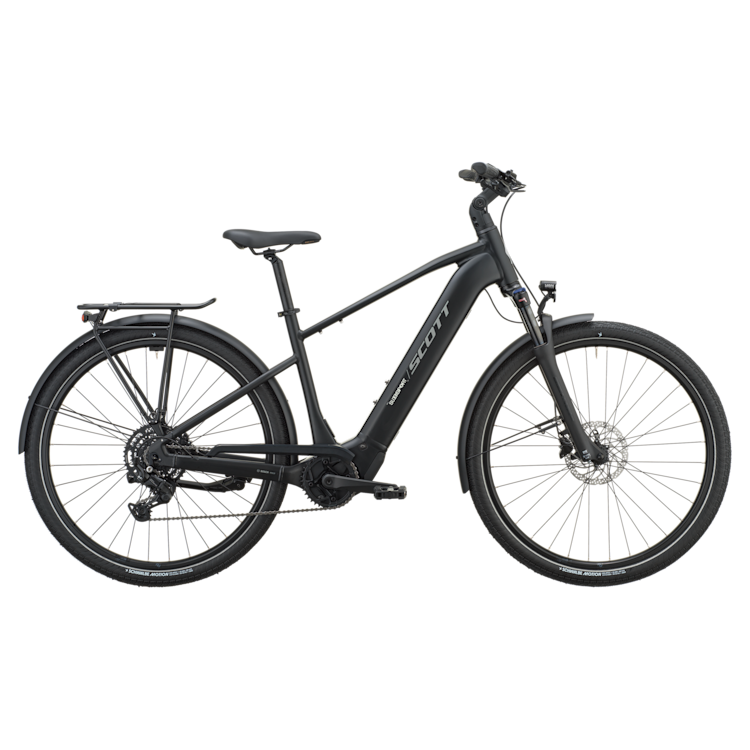

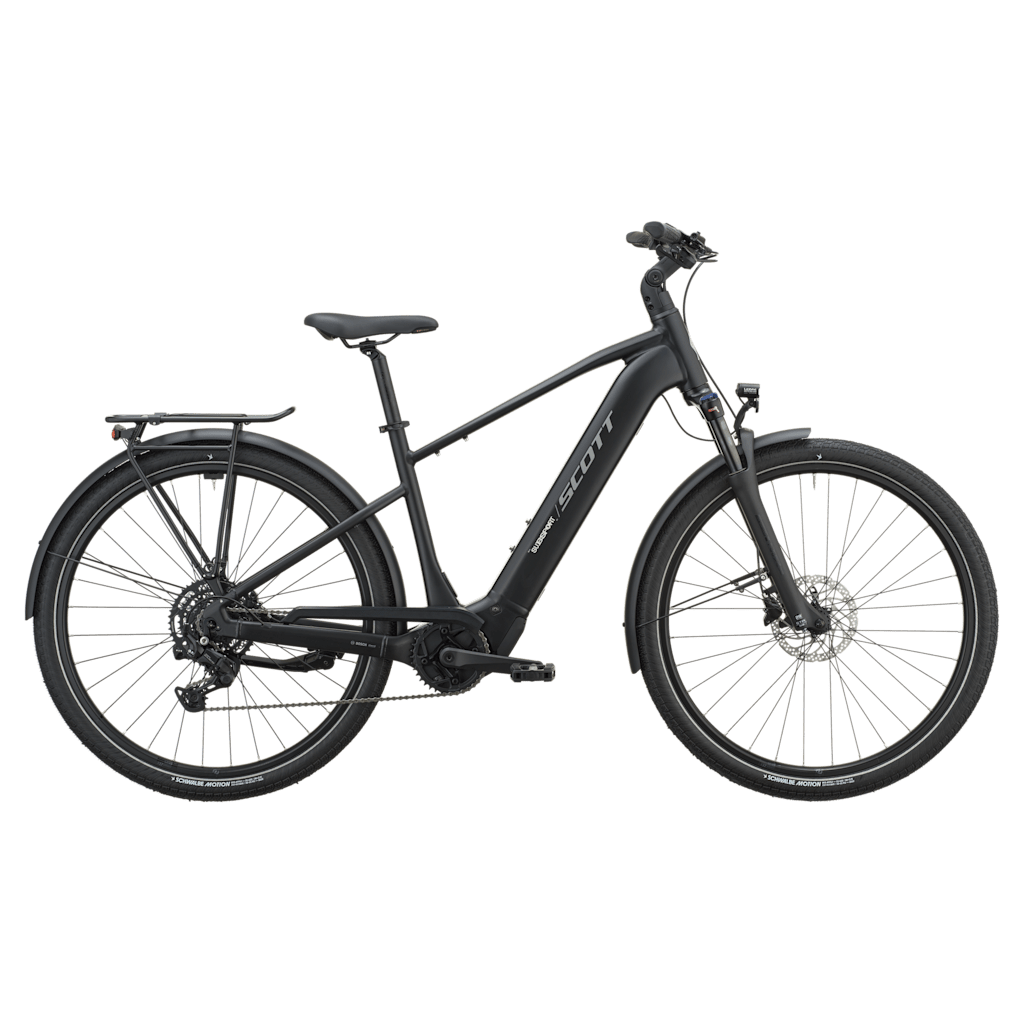

Scott Sub Sport 30 Bike
Model : 427678
Key Features
- Alloy frame with integrated battery
- Bosch Performance Line motor, 75Nm
- Removable Bosch PowerTube 540Wh
- SR Suntour front fork, 100mm
- Shimano Cues 9 speed drivetrain
- Schwalbe Big Apple Performance tires
- Adjustable stem with SP Connect
- Lezyne front and rear lights
- Racktime rack, SNAPIT 2.0, KID'nCARRY, 30kg
1. Color : black
2. Size
-
The SCOTT SUB Sport 30 E-Bike turns everyday riding into a comfortable, supported, and enjoyable experience.
Bosch's Performance motor, paired with a removable 540Wh battery, provides a naturally smooth acceleration and a range that comfortably handles commutes as well as longer, leisurely rides around town. With multiple assist modes, you can adjust the level of boost you need—whether you’re conquering a hill with confidence or conserving energy for a further destination.
The stem is fully adjustable, letting you transition from a relaxed, ergonomic posture to a sportier, more responsive riding position. An integrated SP connection securely holds your phone, keeping navigation in clear view and your hands free for a safer, more attentive ride.
The rear rack supports up to 30kg and is compatible with Racktime SNAPIT 2.0 and KID'n’CARRY systems, so loading up groceries, supplies, or a child’s seat is stress-free.

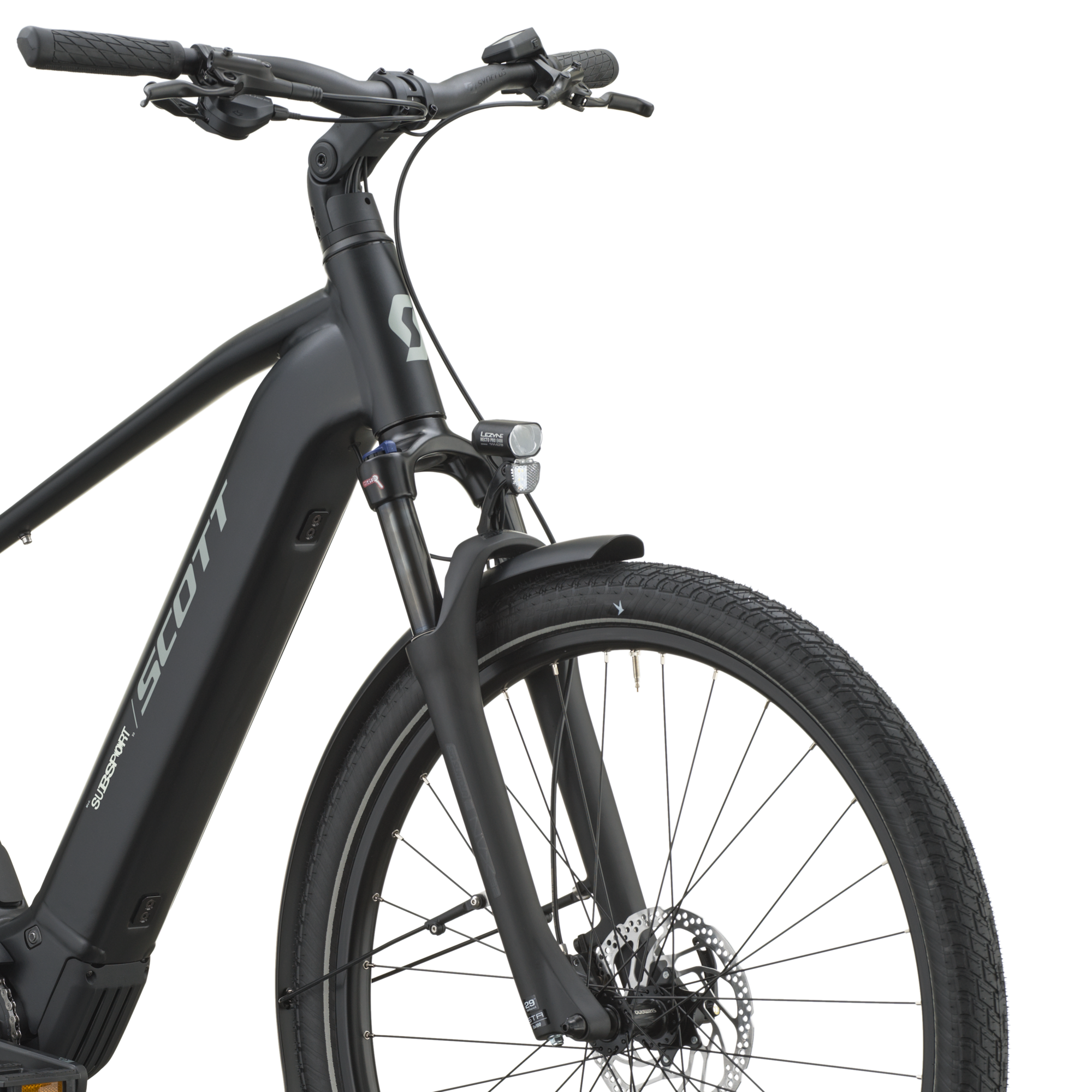

The front light is positioned on the fork to free up space for a front basket, giving you additional carrying capacity.

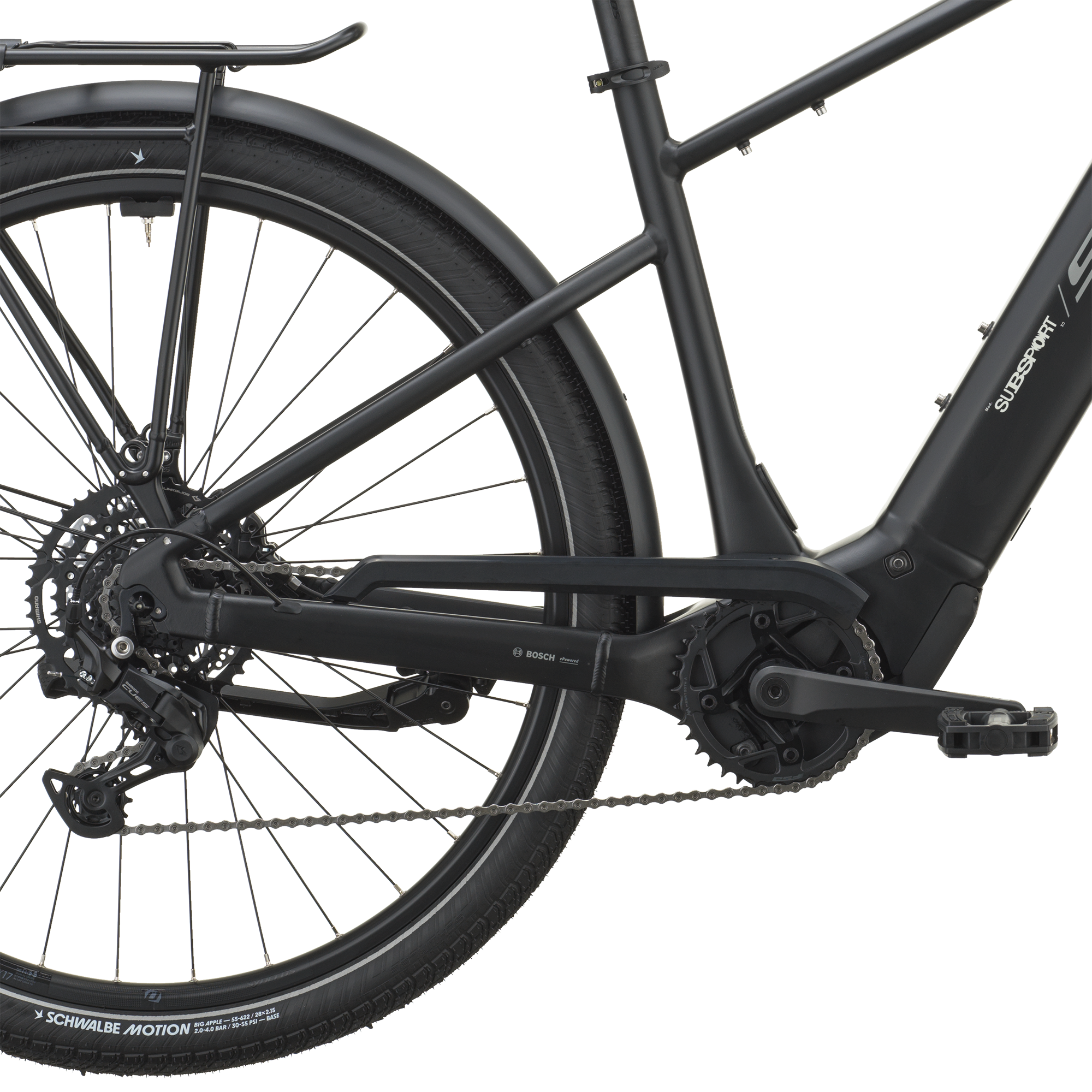

A front‑suspension fork cushions rough patches, while Shimano’s dependable 9‑speed drivetrain supplies precise gearing for any terrain you encounter.
Please note that bike specifications are subject to change without prior notice. -
Frame
Alloy S-XXL=29", 6061 Alloy custom butted tubing, Side extraction battery, UDH Interface, 141mm QR with 52mm Chainline -
Travel
100mm -
Fork
SR Suntour NVX 32 5TA COIL LO -
Drive Unit
Bosch Performance Line (BDU346Y)
-
Battery
Bosch PowerTube 540Wh -
Display
Bosch Purion 200 -
Charger
Bosch 2A Charger 230V -
Rear Derailleur
Shimano Cues RD-U4000 9-Speed -
Shifters
Shimano Cues SL-U4000 With Display -
Crankset
FSA CK 220 170mm -
Chainguide
Chaincase cover -
Chainring
FSA 38T w/o Chain Guard -
Chain
Shimano CN-LG500 -
Cassette
Shimano Cues CS-LG300, 9-Speed 11-46T -
Brakes
Shimano BR-MT200 2-Piston -
Front Disc Rotor
Shimano SM-RT30 CL, 180mm -
Rear Disc Rotor
Shimano SM-RT30 CL, 160mm -
Grips
Urban Comfort -
Handlebar
Syncros UC3.0 680mm, Rise 12mm, Backsweep 15° -
H'stem
JD, Adjustable, 31.8*90 mm −10°~+60°, SP Connect -
Seatpost
Syncros M3.0, 31.6mm, 350mm -
Seat
Selle Royal Explora Moderate 170mm -
Headset
Feimin, 28.8-56-62(39.8/30), H887 Bearing Cup -
Front Hub
Shimano HBQC400B58LL, 5x100mm -
Rear Hub
Shimano FH-QC400-HM QR -
Spokes
Stainless Black 13G -
Front Rim
X18 Disc -
Rear Rim
X18 Disc -
Front Tire
Schwalbe Big Apple Performance, 55-622 -
Rear Tire
Schwalbe Big Apple Performance, 55-622 -
Front Light
Lezyne Mini Lite STVZO E350 -
Rear Light
Lezyne Superbright STVZO -
Rack
Racktime carrier SNAPIT 2.0 30Kg KID'n'CARRY Ready -
Fender
Metasol 65 -
Pedals
Marwi SP-827 -
Extras
Ursus U-Mount Kickstand -
Approx weight in KG
27.7 -
Approx weight in LBS
61.07 -
Max. System Weight
160kg
The overall weight includes the bike, the rider, the equipment and possible additional luggage.

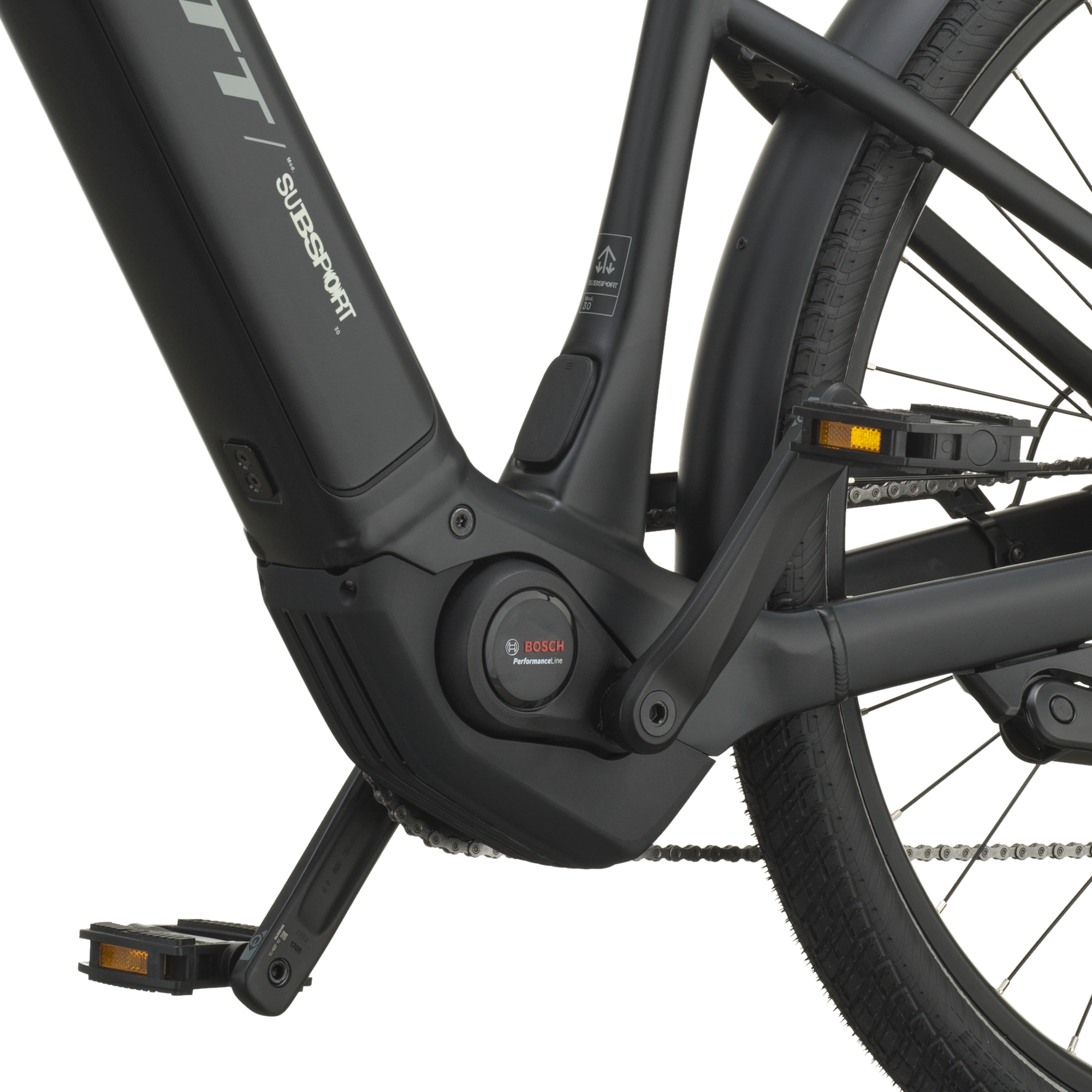

Bosch Performance Motor and 540 Wh Battery
Confident support for every ride. Delivering up to 75 Nm of torque, the Bosch Performance motor provides smooth, intuitive support for everything from daily commuting to weekend adventures. Combined with a removable 540 Wh Bosch battery, it offers the range and flexibility to confidently take on city streets and routes beyond.

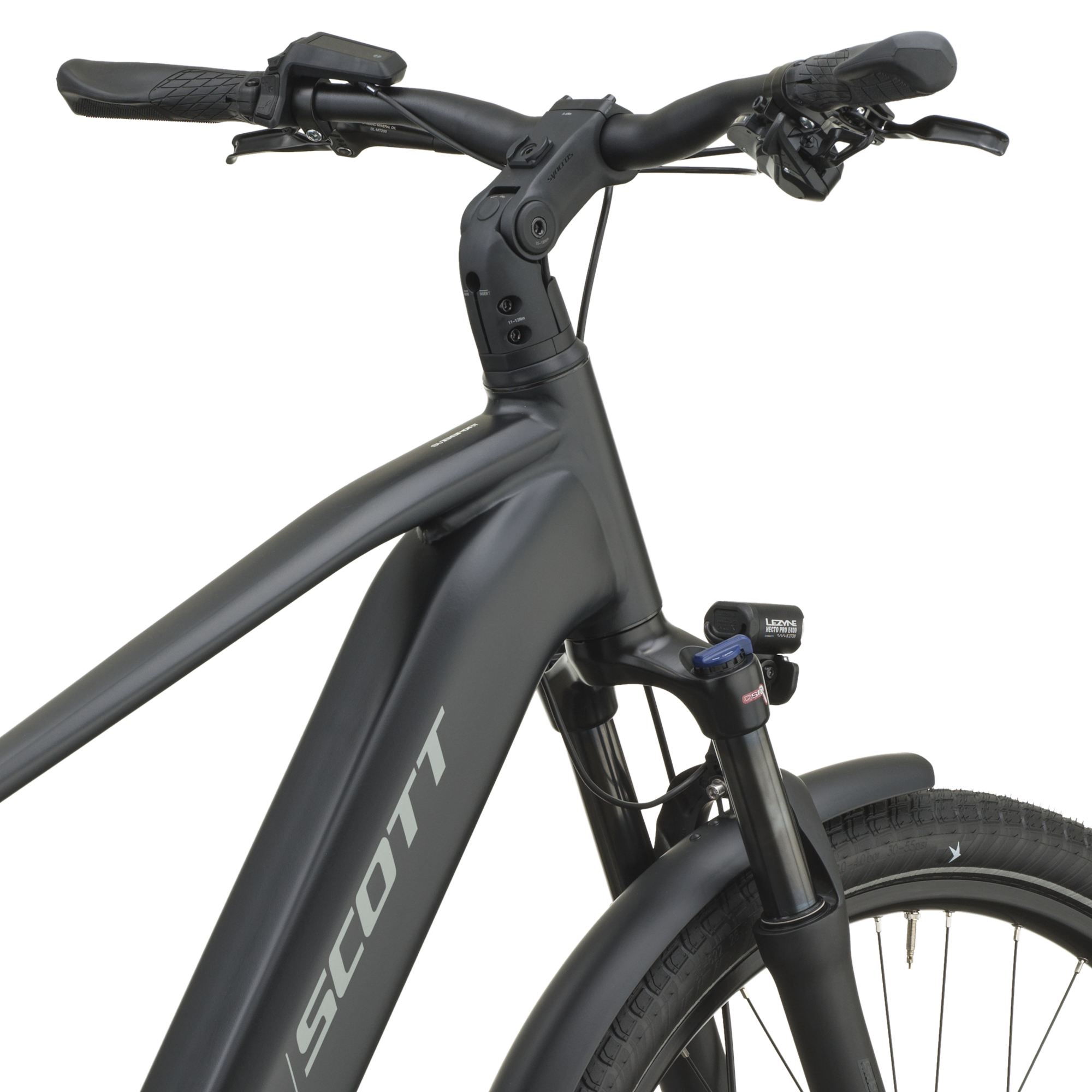

Adjustable Stem with SP Connect
A setup that adapts to you. The adjustable stem makes it easy to find a comfortable riding position that suits your needs. With an SP Connect mount integrated directly into the stem, your smartphone stays securely in place, keeping navigation and ride information within easy view.

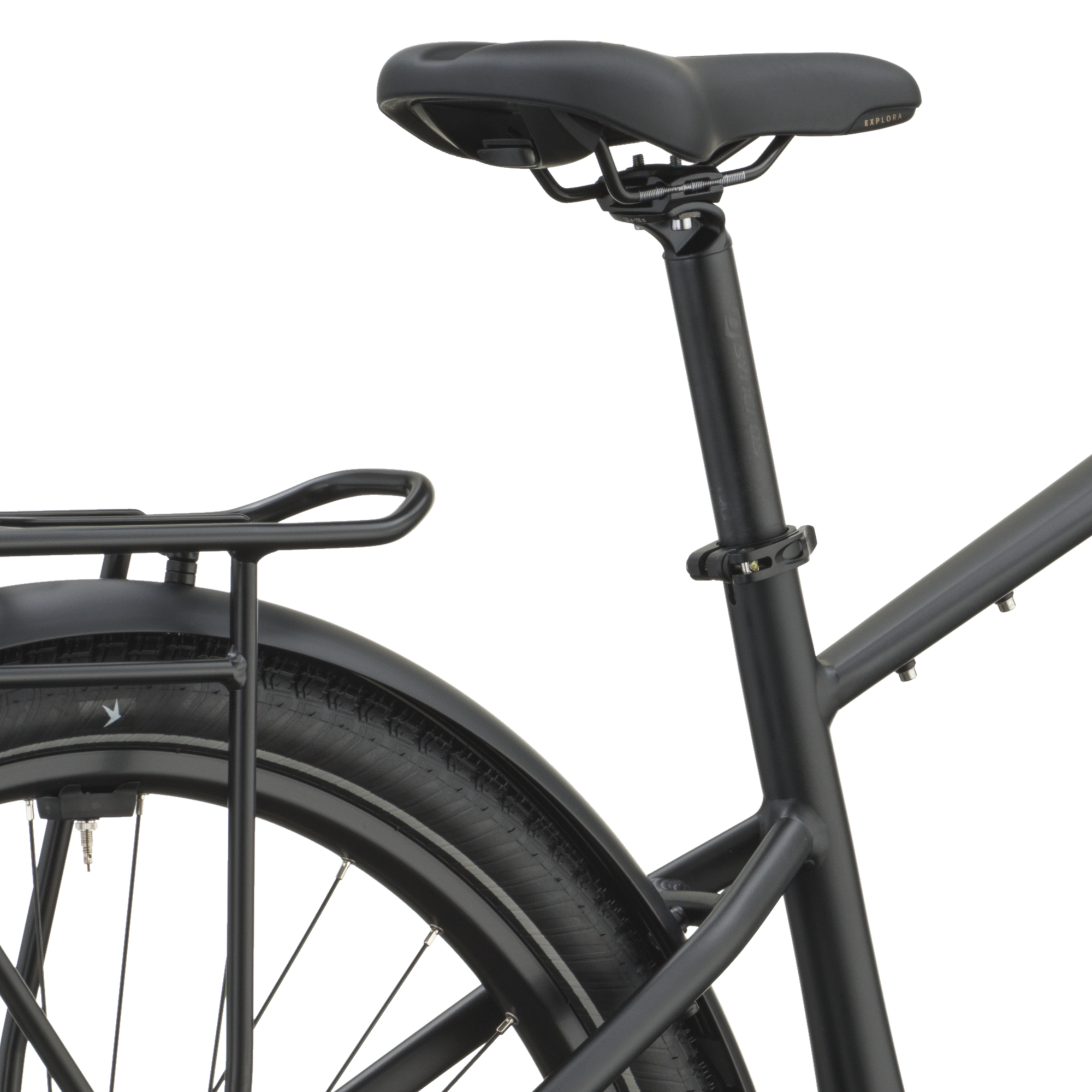

Rear Rack and Lights
Ready for everyday and beyond. Whether you're carrying groceries, heading to work, or attaching a child seat, the rear rack is designed to adapt to your needs. Compatible with Racktime SNAPIT 2.0 and KID'n'CARRY systems, it supports loads of up to 30 kg for added versatility. Integrated front and rear lights help you see and be seen in changing conditions.
SUB GEOMETRY
With diverse needs in mind, we have designed the bike’s geometry with two frame shapes, a more classic frame and a low step-through called “wave”, which is easier to mount and dismount. Pick the one that fits best suits you.
