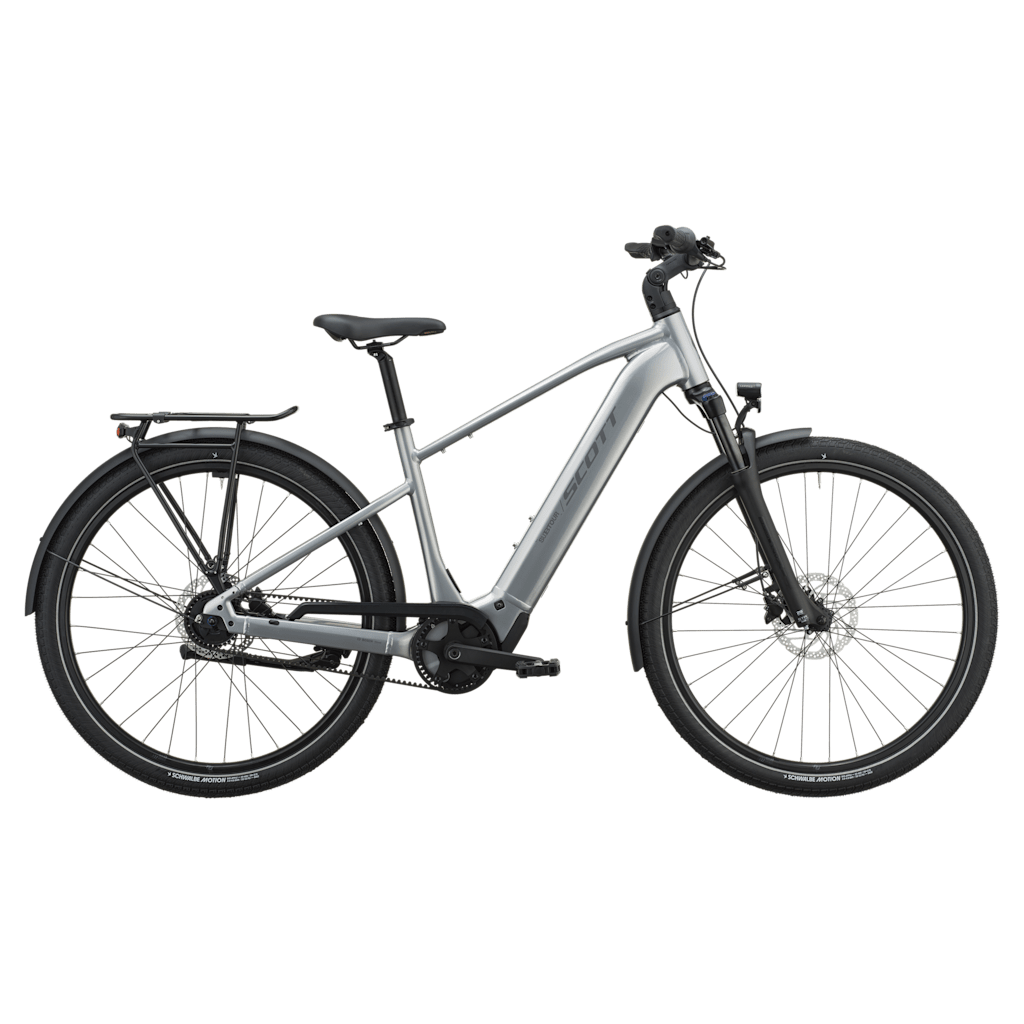

Scott Sub Tour 30 Bike
Model : 427670
Key Features
- Alloy frame with integrated battery
- Bosch Performance Line motor, 75Nm
- Removable Bosch PowerTube 720Wh
- Shimano Nexus Inter 5e internal gear hub
- Racktime rack, SNAPIT 2.0, KID'nCARRY, 30kg
- Shimano 2 piston brakes
- SR Suntour front fork, 100mm
- Adjustable stem with SP Connect
- Lezyne front and rear lights
- Schwalbe Big Apple Performance tires
1. Color : chrome silver
2. Size
-
The SCOTT SUB Tour 30 E-Bike is the confident, dynamic choice for urban riding. Powered by Bosch Performance motor and a strong, removable 720Wh battery, it delivers precise, natural‑feeling power across every mode, whether you’re tackling a short commute or a longer weekend adventure.
The belt‑driven drivetrain provides smooth, low-maintenance propulsion. At the same time, an adjustable stem lets you customize your fit for a comfortable upright posture or a sportier riding position. Need your phone within reach? The stem’s integrated SP connection secures your device so that you have quick navigation always in view.
Every detail is engineered for reliability. The internal gear cluster in the rear hub extends drivetrain life and reduces maintenance, while the front suspension fork smooths out rough surfaces, keeping the ride comfortable on uneven streets.
The rear rack makes carrying easier— supporting up to 30kg and compatible with Racktime SNAPIT 2.0 and KID'n’CARRY systems. Even more, the front light is thoughtfully positioned to free up space for a front basket, expanding your cargo‑carrying opportunities.
Choose the SUB Tour 30 E-Bike for a confident, capable experience—where ease meets practicality, and every journey feels just right.
Please note that bike specifications are subject to change without prior notice. -
Frame
Alloy S-XXL=29", 6061 Alloy custom butted tubing, Side extraction battery, 135mm with 46mm Beltline -
Travel
100mm -
Fork
SR Suntour NVX 32 5TA COIL LO -
Drive Unit
Bosch Performance Line (BDU346Y)
-
Battery
Bosch PowerTube 720Wh -
Display
Bosch Purion 200 -
Charger
Bosch 2A Charger 230V -
Rear Derailleur
Shimano Nexus Inter 5e -
Shifters
Nexus 5 Revo Shifter -
Crankset
Miranda Virage 170mm -
Chainguide
Chaincase cover -
Chainring
Gates CDC 46T w/Guard -
Chain
Gates CDC 130T -
Cassette
Gates CDX 32T -
Brakes
Shimano BR-MT200 2-Piston -
Front Disc Rotor
Shimano SM-RT30 CL, 180mm -
Rear Disc Rotor
Shimano SM-RT30 CL, 160mm -
Grips
Urban Comfort -
Handlebar
Syncros UC3.0 680mm, Rise 12mm, Backsweep 15° -
H'stem
JD, Adjustable, 31.8*90 mm −10°~+60°, SP Connect -
Seatpost
Syncros M3.0, 31.6mm, 350mm -
Seat
Selle Royal Explora Moderate 170mm -
Headset
Feimin, 28.8-56-62(39.8/30), H887 Bearing Cup -
Front Hub
Shimano HBQC400B58LL, 5x100mm -
Spokes
Stainless Black 13G -
Front Rim
X18 Disc -
Rear Rim
X18 Disc -
Front Tire
Schwalbe Big Apple Performance, 55-622 -
Rear Tire
Schwalbe Big Apple Performance, 55-622 -
Front Light
Lezyne Mini Lite STVZO E350 -
Rear Light
Lezyne Superbright STVZO -
Rack
Racktime carrier SNAPIT 2.0 30Kg KID'n'CARRY Ready -
Fender
Metasol 65 -
Pedals
Marwi SP-827 -
Extras
Ursus U-Mount Kickstand -
Approx weight in KG
28.1 -
Approx weight in LBS
61.95 -
Max. System Weight
160kg
The overall weight includes the bike, the rider, the equipment and possible additional luggage.
BELT AND NEXUS INTERNAL GEARED HUB
SUB features a belt-driven drivetrain and Shimano Nexus internal gear hub. This is the perfect combination for minimal maintenance, less noise and longer durability. A belt drive works without oil, meaning it needs to be replaced less often, no more getting dirty and no rust on the chain – a win-win-win situation!The Shimano Nexus hub shifts smoothly and, as it is protected in the hub housing the gear, it is easier to maintain.
Bosch Performance Line Motor & 720 Wh Battery
Ready for the everyday and beyond. Whether you're commuting through the city or heading out for a longer adventure, the Bosch Performance Line motor (up to 75Nm) delivers smooth assistance and confidence for every journey. Paired with a removable 720 Wh battery, it offers the range and flexibility to take on daily rides and beyond. When you want to explore even further, compatibility with the Bosch PowerMore 250 range extender gives you added peace of mind.
SUB GEOMETRY
With diverse needs in mind, we have designed the bike’s geometry with two frame shapes, a more classic frame and a low step-through called “wave”, which is easier to mount and dismount. Pick the one that fits best suits you.
Adjustable Stem with SP Connect
A setup that adapts to you. The adjustable stem makes it easy to find a comfortable riding position that suits your needs. With an SP Connect mount integrated directly into the stem, your smartphone stays securely in place, keeping navigation and ride information within easy view.
Rear Rack and Lights
Ready for everyday and beyond. Whether you're carrying groceries, heading to work, or attaching a child seat, the rear rack is designed to adapt to your needs. Compatible with Racktime SNAPIT 2.0 and KID'n'CARRY systems, it supports loads of up to 30 kg for added versatility. Integrated front and rear lights help you see and be seen in changing conditions.
