SCOTT Sub Sport 10 Lady Bike

Model : 290719

SCOTT Sub Sport 10 Lady Bike

Key Features

  • Sub Sport Women Alloy Frame
  • Front suspension: Suntour 63mm
  • Shimano 10 Speed
  • Shimano Disc Brakes

1. Size

Size chart
Find a dealer
SPECIFICATIONS
  • The SCOTT SUB Sport 10 features a sporty trekking geometry that suits trips of all distances. Equipped with a Shimano 30 speed transmission, a custom Racktime carrier and compatibility with Snap'it accessories, this bike is begging to go on an adventure.

    Please note that bike specifications are subject to change without prior notice.

    condition of usage 2
    Example Trekking bike, travel bike
    Please check the detail for more information

  • Frame

    Sub Sport 6061 Tig welding

  • Fork

    Suntour NRX-D Air / lockout / 63mm Travel

  • Rear Derailleur

    Shimano XT RD-T8000SGS 10 Speed

  • Front Derailleur

    Shimano Deore FD-T6000

  • Shifters

    Shimano Deore SL-T6000

  • Crankset

    Shimano FC-T8000 48x36x26T

  • BB-Set

    Included with crankset

  • Chain

    KMC X10

  • Cassette

    Shimano CS-HG500-10 11-34T

  • Brake Levers

    Shimano BL-M200

  • Brakes

    Shimano BR-M200

  • Rotor

    160/F SM-RT10 and 160/R SM-RT10

  • Handlebar

    Syncros 3.0 680mm Rise: 12 mm
    Backsweep: 15°
    31.8

  • H'stem

    Syncros UC3.0 adjustable

  • Seatpost

    Syncros UC3.0 / 31.6mm

  • Seat

    Syncros Capilano

  • Headset

    GW semi integrated

  • Hub (Front)

    Shimano Deore DH-3D37 dynamo CL 32h

  • Hub (Rear)

    Shimano FH-QC400 32H CL QR * BLACK

  • Spokes

    Pillar Steel 14G

  • Rims

    X15 Disc
    32h

  • Rear Tire

    Schwalbe Road Cruiser 700x47c

  • Lights

    Front: Axa Compactline 35 / Rear: Axa Juno

  • Rack

    Racktime Standit w/ spring clamp SnapIt 2.0 / Curana extruded wide fender / Ursus Mooi kickstand

  • Pedals

    Syncros SP-827

  • Approx weight in KG

    17

  • Approx weight in LBS

    37.48

  • Max. System Weight

    128kg
    The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Use
No Radar Chart Available Currently
Geometry

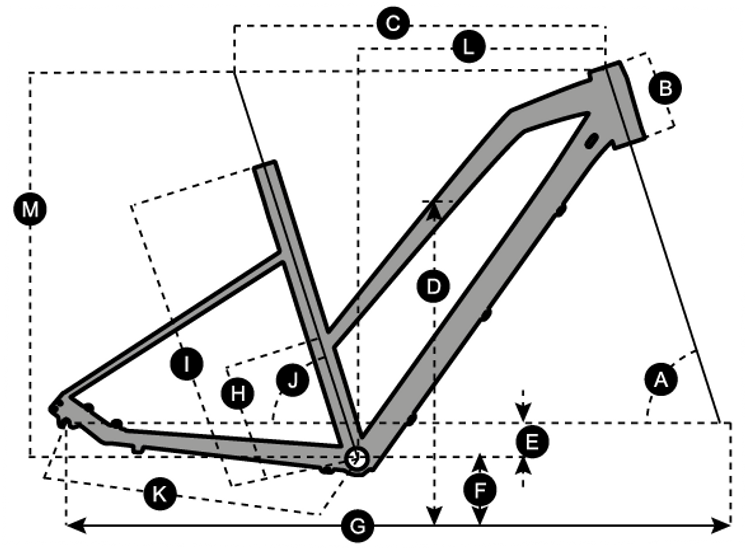

Geometry of SCOTT Sub Sport 10 Lady Bike
S M L
A head tube angle 70.0 ° 70.0 ° 70.0 °
B head tube length 185.0 mm 7.3 in 185.0 mm 7.3 in 185.0 mm 7.3 in
C top tube horizontal 555.0 mm 21.9 in 570.0 mm 22.4 in 595.0 mm 23.4 in
D standover height 681.1 mm 26.8 in 678.3 mm 26.7 in 680.6 mm 26.8 in
E BB offset -65.0 mm -2.6 in -65.0 mm -2.6 in -65.0 mm -2.6 in
F BB height 289.5 mm 11.4 in 289.5 mm 11.4 in 289.5 mm 11.4 in
G wheel base 1,078.6 mm 42.5 in 1,093.6 mm 43.1 in 1,118.6 mm 44.0 in
H BB center to toptube center 252.0 mm 9.9 in 292.0 mm 11.5 in 332.0 mm 13.1 in
I BB center to top of seattube 440.0 mm 17.3 in 480.0 mm 18.9 in 520.0 mm 20.5 in
J seat angle 73.5 ° 73.5 ° 73.5 °
K chainstay 455.0 mm 17.9 in 455.0 mm 17.9 in 455.0 mm 17.9 in
L reach 364.1 mm 14.3 in 379.1 mm 14.9 in 404.1 mm 15.9 in
M stack 644.6 mm 25.4 in 644.6 mm 25.4 in 664.6 mm 26.2 in
N stem length 90.0 mm 3.5 in 90.0 mm 3.5 in 90.0 mm 3.5 in
0 trail
