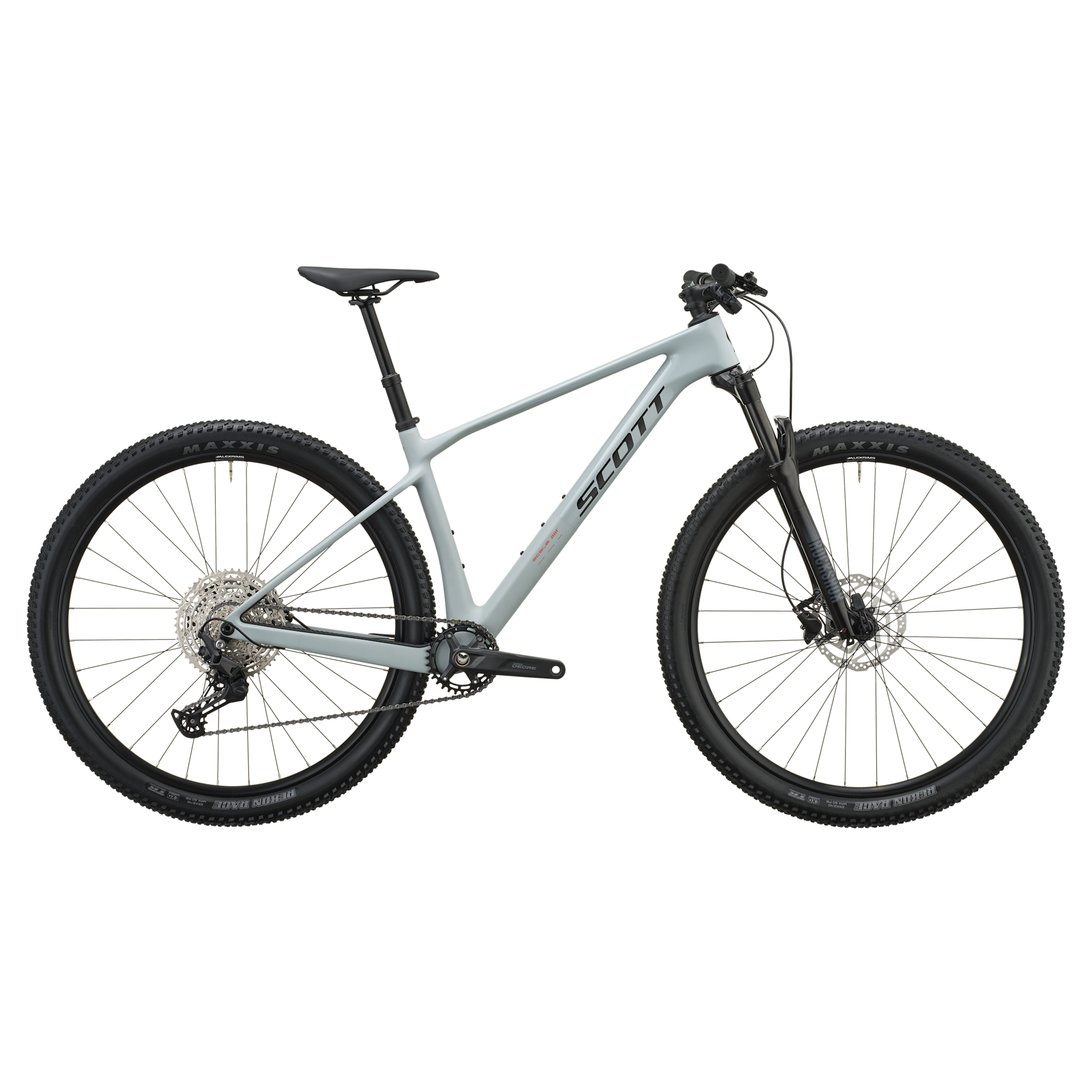

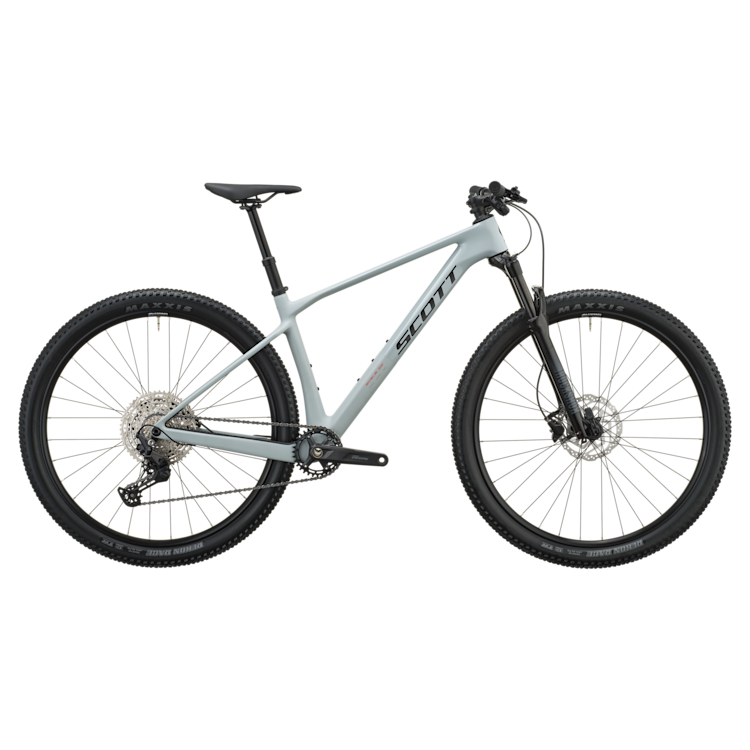

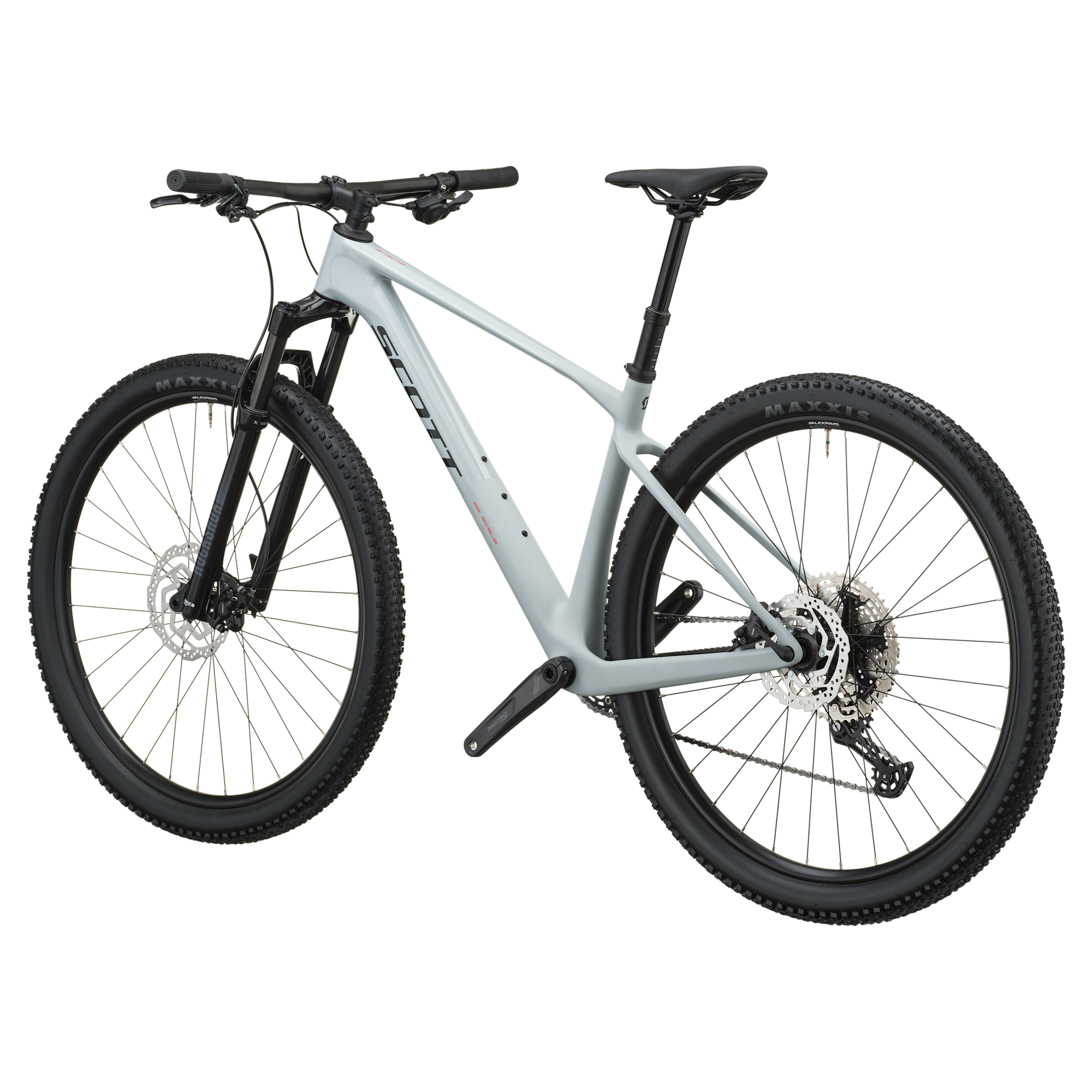

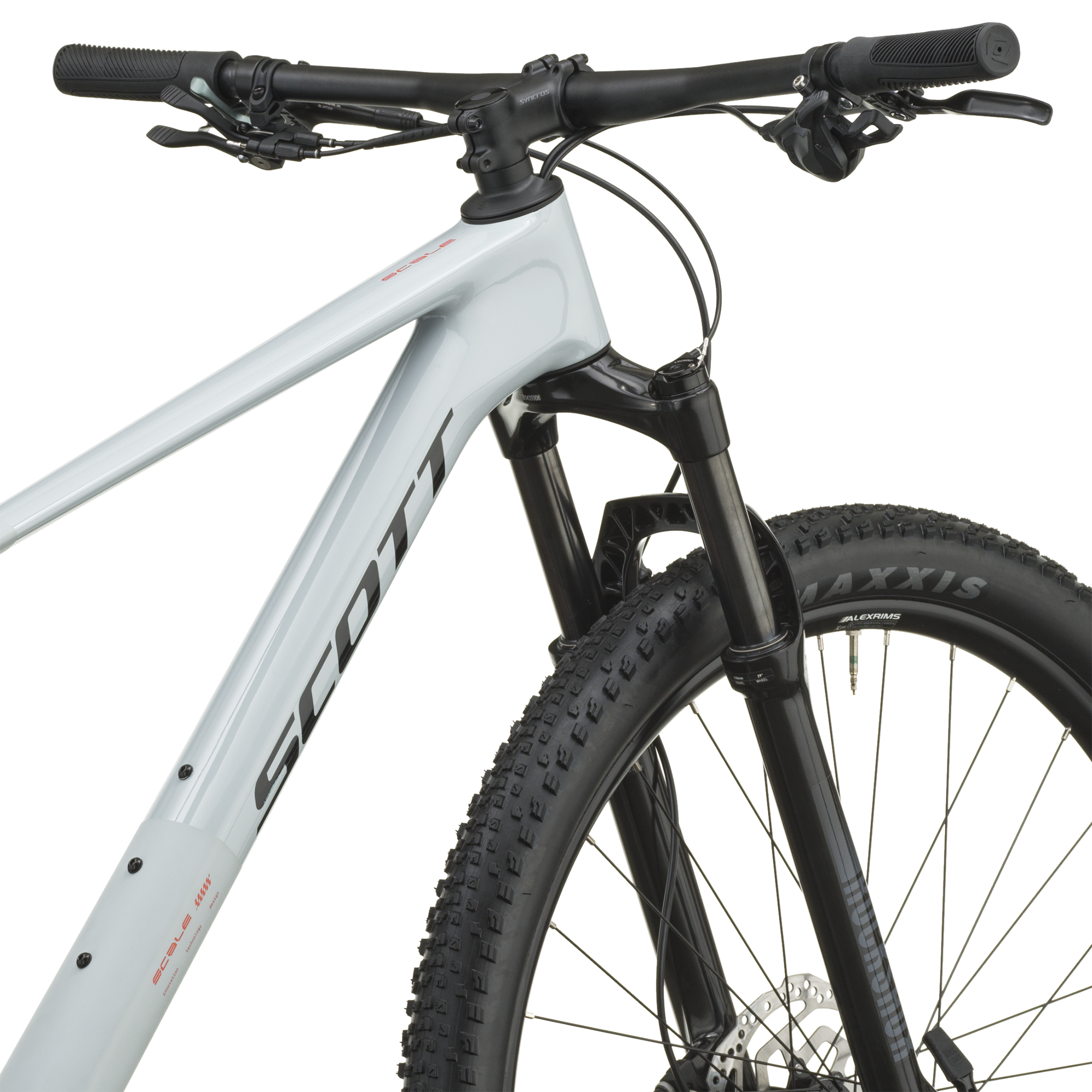

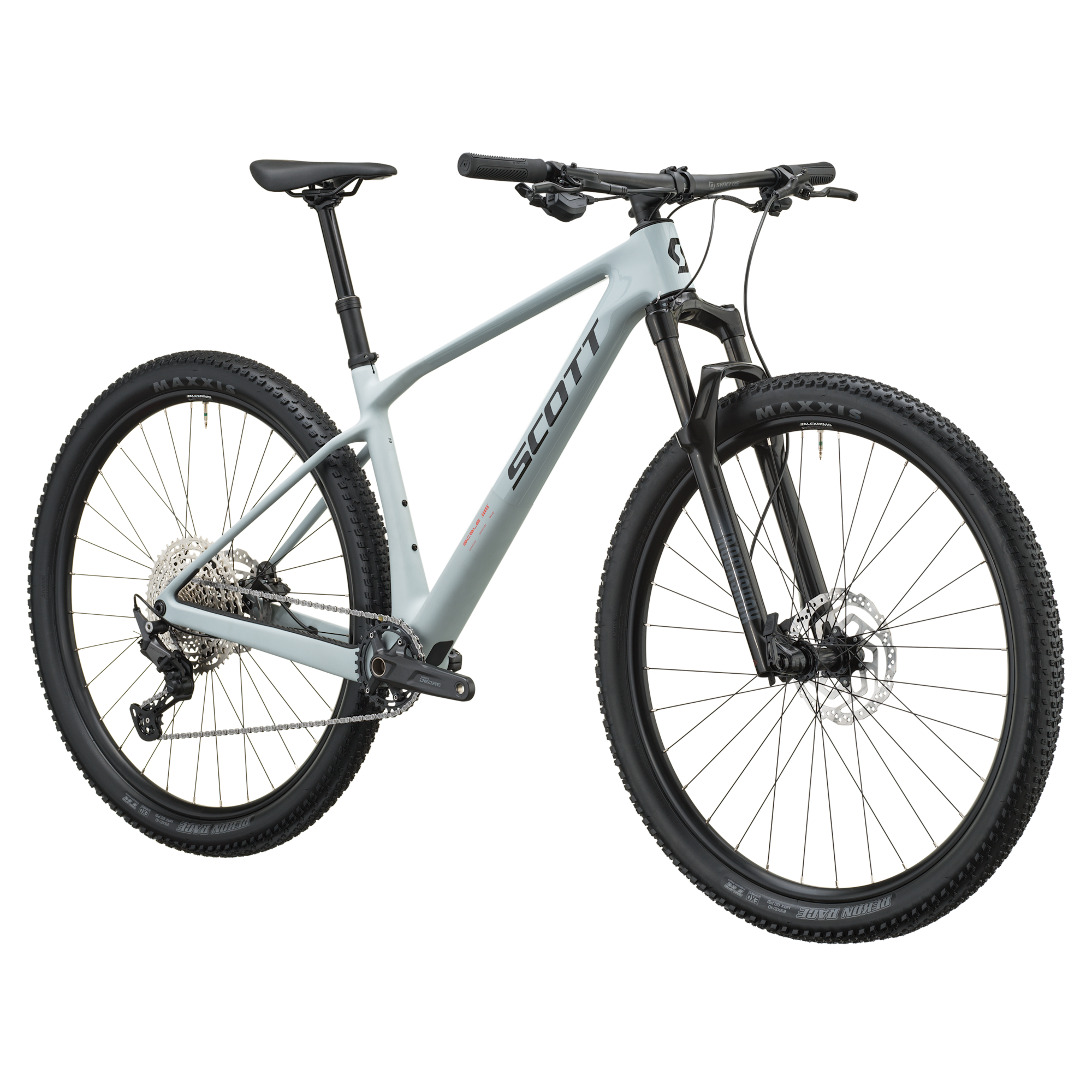

Scott Scale 20 Bike
Model : 427575
Key Features
- Scale HMF Carbon frame
- RockShox Judy suspension, 110mm
- Shimano Deore 12 Speed drivetrain
- Shimano disc brakes
- Maxxis Rekon Race foldable TR tires
- Syncros dropper post
1. 颜色 : highrise grey
2. 尺码
SPECIFICATIONS
-
Balancing the Scale’s DNA , we’ve created a whole new breed in the world of hardtail mountain bikes. A racing inspired geometry, coupled with a straightforward and sharp design provides the Scale 900 line with its distinctive character and aggressive look - a bike that proudly flaunts its definitive characteristics. This rig is ready for just about anything, are you?
Please note that bike specifications are subject to change without prior notice. -
Frame
Scale HMF Carbon, adjustable head angle, Syncros Cable Integration System, advanced shock & standing damping system, BB92, UDH interface, 12x148mm with 55mm chainline -
Travel
Front: 110 mm -

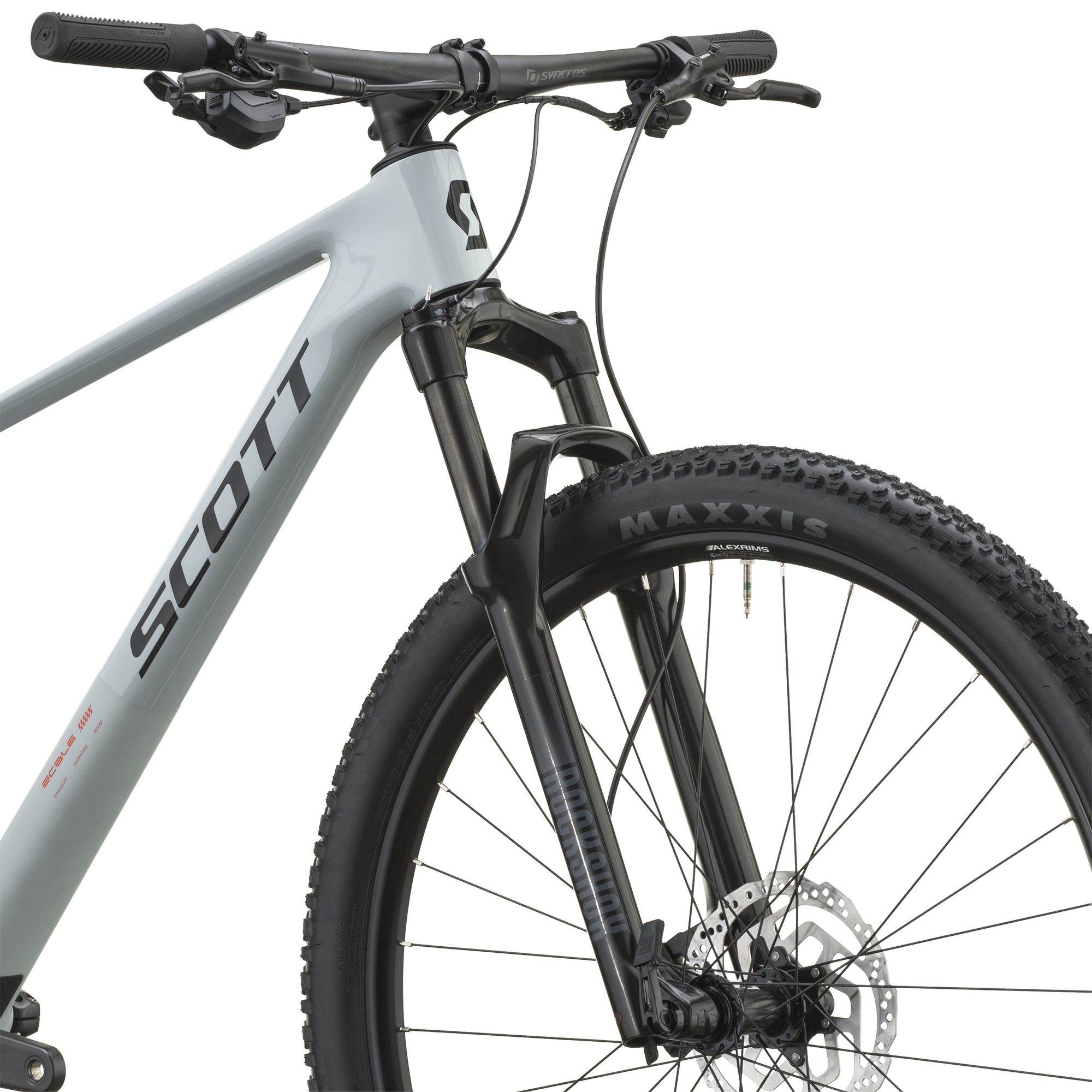

Fork
RockShox Judy Silver TK Solo Air, 15x110mm axle, tapered steerer, Reb. Adj., Lockout -
Remote System
SCOTT RideLoc Technology, Suspension & Dropper Remote, 2 Suspension modes
-

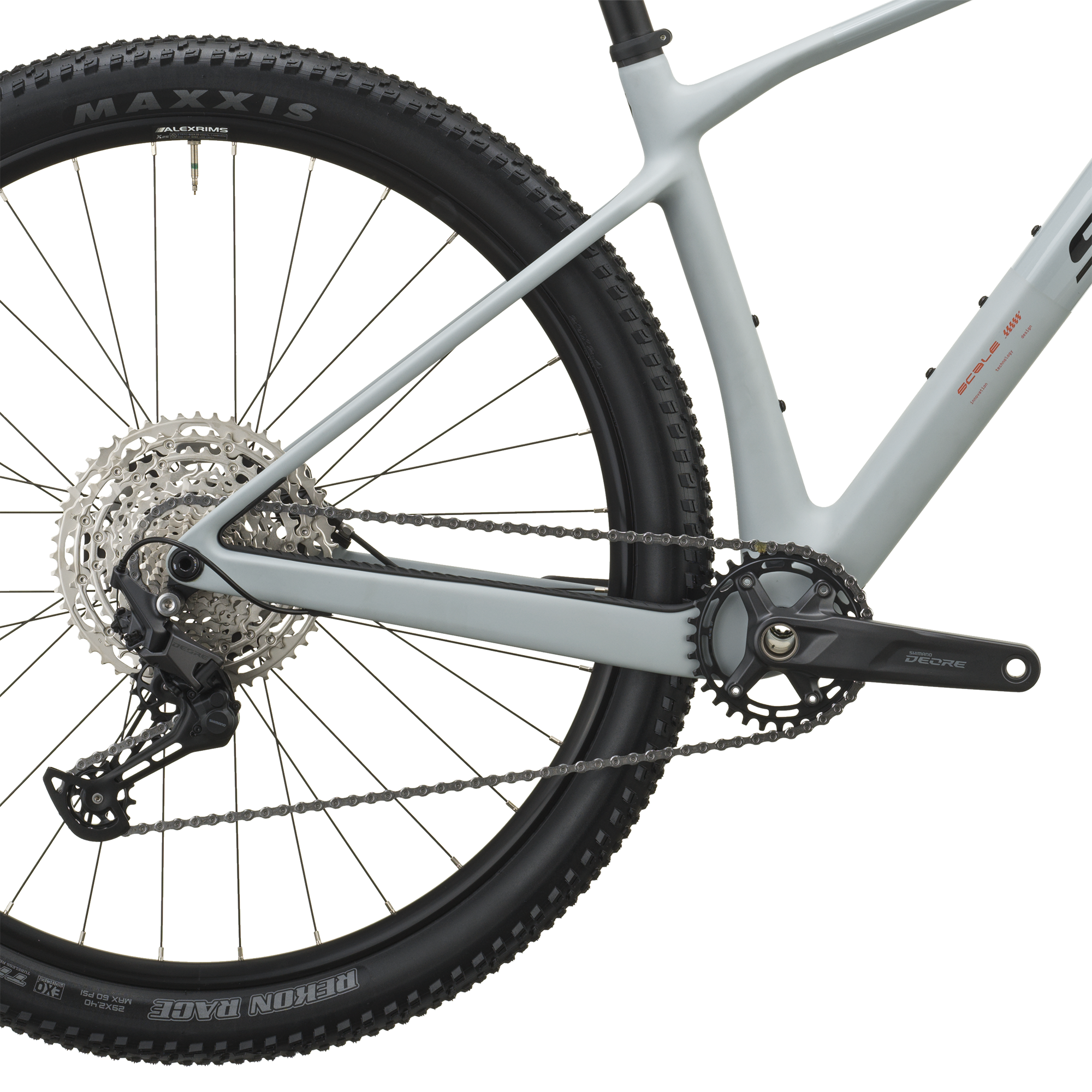

Rear Derailleur
Shimano Deore RD-M6200 12-speed -
Shifters
Shimano Deore SL-M6200 -

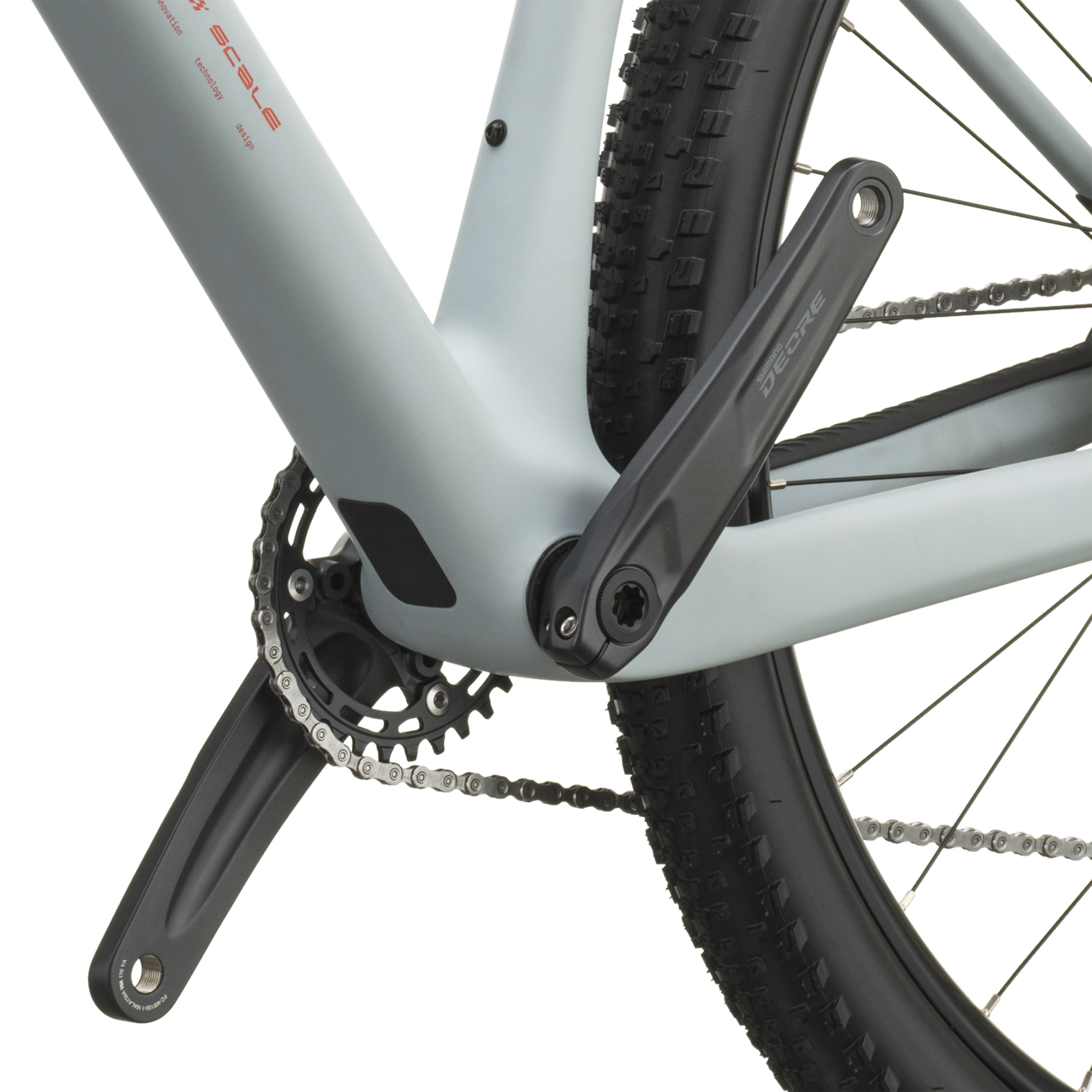

Crankset
Shimano FC-MT520, 32T -
BB-Set
Shimano BB-MT500 PF -
Chain
Shimano CN-M6100 -
Cassette
Shimano Deore CS-M6200, 10-51T -
Brakes
Shimano BR-MT200 2-Piston -
Front Disc Rotor
Shimano SM-RT10 CL, 180mm -
Rear Disc Rotor
Shimano SM-RT10 CL, 160mm -
Grips
Syncros Performance XC -
Handlebar
Syncros Alloy 6061, T shape Flat, 9°, 740mm -
H'stem
Syncros Alloy 6061, oversized 31.8mm, 1 1/8", 6° angle -

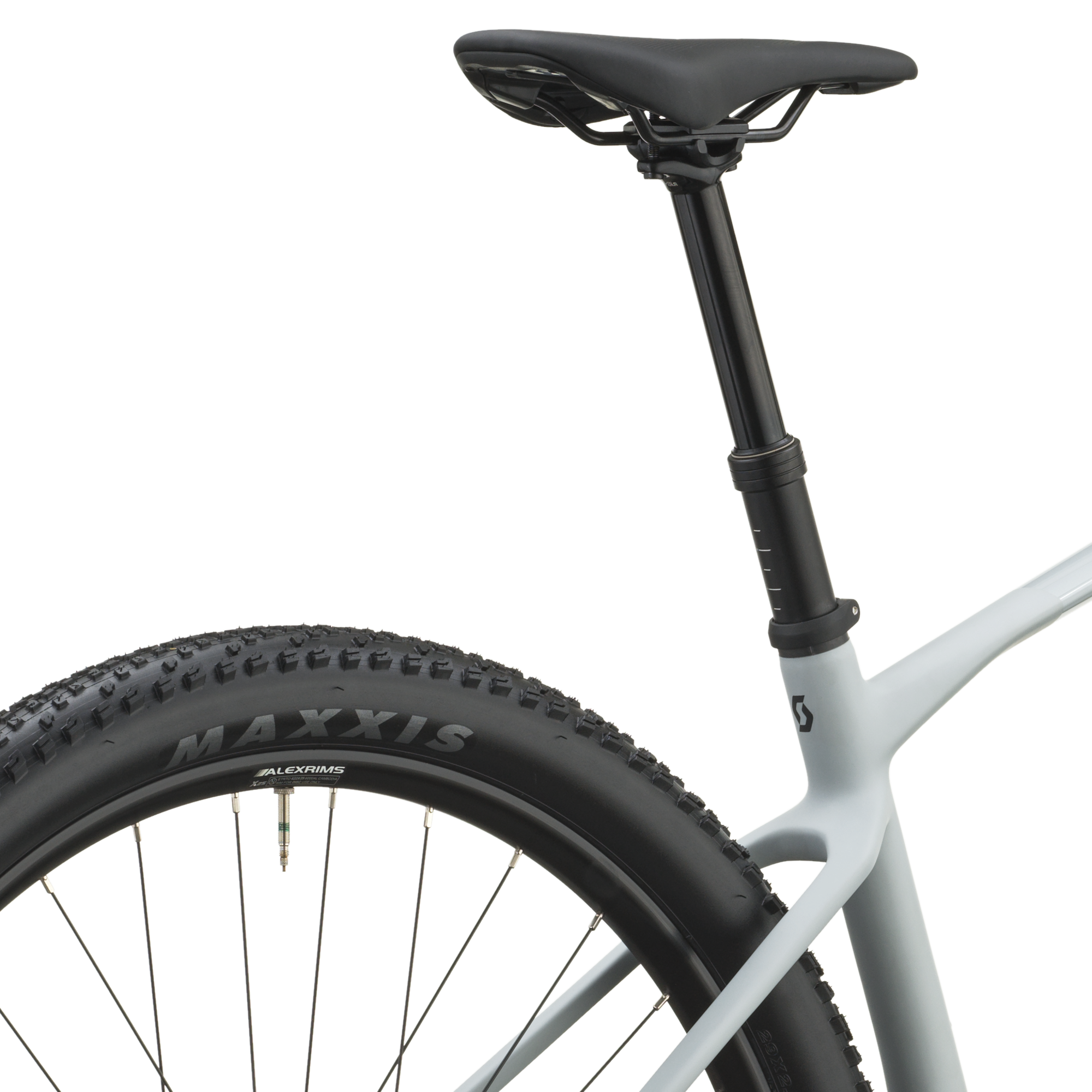

Seatpost
Syncros dropper post SP-M302-AL2, 31.6mm -
Seat
Syncros Belcarra R 2.5 -
Headset
Syncros - Acros angle adjust & cable routing HS system, stainless, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB -
Front Hub
Formula CL-811, 15x110mm -
Rear Hub
Formula FCL-548M, 148x12mm, Micro Spline -
Spokes
Stainless Black -
Front Rim
Alex Rims X25 Disc 32H, Tubeless ready -
Rear Rim
Alex Rims X25 Disc 32H, Tubeless ready -
Front Tire
Maxxis Rekon Race 29x2.4", 60TPI, Tubeless Ready, EXO -
Rear Tire
Maxxis Rekon Race 29x2.4", 60TPI, Tubeless Ready, EXO -
Approx weight in KG
12.6 Tubless -
Approx weight in LBS
27.78 Tubless -
Max. System Weight
130kg
The overall weight includes the bike, the rider, the equipment and possible additional luggage.
用途
No Radar Chart Available Currently
几何结构
技术
Design
The new Scale’s design was uncompromisingly subjected to our pursuit of perfection and drive for pure efficiency, strictly following the guiding principle of “Form follows Function”. In our search for the ultimate, yet most simple construction, we’ve centered the design around the essentials by balancing the bike’s DNA in order to create a whole new breed of XC bike. The result is a straightforward and clear design, which provides the all-new Scale with its distinctive character and aggressive look: a bike that proudly shows off its characteristics.
